Without Navigation System

SRS components are located in this area. Review the SRS components locations, precautions and procedures in AIR BAG RESTRAINT SYSTEMS before performing repairs or service.

1. Make sure you have the anti-theft codes for the radio, then write down the frequencies for the radio's preset buttons.
2. Remove the center panel (see CENTER CONSOLE REMOVAL/INSTALLATION ).
NOTE: The illustration shows the EX model.

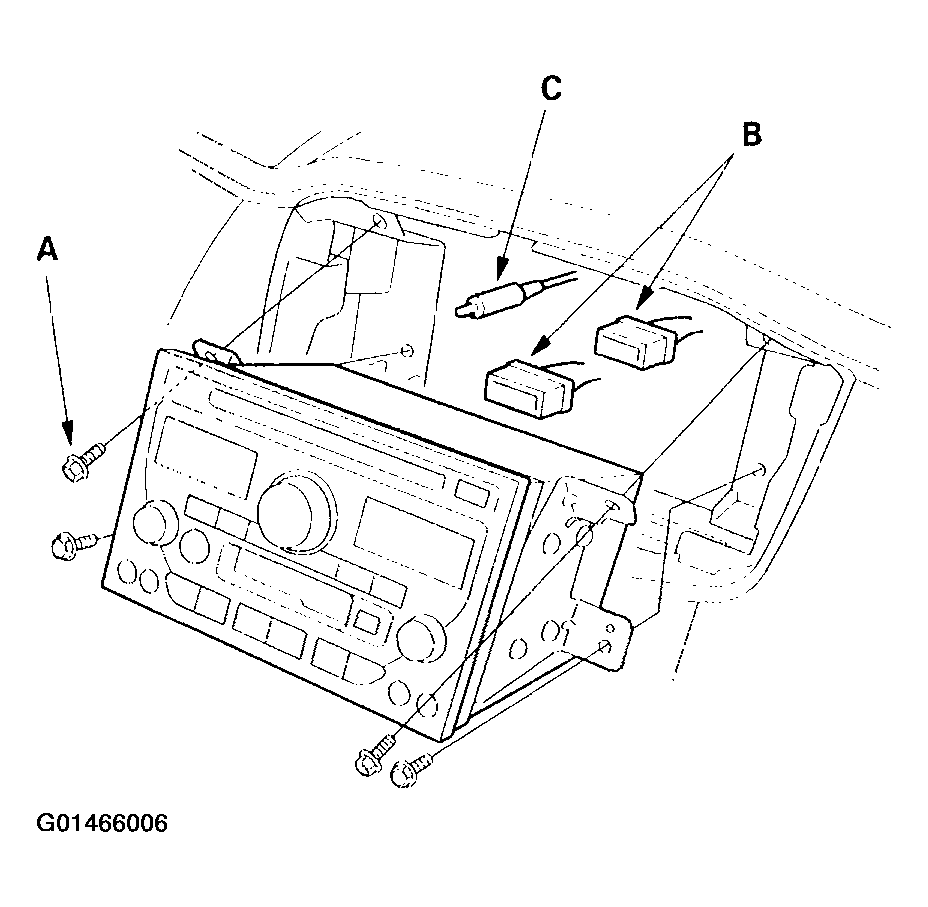

Fig 1: Removing The Bolts
Courtesy of AMERICAN HONDA MOTOR CO., INC.
3. Remove the bolts (A).
4. Disconnect the audio unit connector (B), the optional accessory connector (if equipped), and the antenna lead (C) from the audio unit.
NOTE: The illustration shows the EX model.

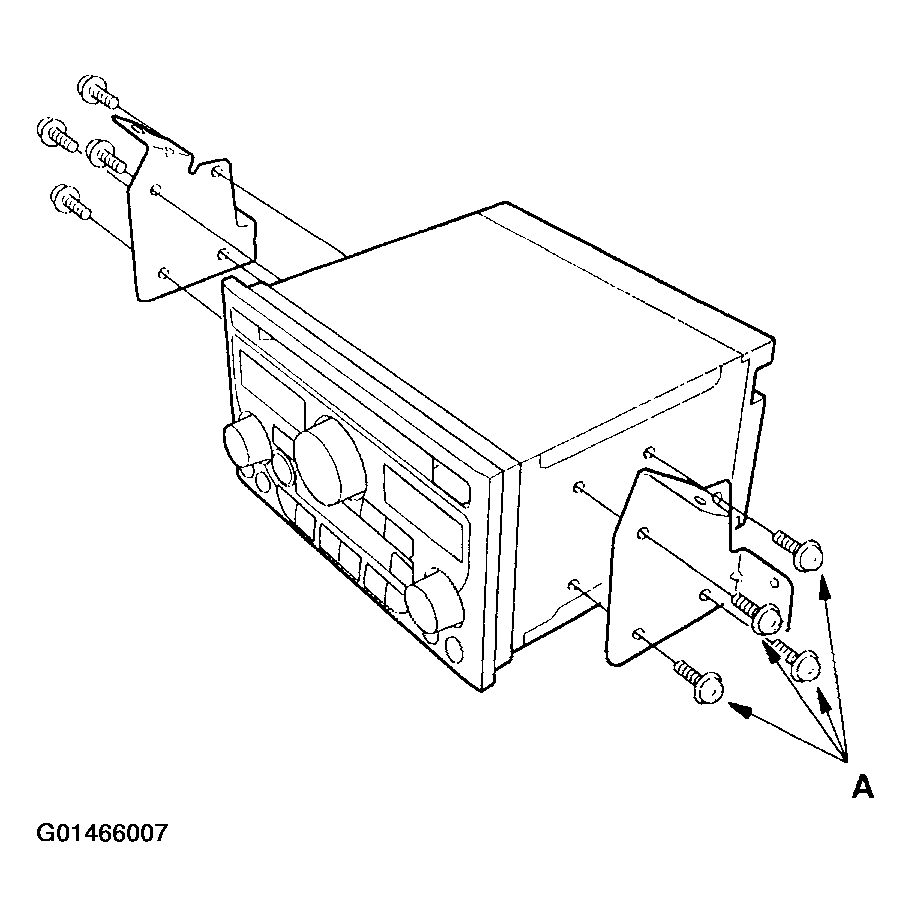

Fig 2: Removing The Screws From The Audio Unit
Courtesy of AMERICAN HONDA MOTOR CO., INC.
5. Remove the screws (A) from the audio unit.
6. Install the audio unit in the reverse order of removal, and note these items:
   • Make sure the audio unit connectors are plugged in properly, and the antenna lead is connected properly.
   • Reset the power window control unit (see RESETTING THE POWER WINDOW CONTROL UNIT ).
   • Enter the anti-theft codes for the radio, then enter the customer's radio station presets and set the clock.
