Display Unit Removal/Installation

  1. Remove the center panel (see CENTER PANEL REMOVAL/INSTALLATION ).
  2. Remove the display unit (A).

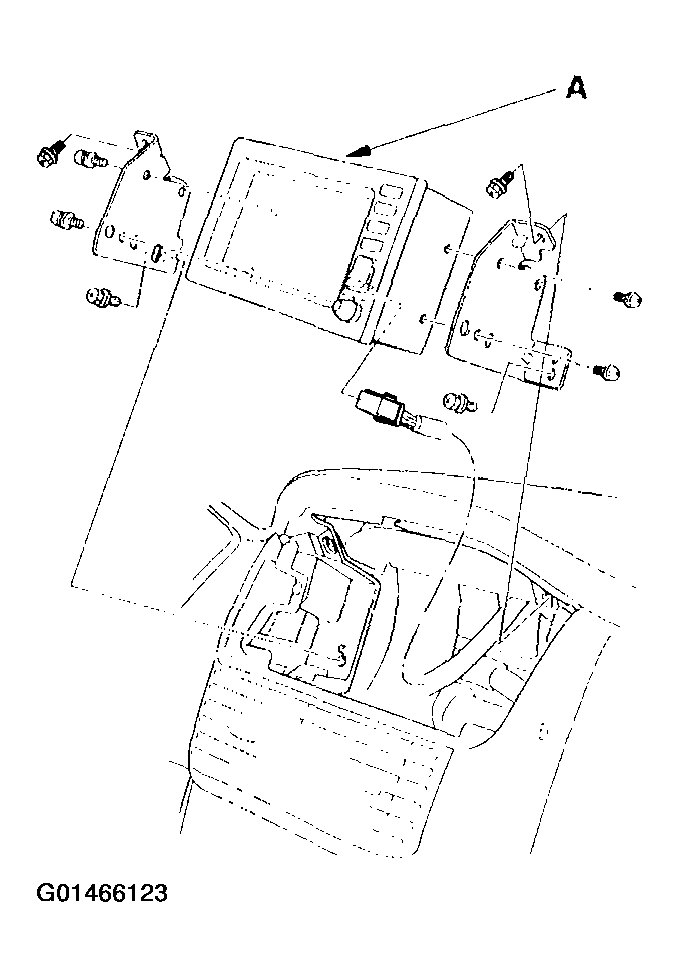

    Fig 1: Removing The Display Unit
    G01466123Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install in the reverse order of removal.
