Component Locations

For component locations, see Fig 1.

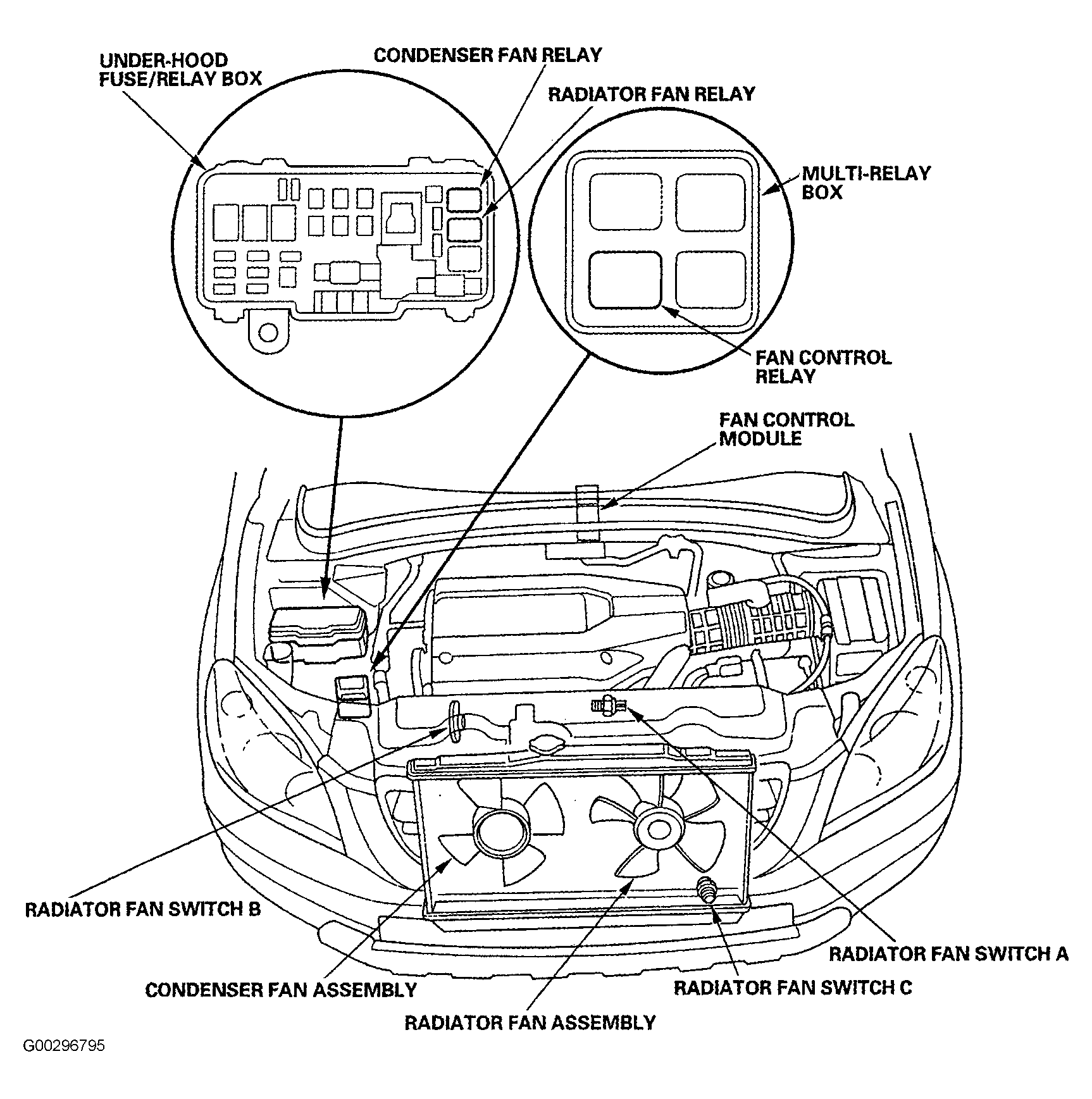

Fig 1: Locating Cooling Fan Components
G00296795Courtesy of AMERICAN HONDA MOTOR CO., INC.
