Oil Filter Feed Pipe Replacement

Remove the oil filter (see Engine Oil Filter Replacement ).
Remove the oil filter feed pipe.

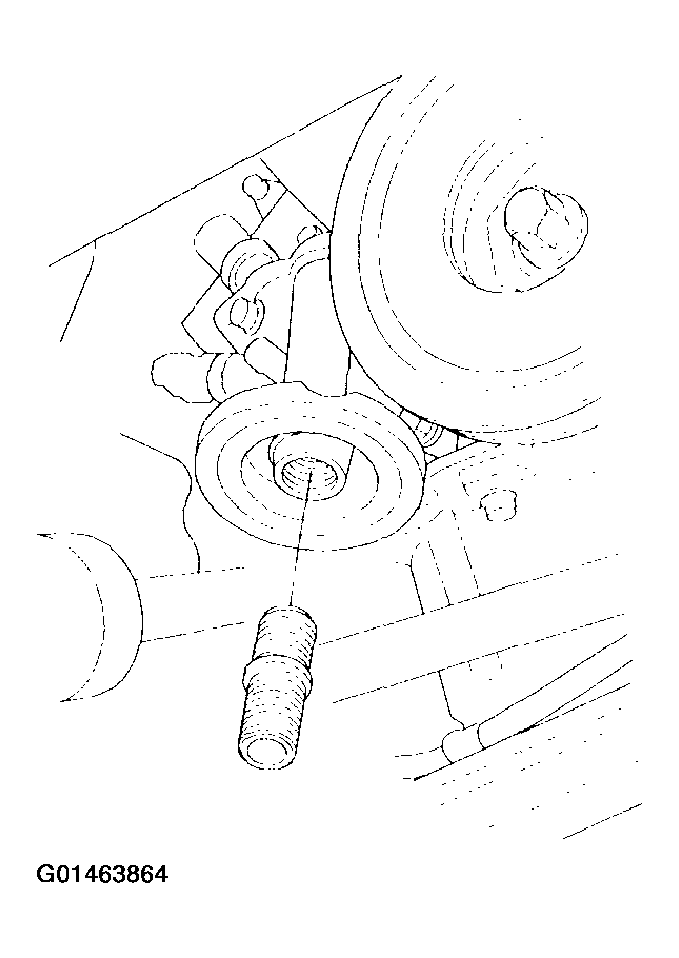

Fig 1: Removing The Oil Filter Feed Pipe
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the two 20 x 1.5 mm nuts (A) onto the new oil filter feed pipe. Hold one nut with wrench, then tighten the other nut.

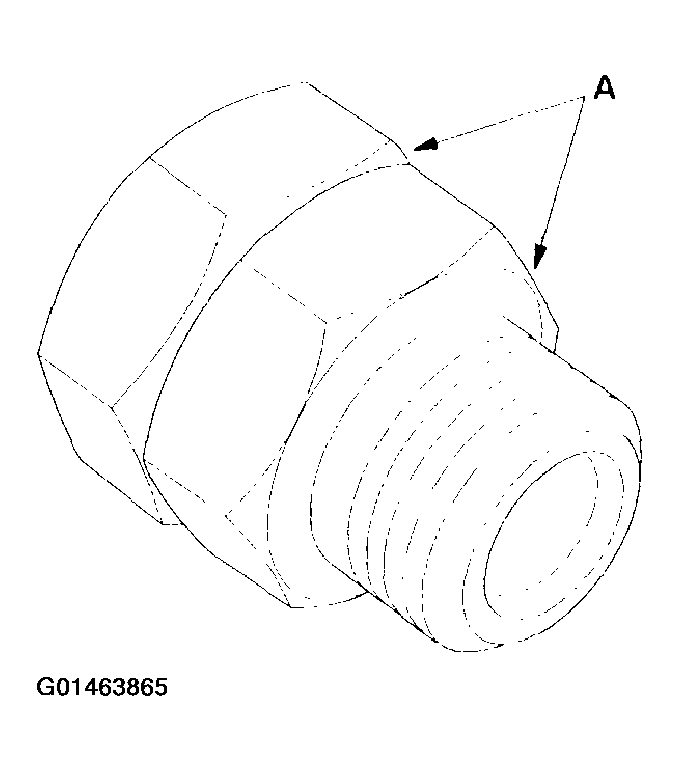

Fig 2: Installing The Two 20 X 1.5 Mm Nuts Onto The New Oil Filter Feed Pipe
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Tighten the oil filter feed pipe to the block to 49 N.m (5.0 kgf.m, 36 lbf.ft), then remove the nuts from the oil filter feed pipe.
Install the oil filter (see Engine Oil Filter Replacement ).
