Idle Air Control (IAC) Valve

To maintain the proper idle speed, the IAC valve changes the amount of air bypassing the throttle body in response to an electrical signal from the PCM.

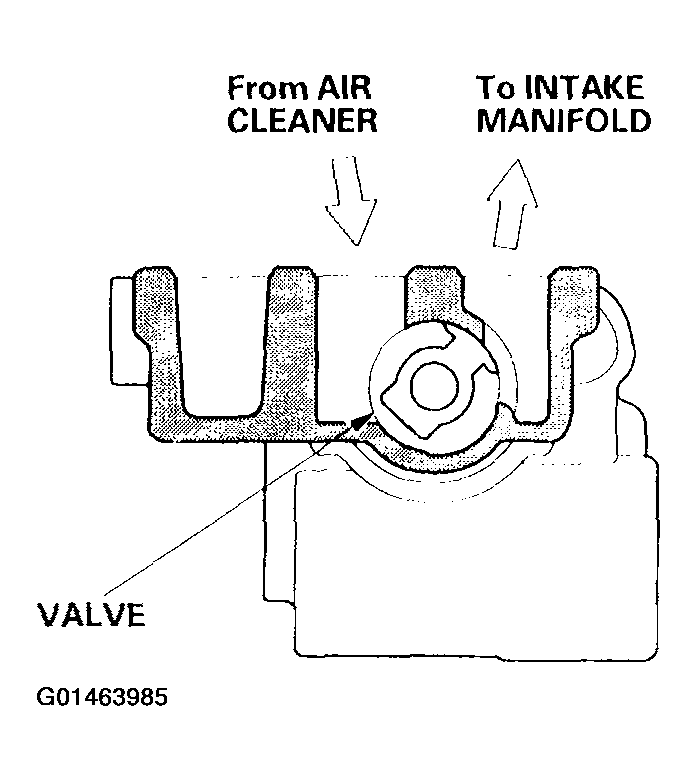

Fig 1: Identifying Idle Air Control Valve
G01463985Courtesy of AMERICAN HONDA MOTOR CO., INC.
