Climate Control Unit Removal & Installation
- Remove the center front covers and the center lower cover (see CENTER CONSOLE REMOVAL/INSTALLATION
).

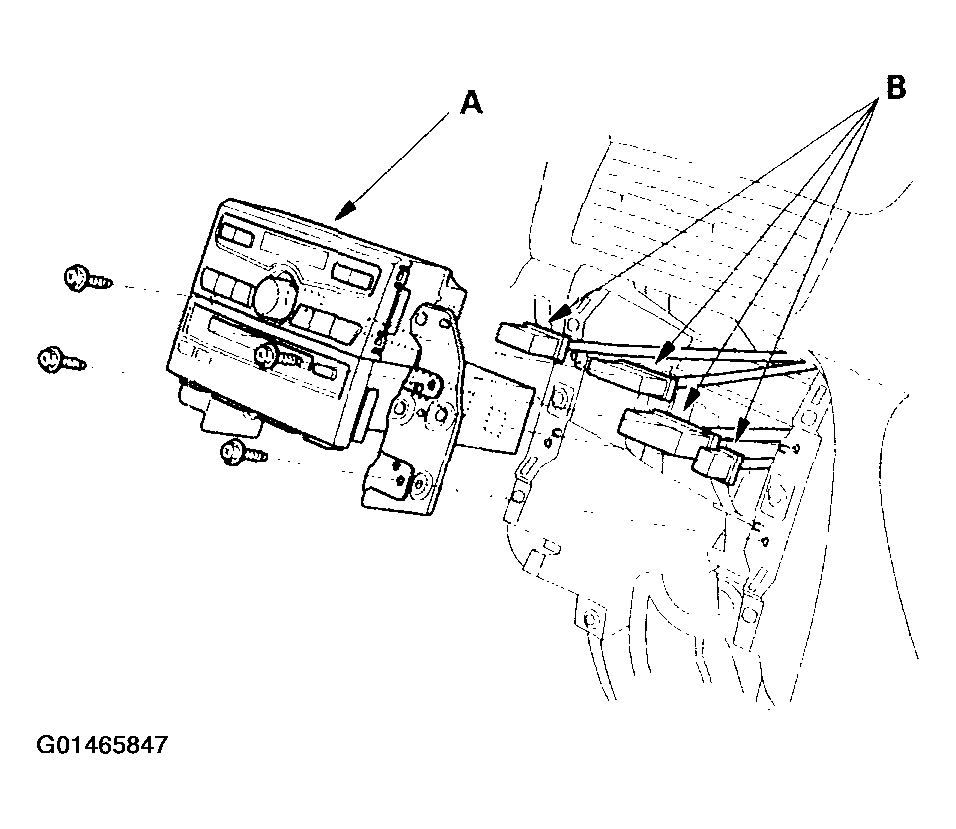

- Remove the screws, and remove the climate control unit (A) with the brackets from the dashboard, then disconnect the connectors (B).
Courtesy of AMERICAN HONDA MOTOR CO., INC.

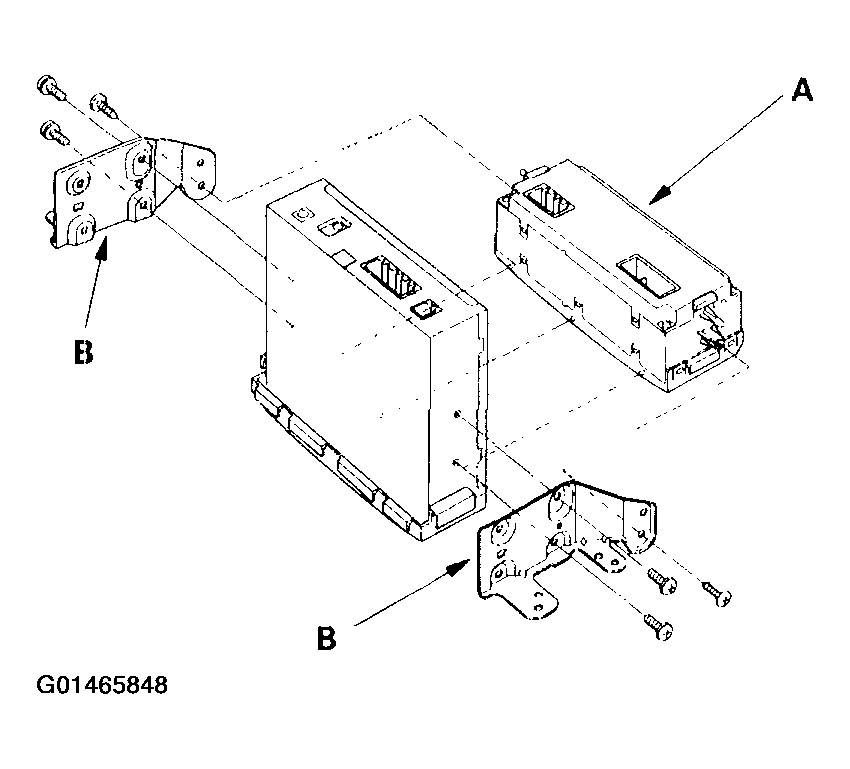

- Remove the screws and the climate control unit (A) from the brackets (B).
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Install the control unit in the reverse order of removal. After installation, operate the control unit controls to see whether it works properly.
- Run the self-diagnosis function to confirm that there are no problems in the system (see RUNNING THE SELF-DIAGNOSIS FUNCTION
).
