Mode Control Motor Replacement

  1. Disconnect the 7P connector (A) from the mode control motor (B). Remove the rods (C) of the mode control motor from the mode control motor linkage (D) and the mode control linkage (E). Remove the self-tapping screws and the mode control motor from the heater unit.

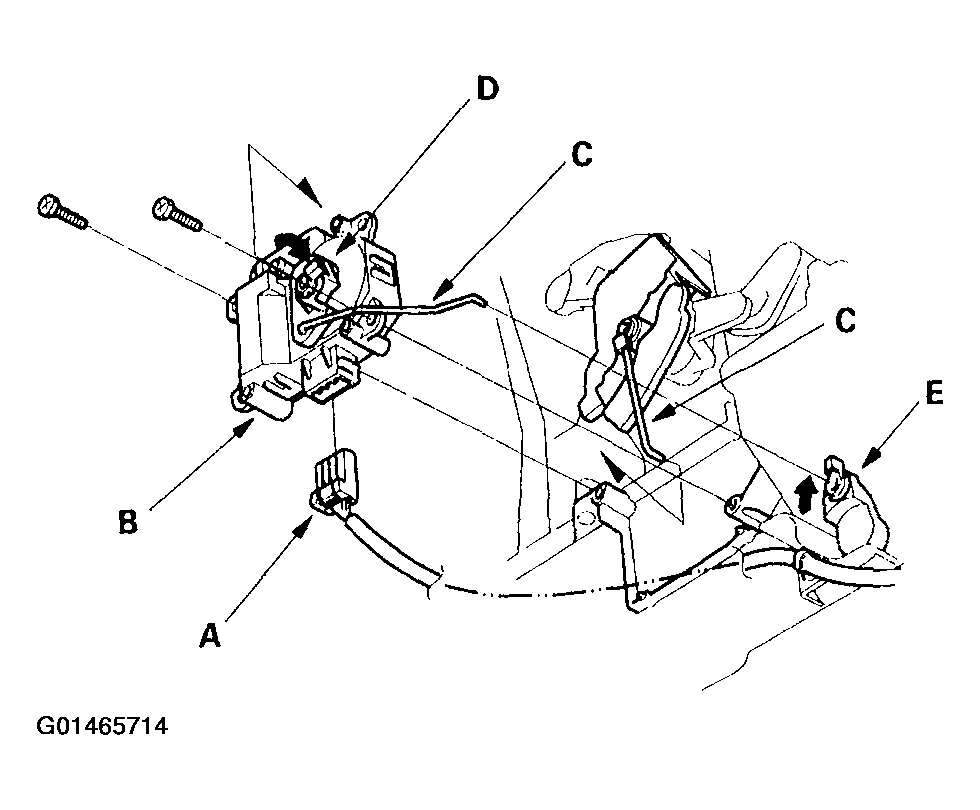

    Fig 1: Removing The Self-Tapping Screws & The Mode Control Motor From The Heater Unit
    G01465714Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Install the motor in the reverse order of removal. After installation, make sure the motor runs smoothly.
