Engine Oil Replacement
- Warm up the engine.

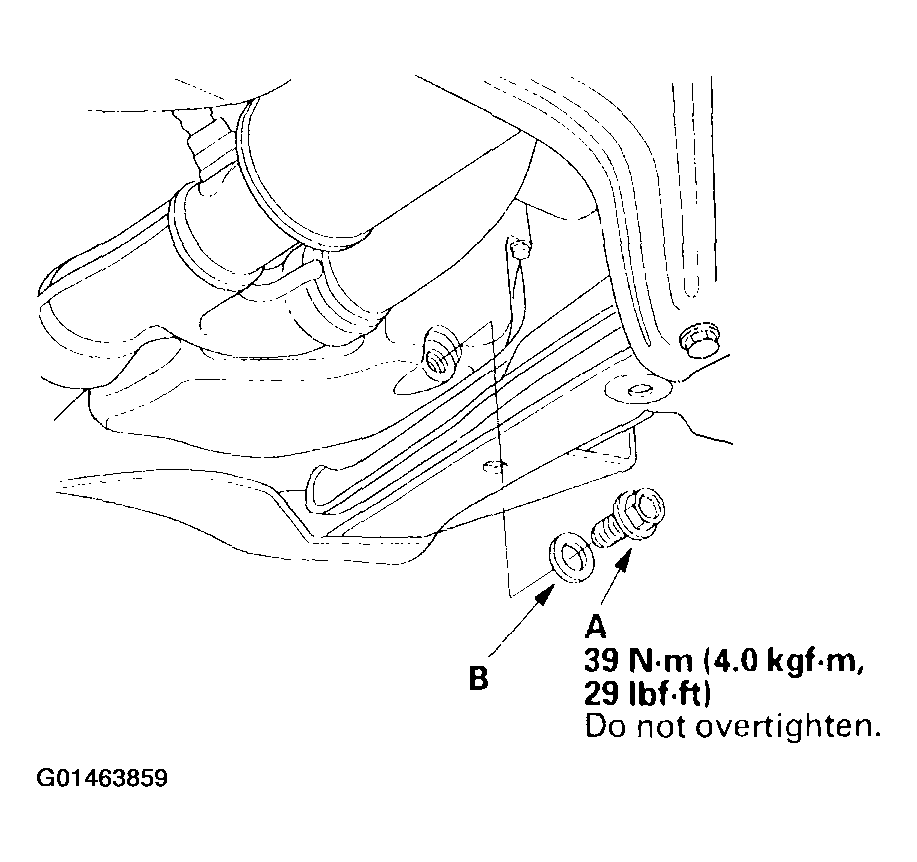

- Remove the drain bolt (A), and drain the engine oil.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Reinstall the drain bolt with a new washer (B).
- Refill with the recommended oil
.
- Capacity
- At Oil Change:
4.4 l (4.6 US qt)
- At Oil Change Including Filter:
4.8 l (5.1 US qt)
- After Engine Overhaul:
5.4 l (5.7 US qt)
- Run the engine for more than 3 minutes, then check for oil leakage.
