EGR Valve Replacement

Remove the intake manifold cover (see INTAKE MANIFOLD REMOVAL & INSTALLATION ).
Disconnect the EGR valve 6P connector.
Remove the EGR valve (A).

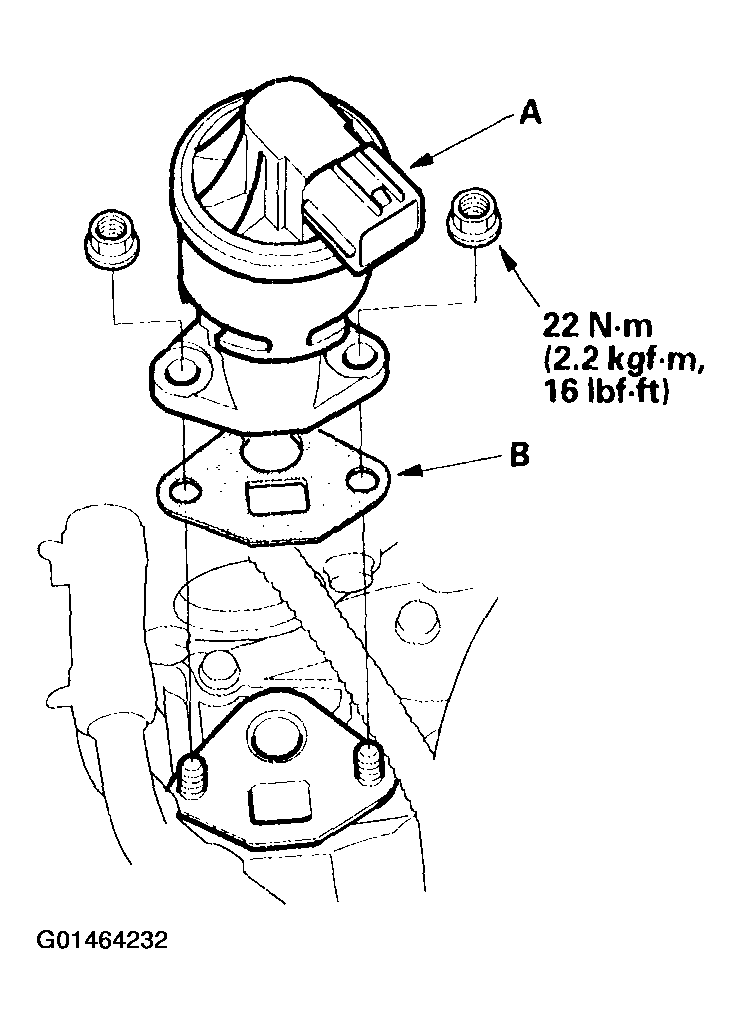

Fig 1: Removing The EGR Valve
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the valve in the reverse order of removal with a new gasket (B).
Install the intake manifold cover (see INTAKE MANIFOLD REMOVAL & INSTALLATION ).
