Dash Board

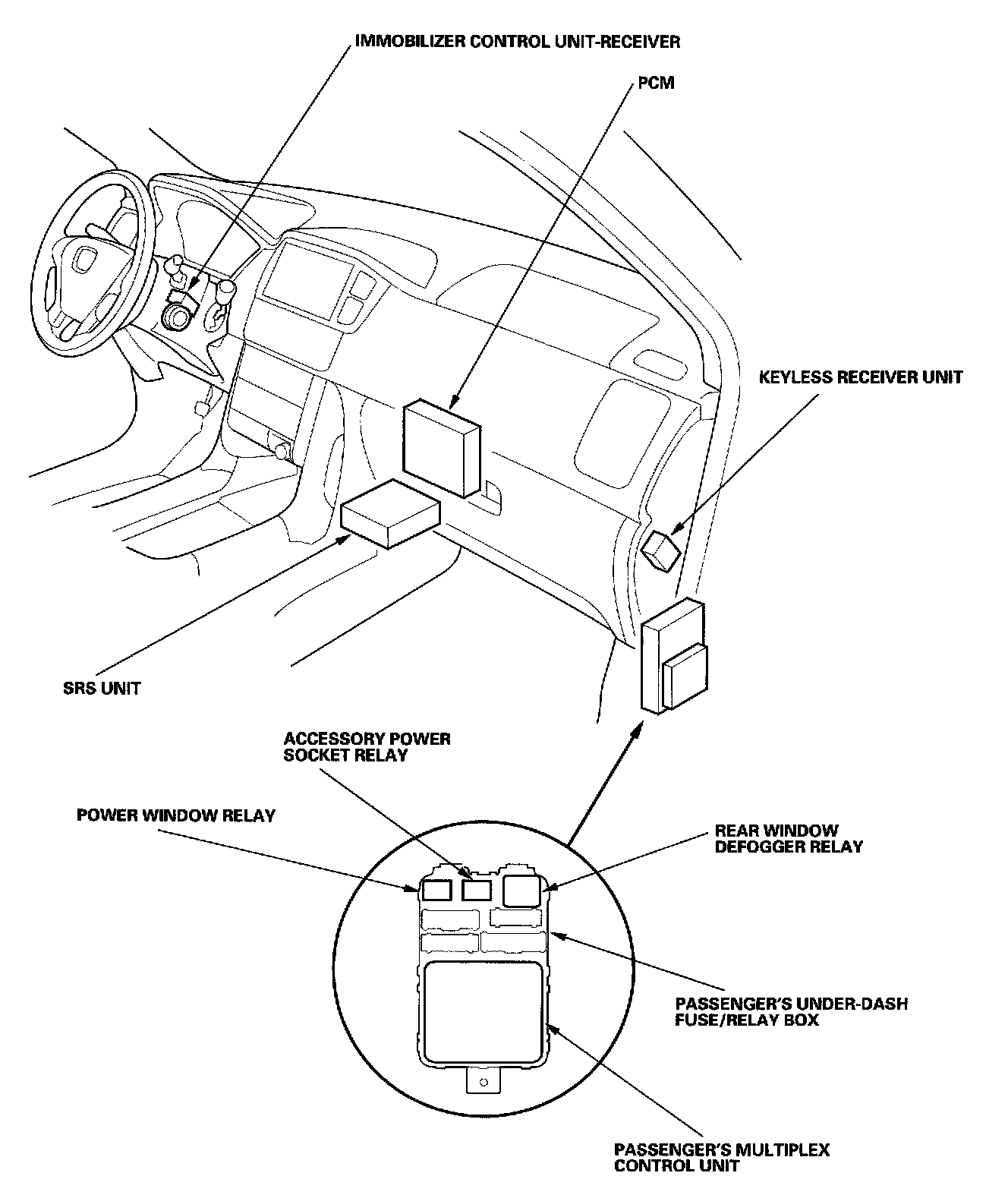

Relay And Control Unit Locations - Dashboard:

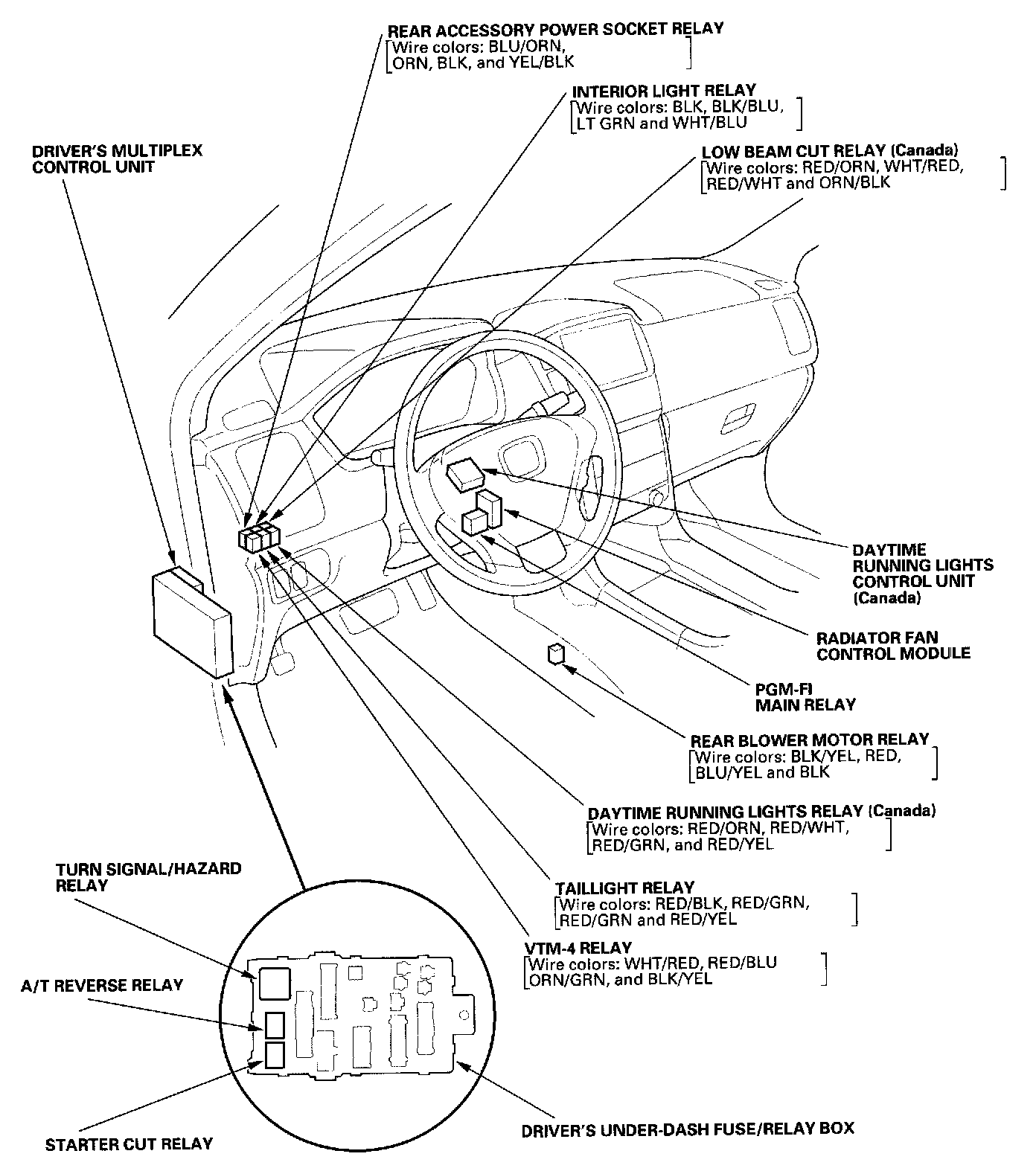

Relay And Control Unit Locations - Dashboard:

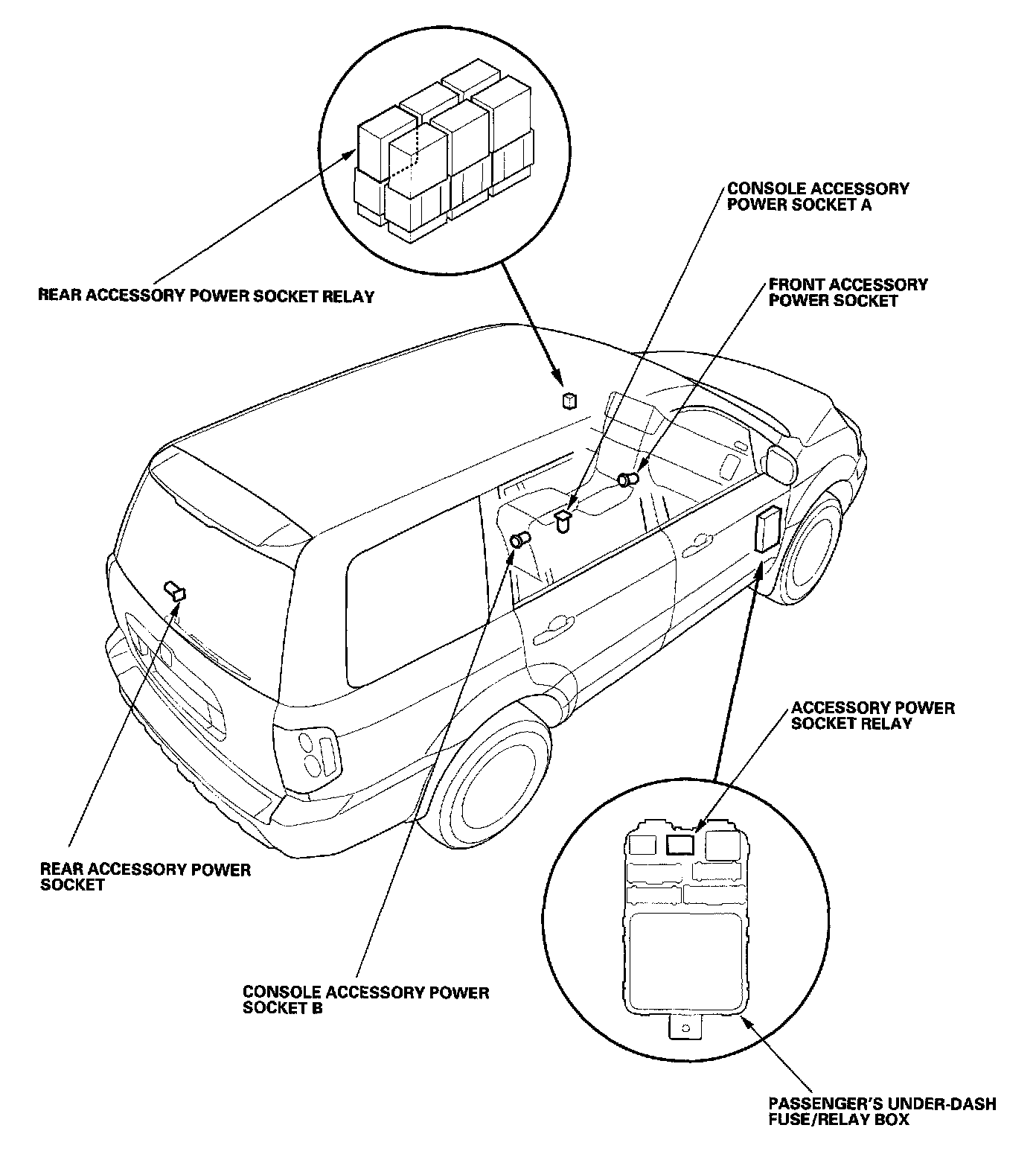

Accessory Power Sockets Component Location Index:

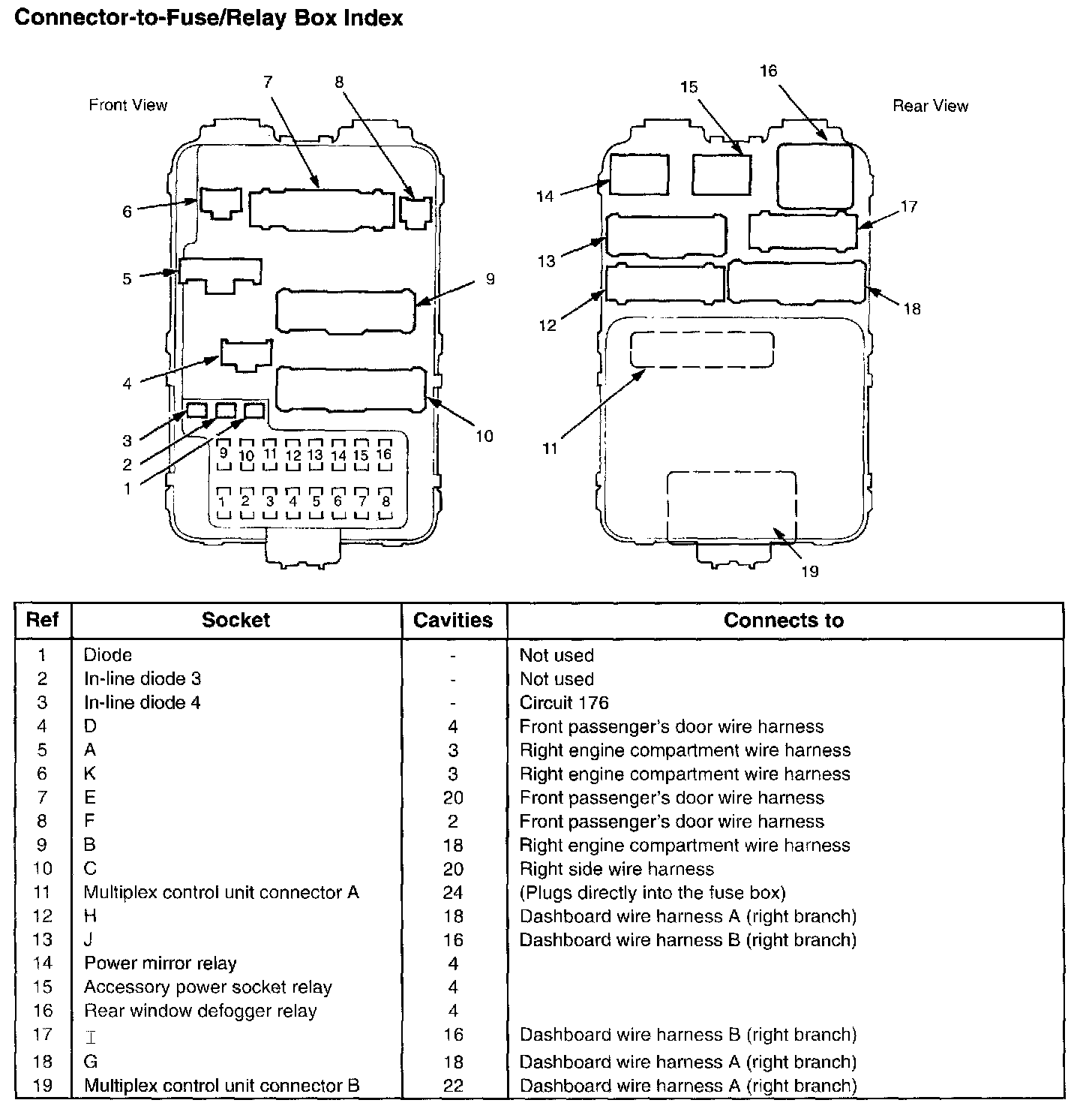

Driver's Under-dash Fuse/Relay Box:

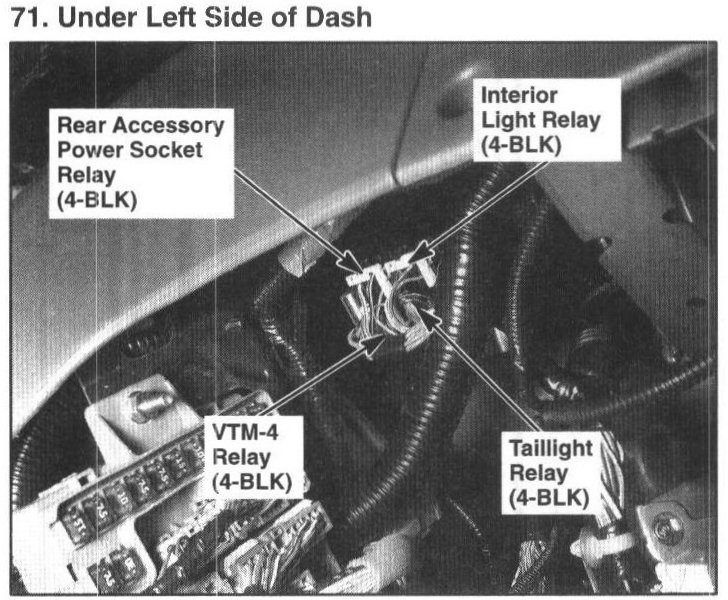

71. Under Left Side of Dash:
