ECM/PCM Electrical Connections

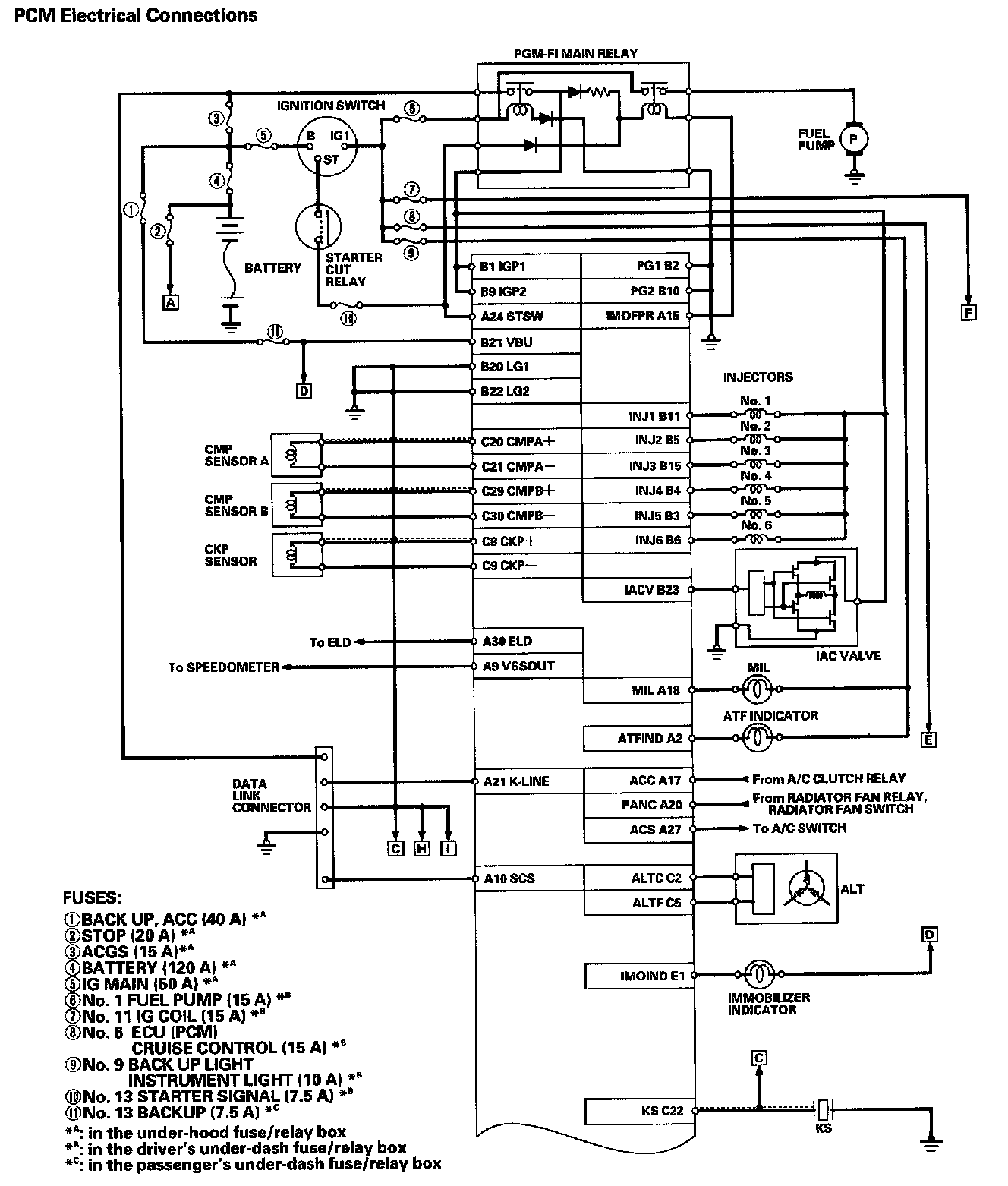

ECM/PCM Electrical Connections Diagram 11-13:

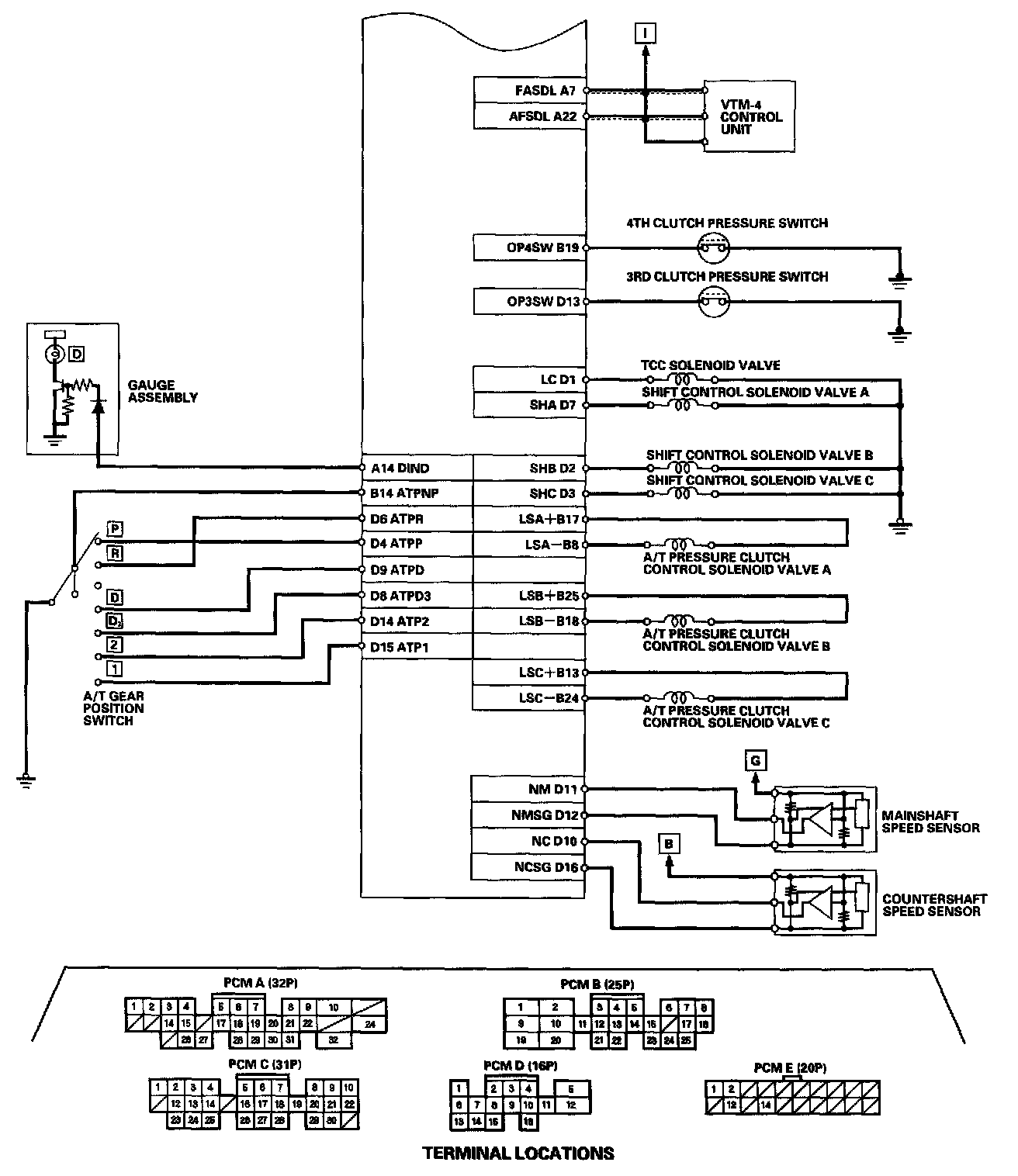

ECM/PCM Electrical Connections Diagram 11-14:

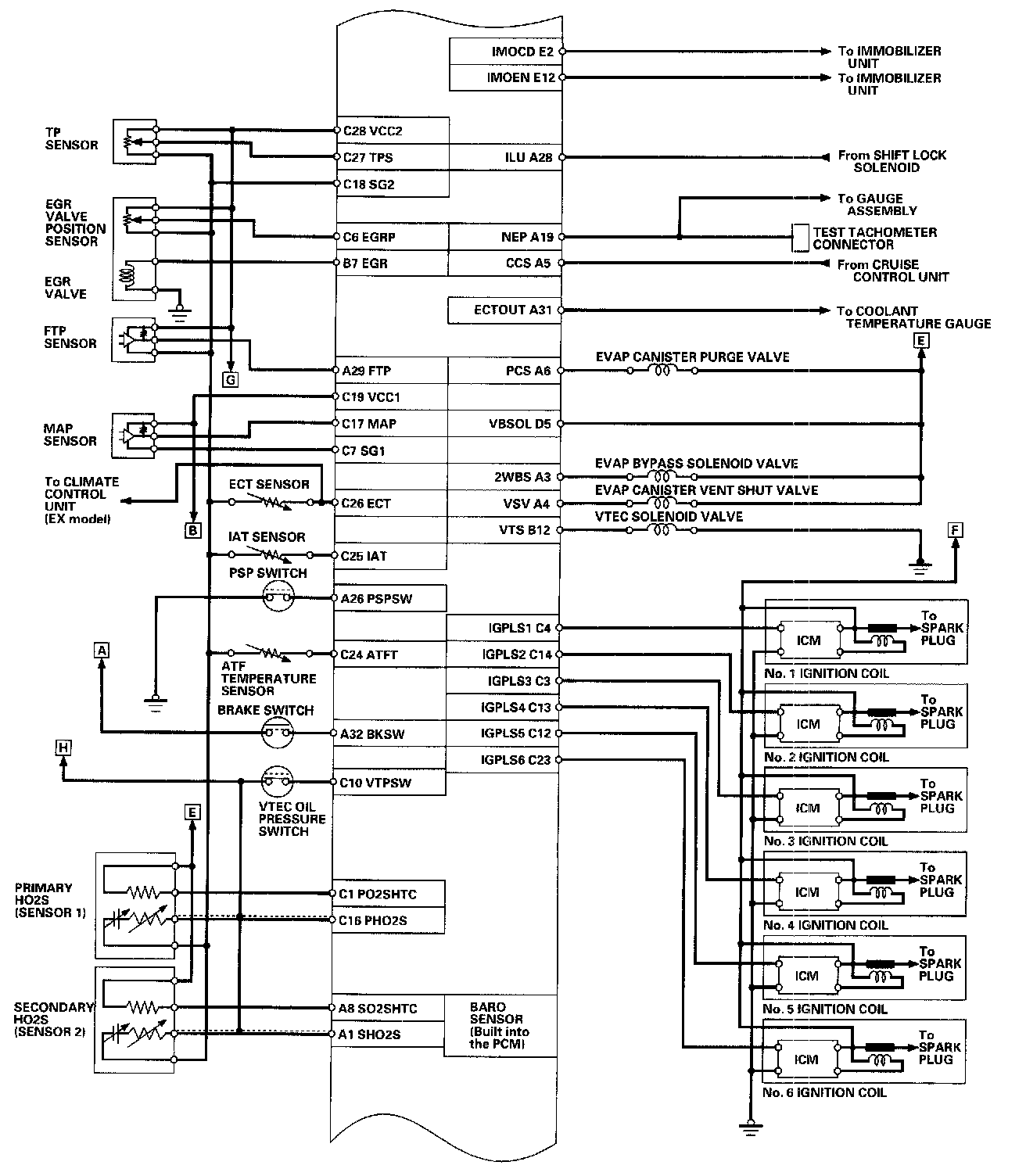

ECM/PCM Electrical Connections Diagram 11-15:
