Passenger's Under-Dash Fuse/Relay Box

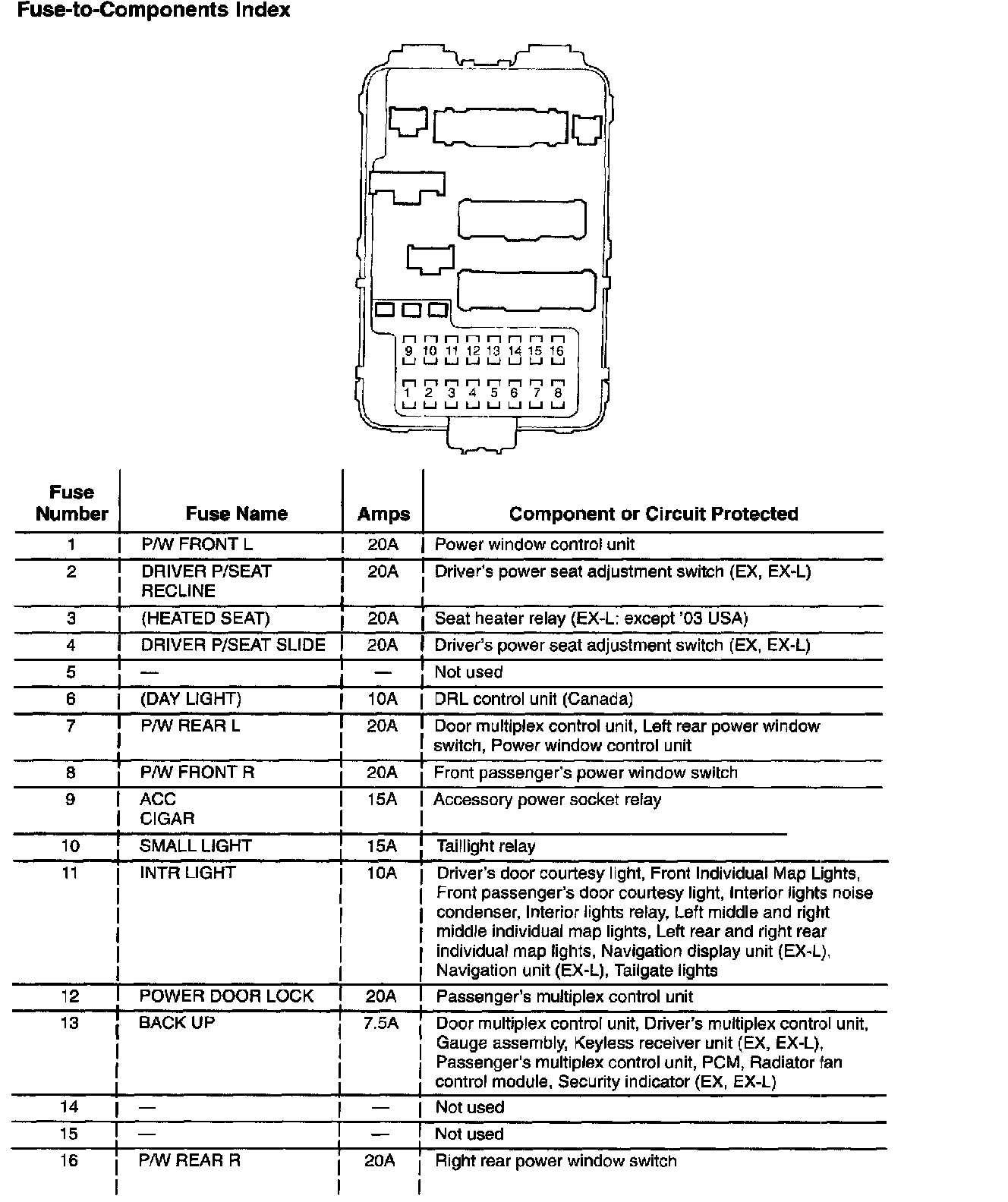

Passenger's Under-dash Fuse/Relay Box:



Passenger's Under-Dash Fuse/Relay Box:
