Relay Box Locations

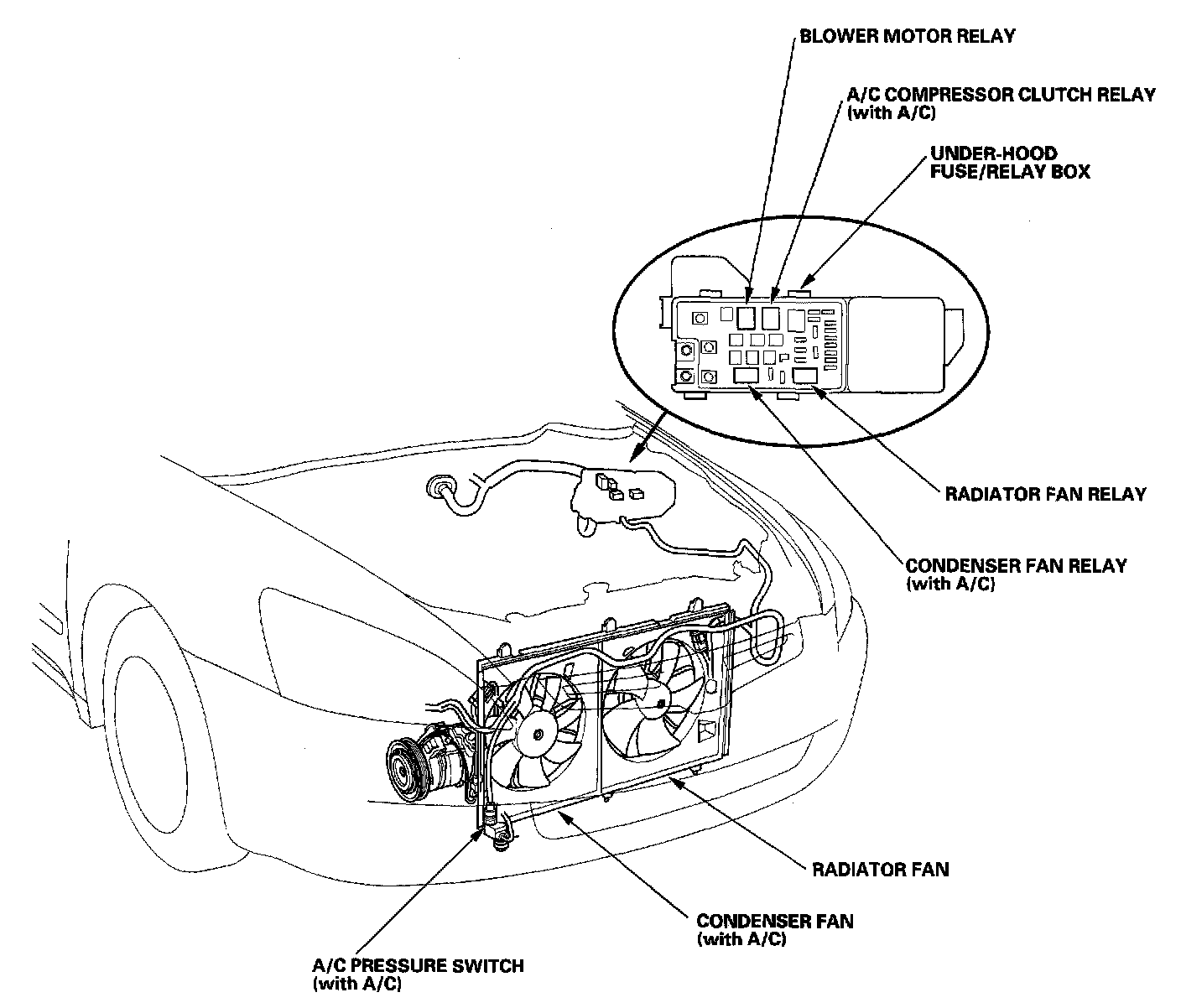

Heating/Air Conditioning Component Location Index:

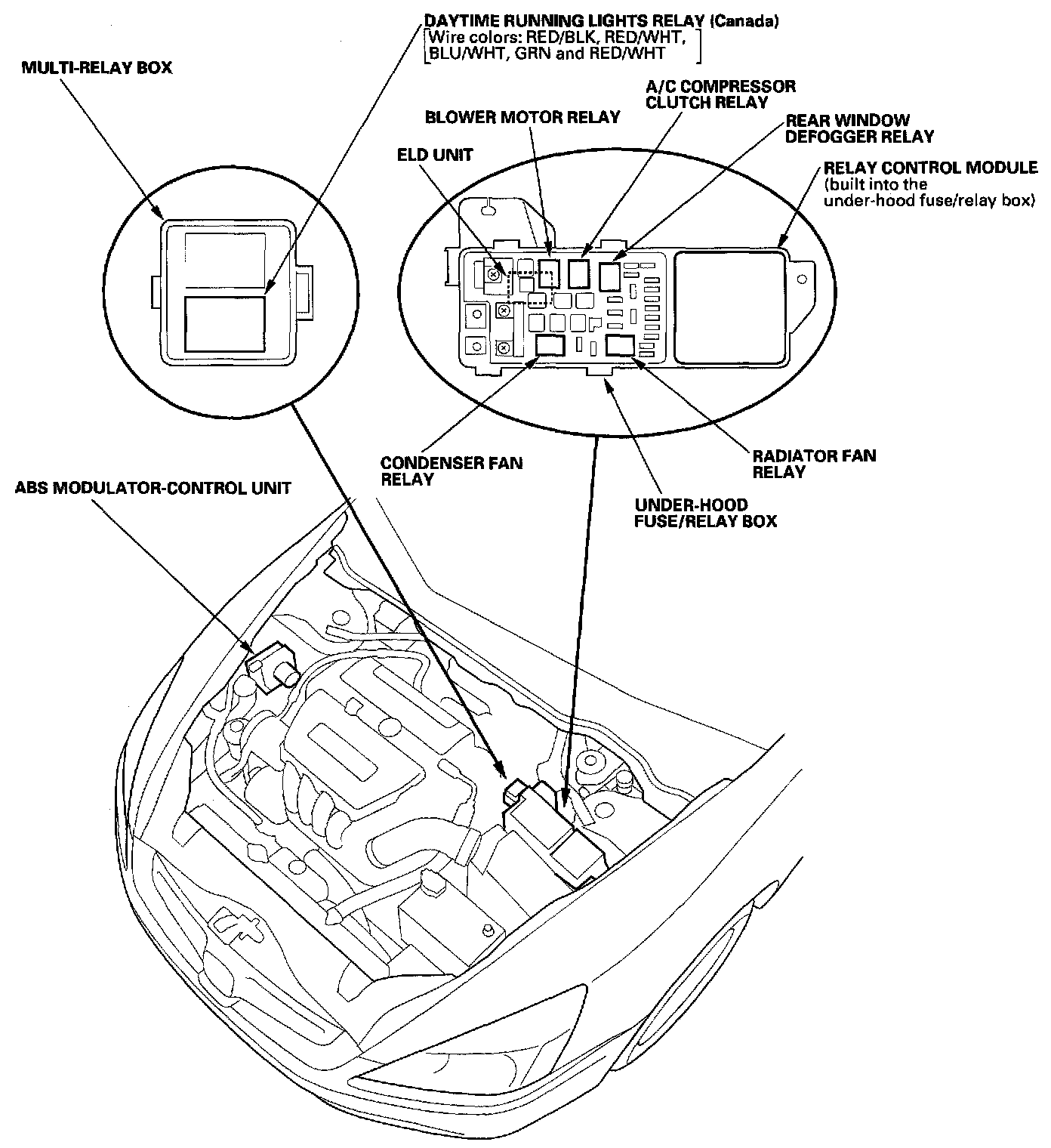

Relay And Control Unit Locations - Engine Compartment:

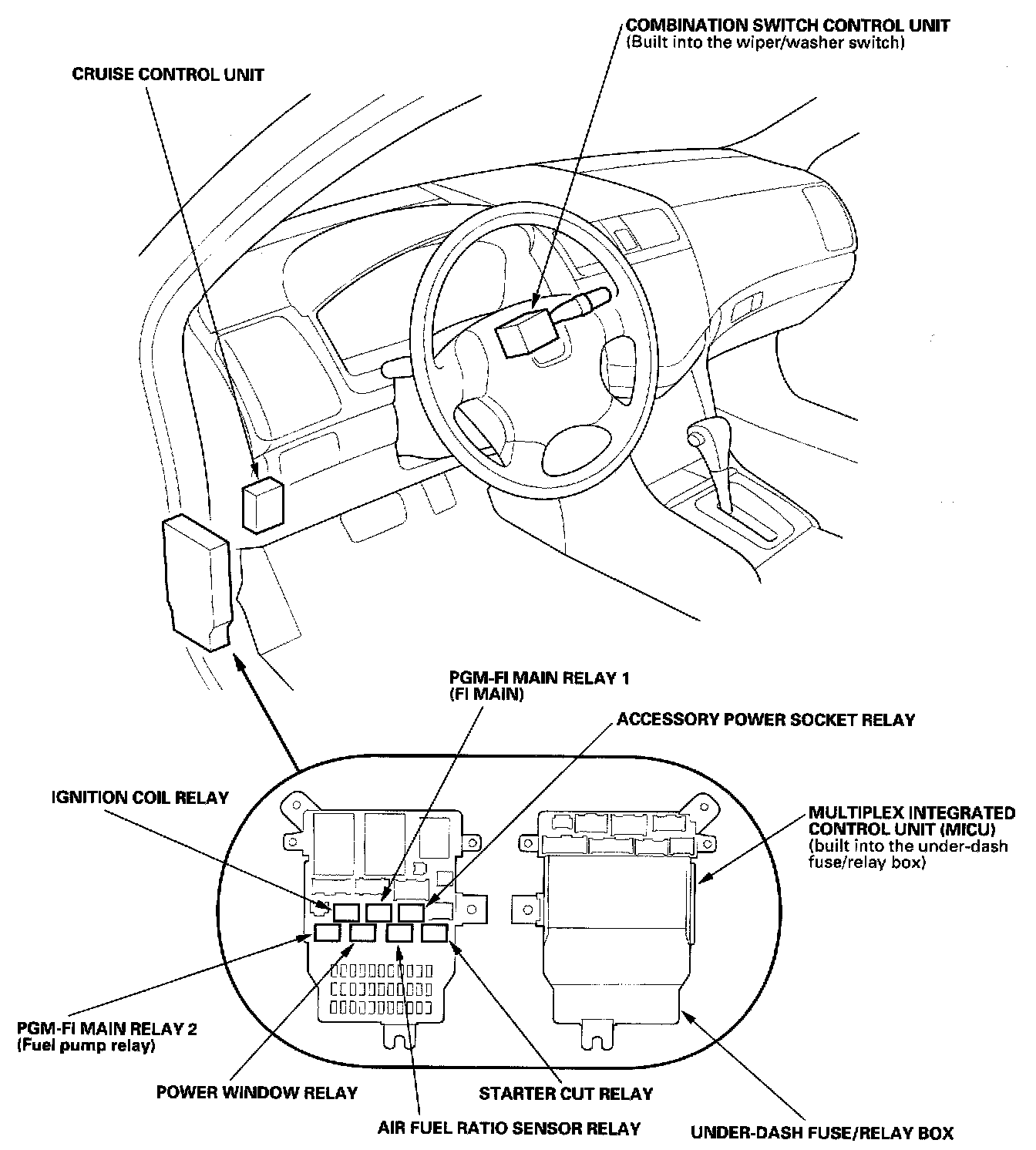

Relay And Control Unit Locations - Dashboard:

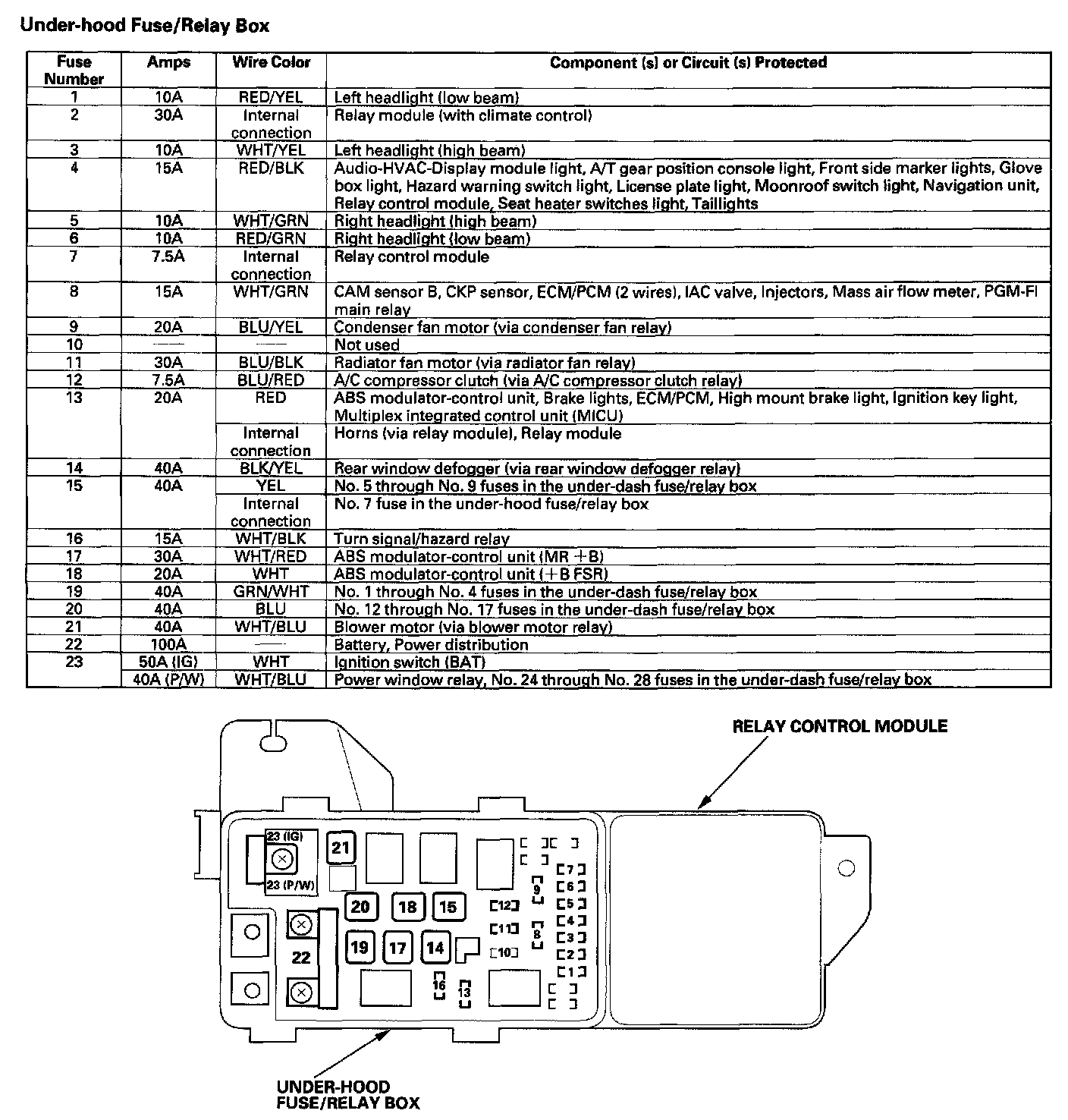

Under-hood Fuse/Relay Box:

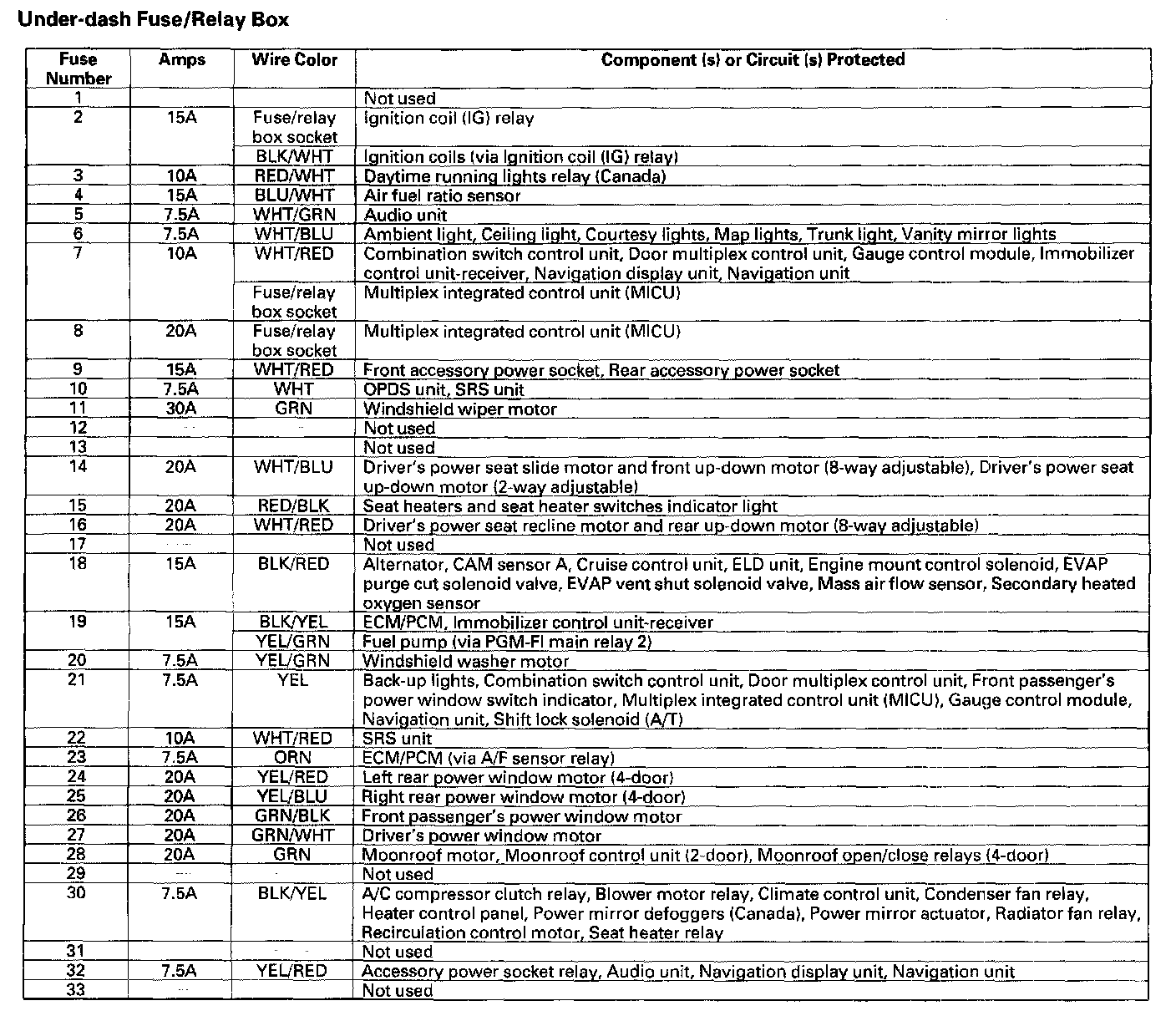

Under-dash Fuse/Relay Box:

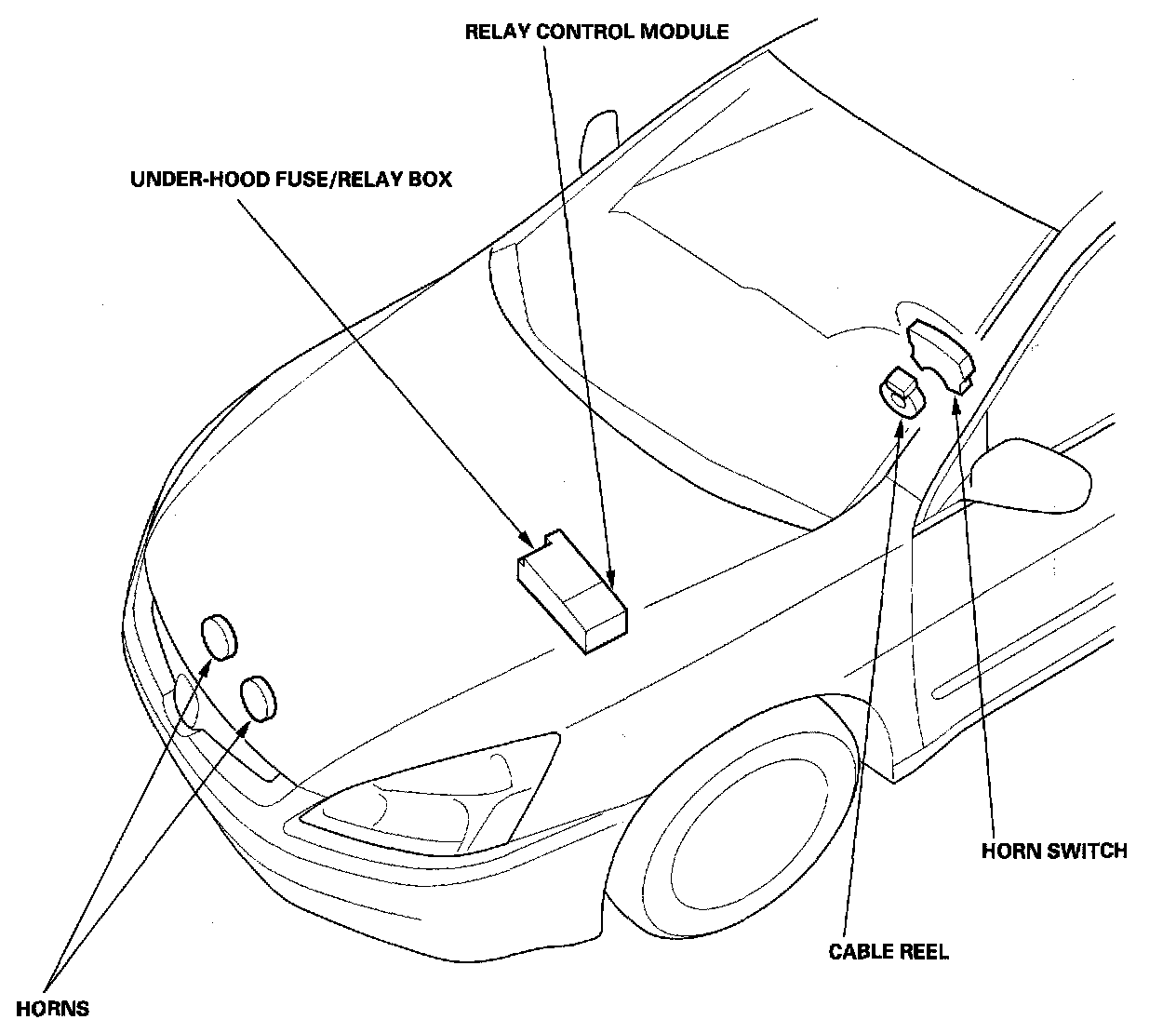

Horn Component Location Index:

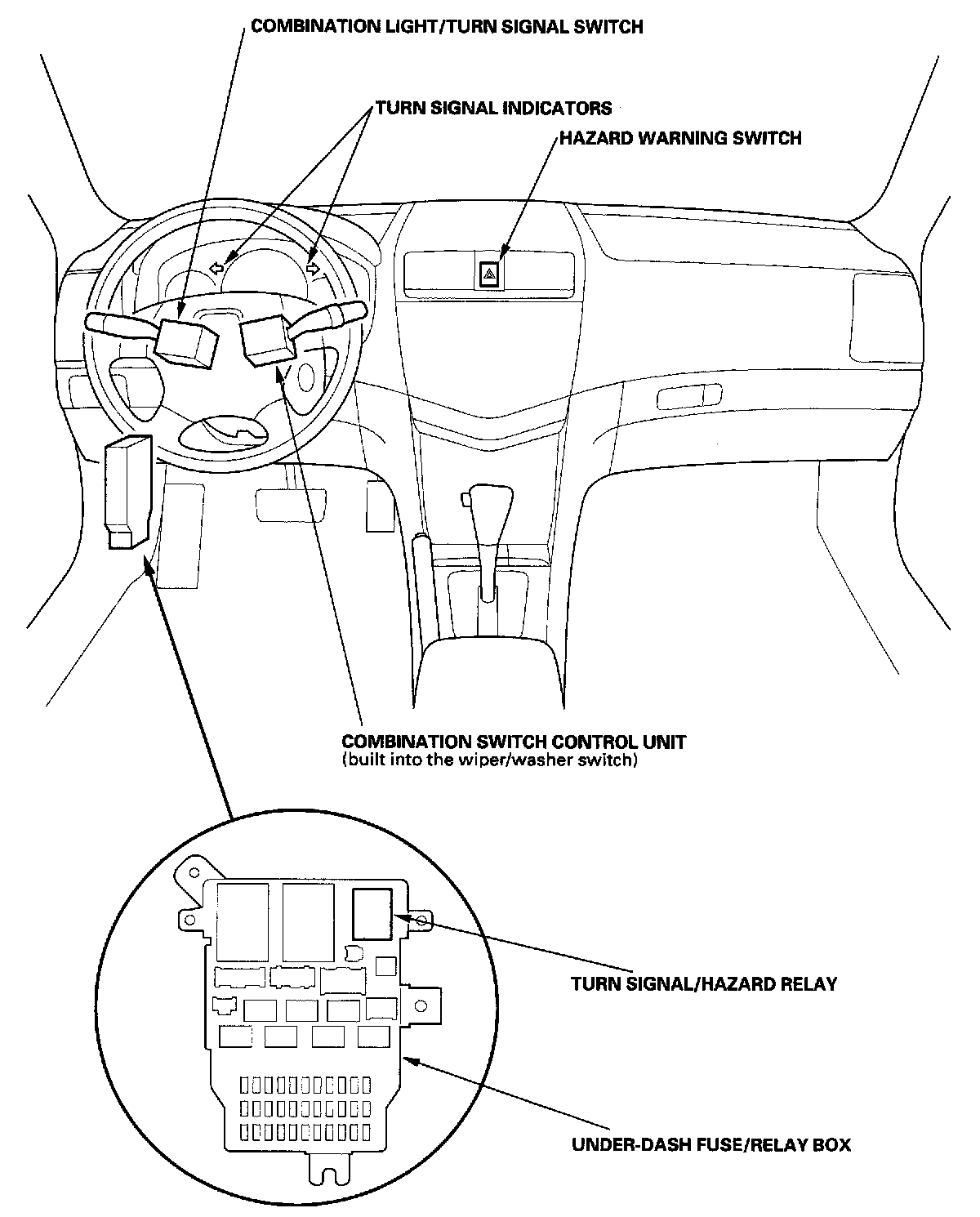

Turn Signal/Hazard Flasher Component Location Index:

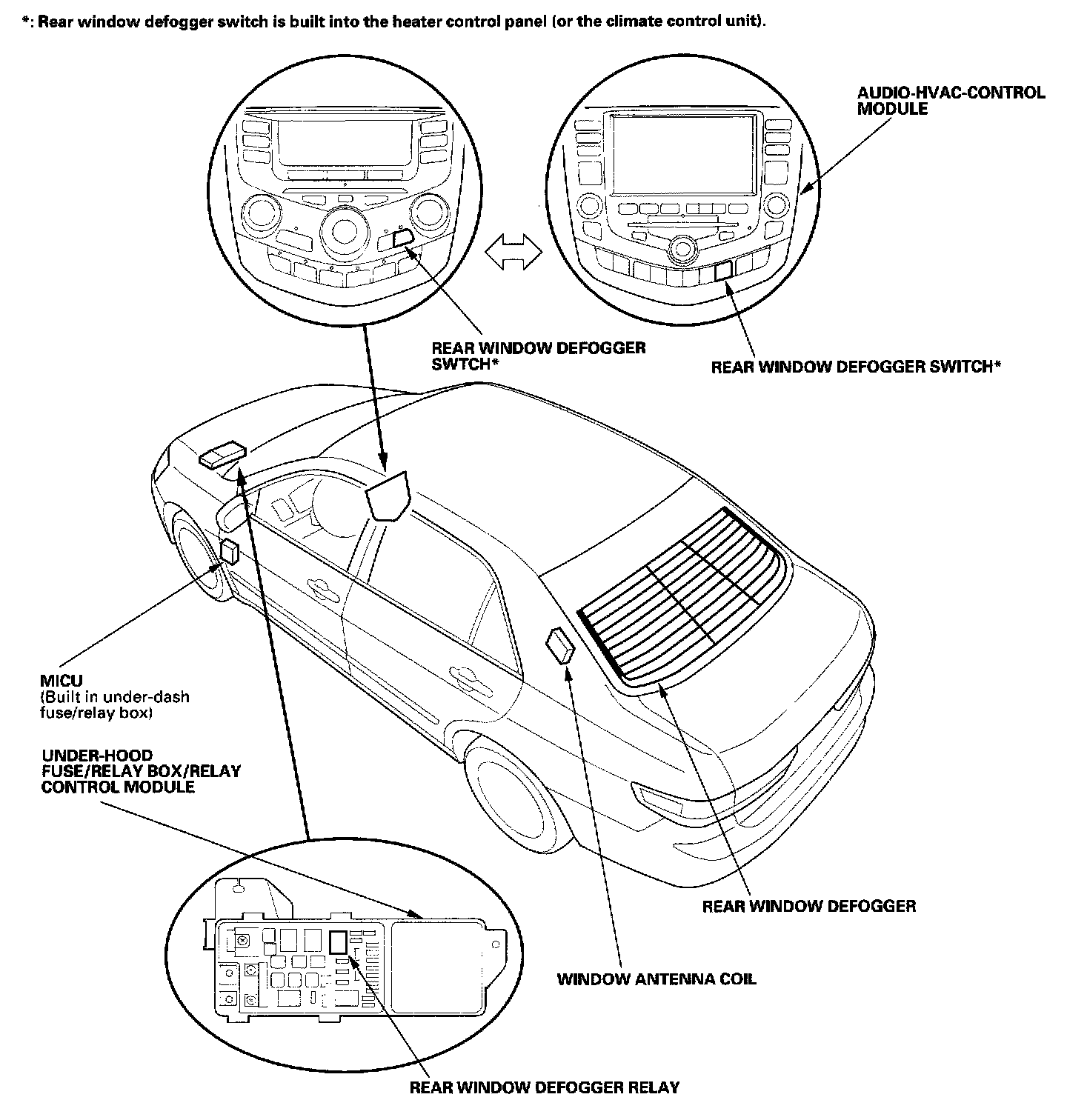

Rear Window Defogger Component Location Index:

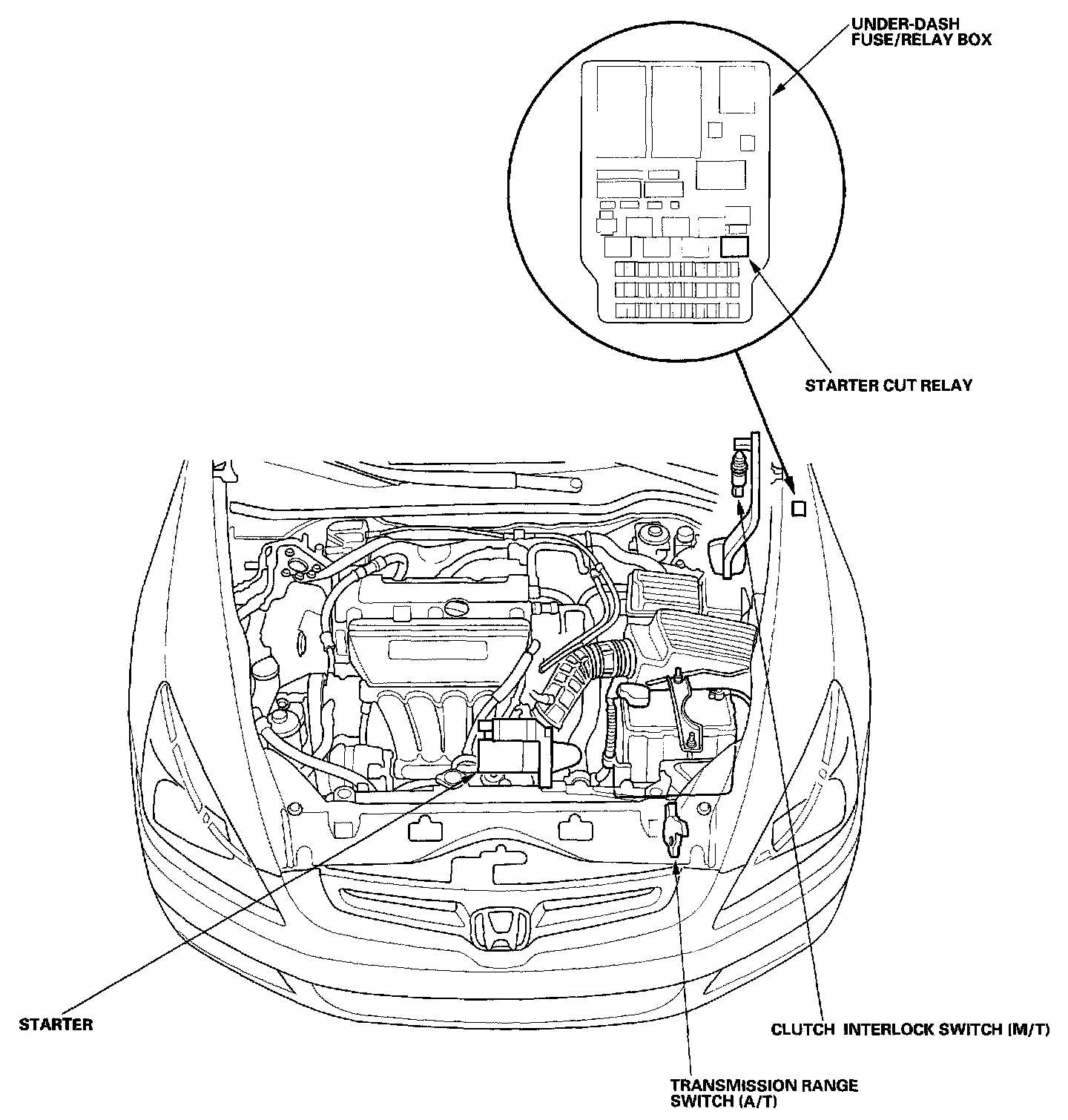

Starting System Component Location Index:

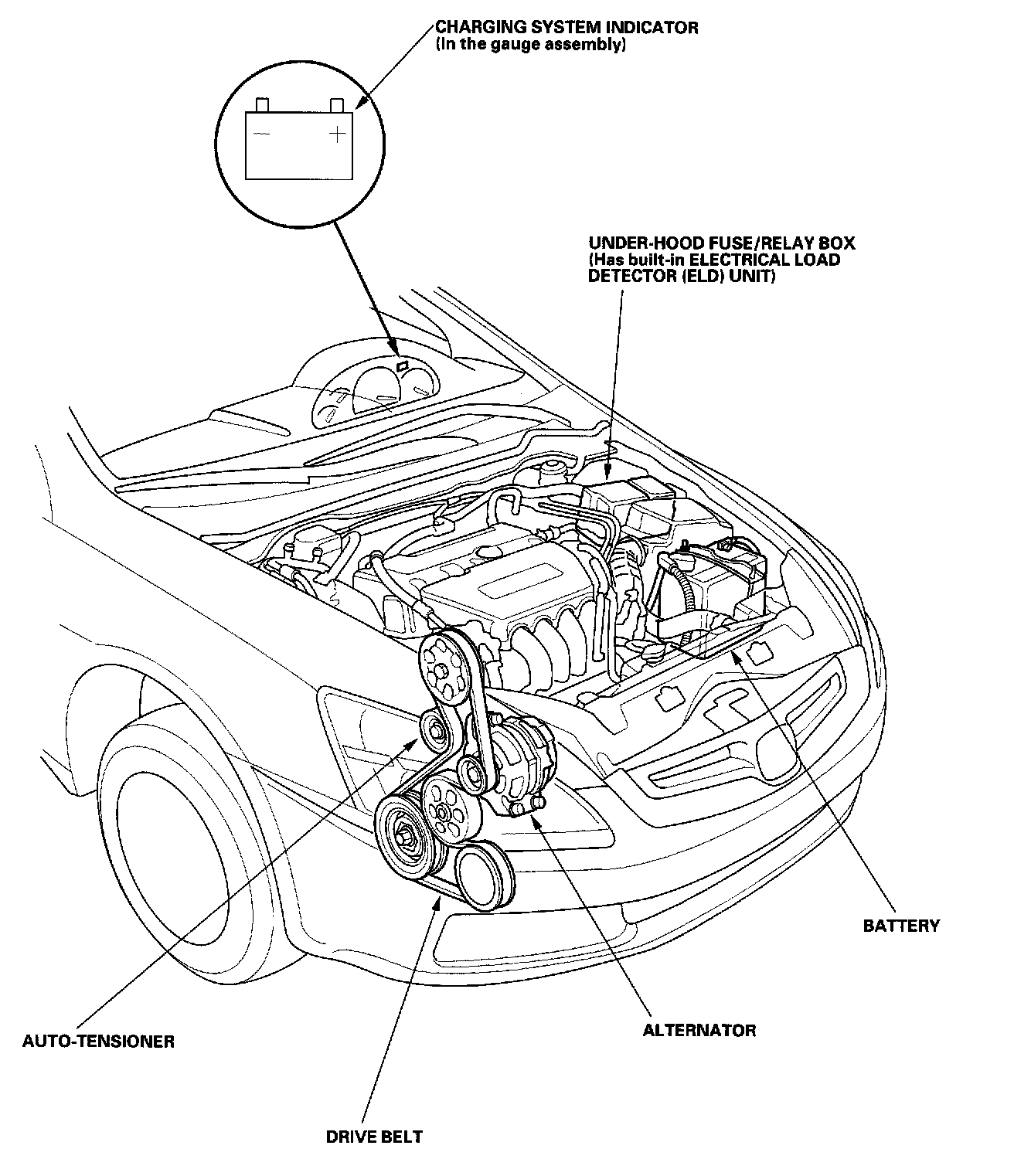

Charging System Component Location Index:
