CMP Sensor A Replacement

CMP Sensor A Replacement

1. Remove the air cleaner.
2. Remove the EGR valve.

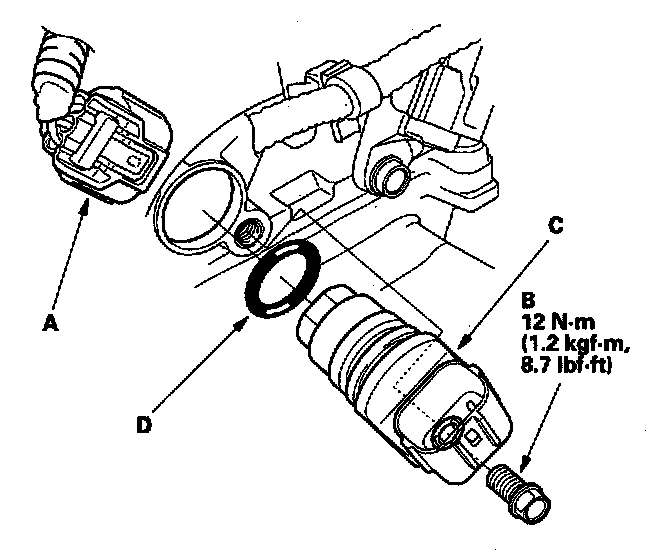

3. Disconnect the CMP sensor A connector (A).
4. Remove the bolt (B).
5. Remove CMP sensor A (C) from the intake camshaft side of the cylinder head.
6. Install the sensor in the reverse order of removal with a new O-ring (D).
