Data Link Connector: Locations

SRS Component Location Index '04 Model (4-door):

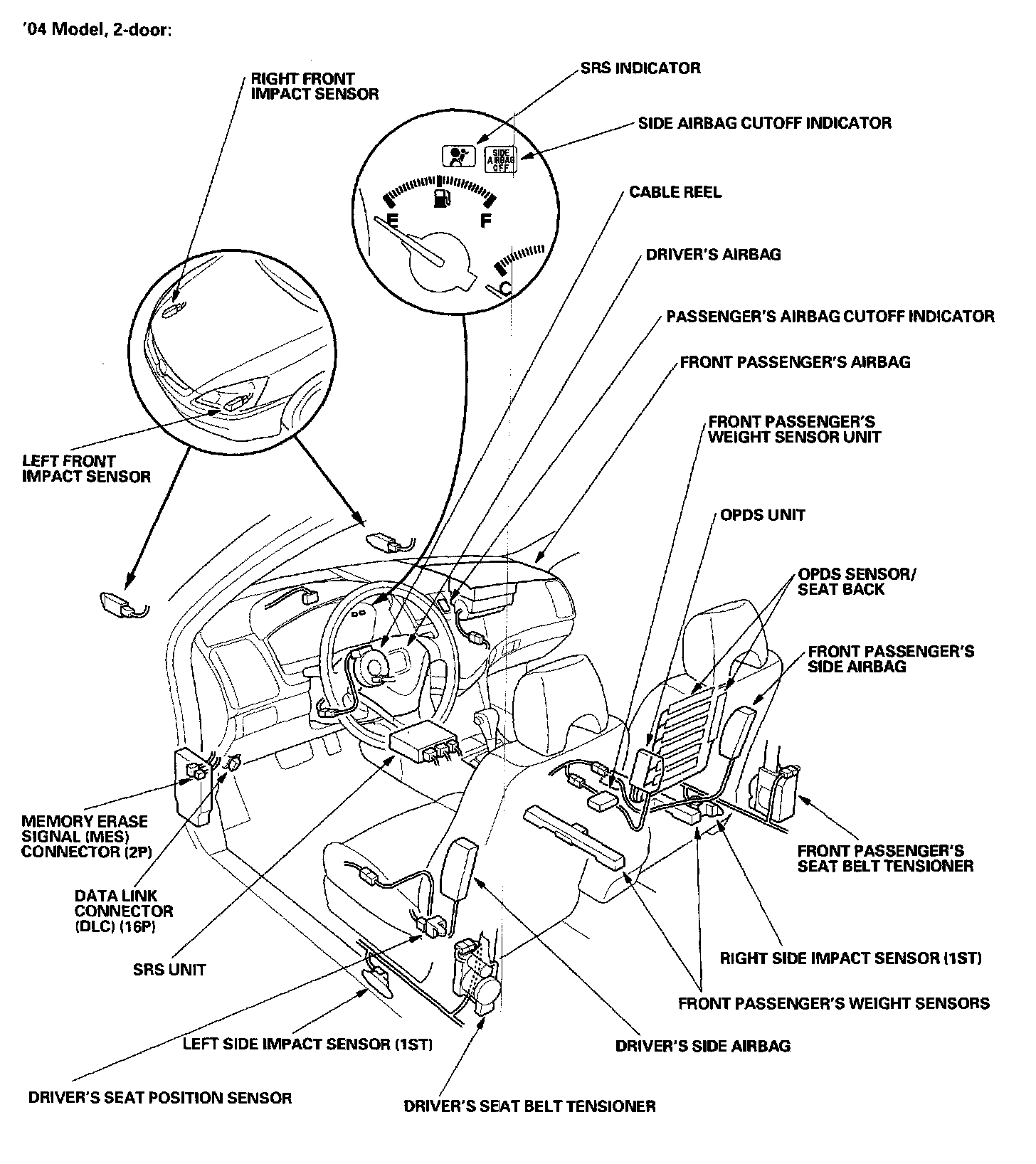

SRS Component Location Index '04 Model (2-door):

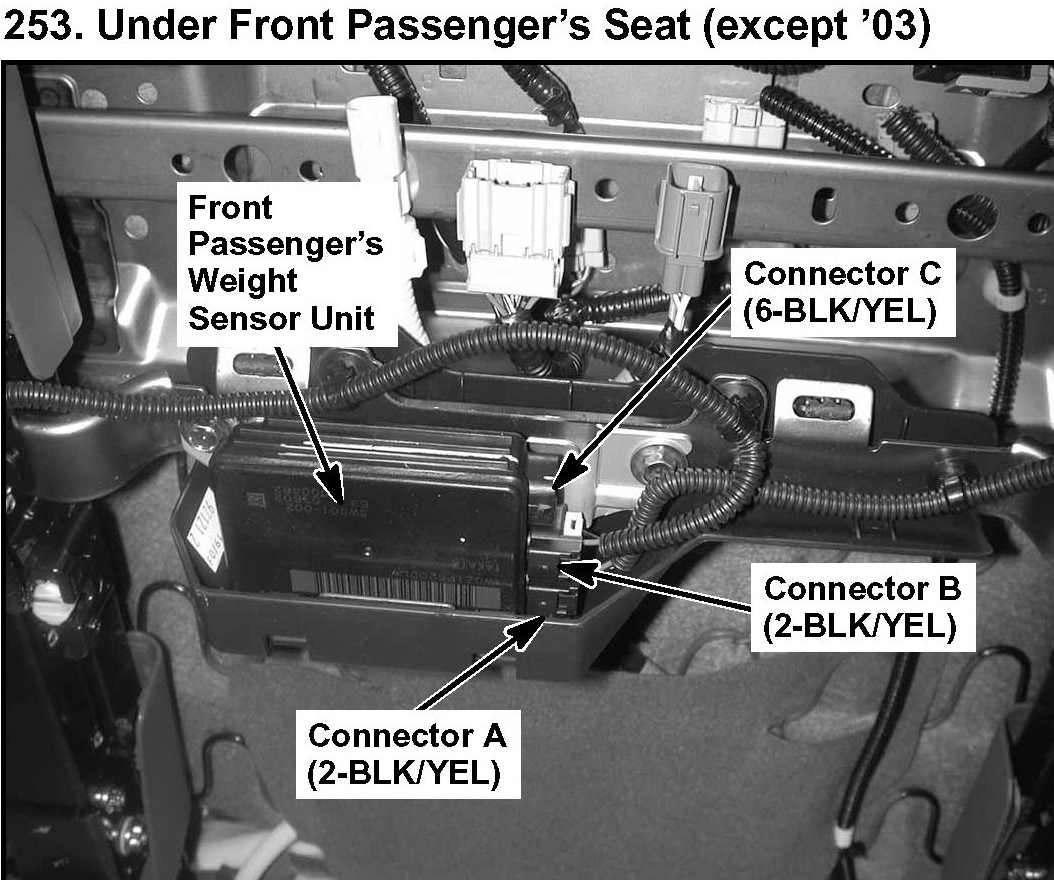

253. Under Front Passenger's Seat:
