PCM A/T Control System

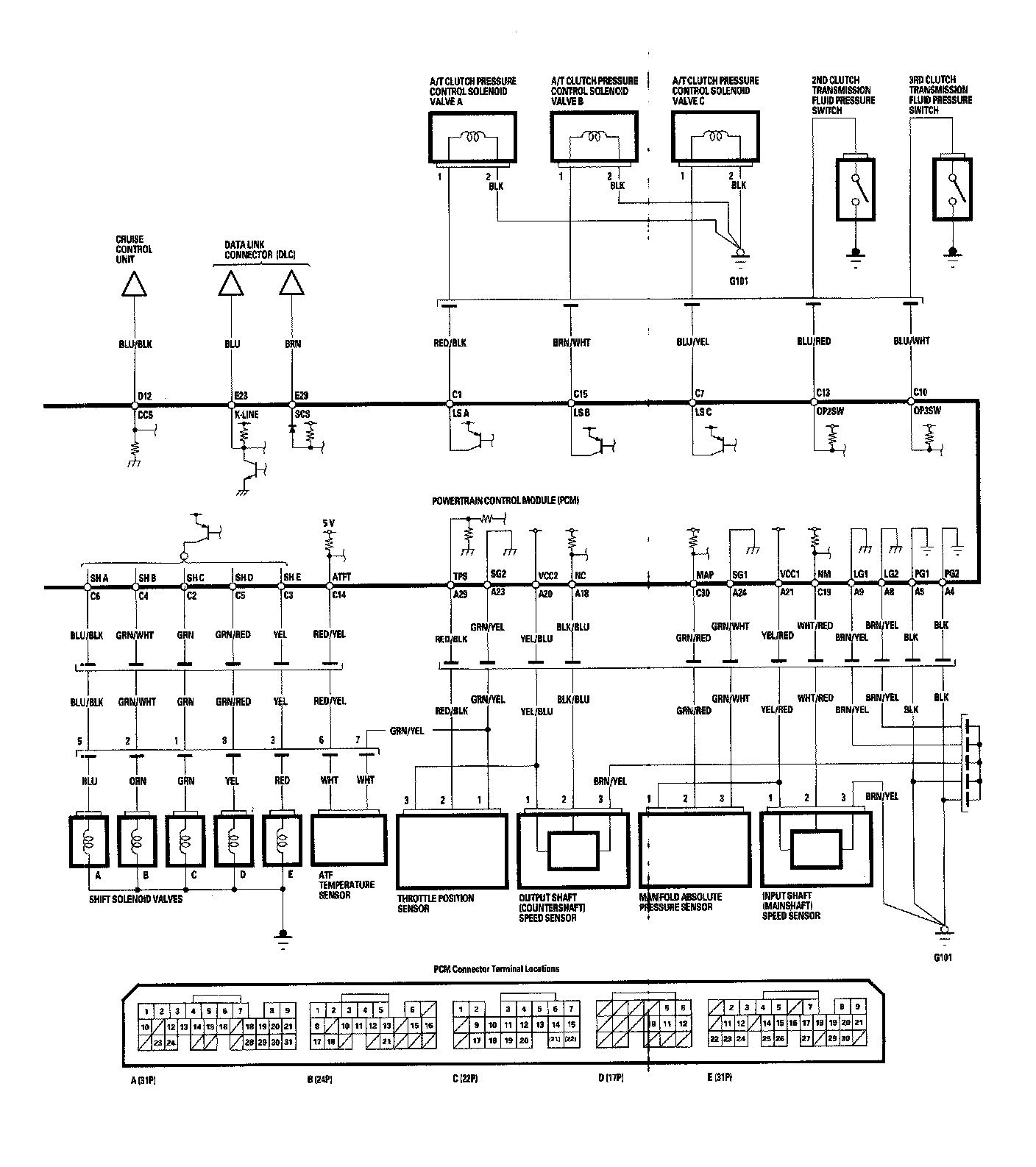

Circuit Diagram - PCM Control System - '03-04 Models:

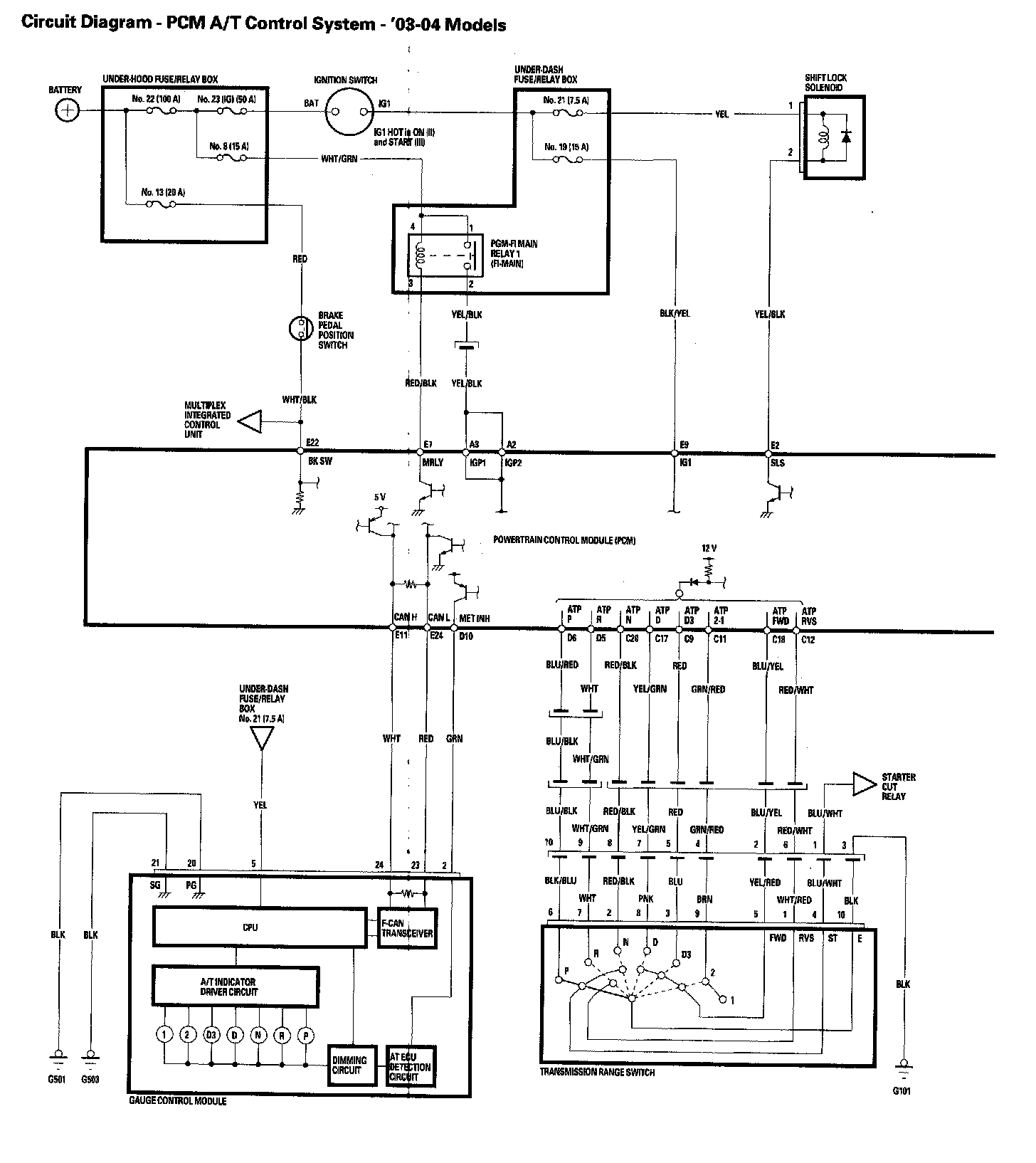

Circuit Diagram - PCM Control System - '03-04 Models:
