Removal and Installation

Heater Control Panel Removal/Installation

NOTE: Take care not to scratch the dashboard and related parts.

1. Remove the dashboard pocket.
2. Pull the parking brake lever.

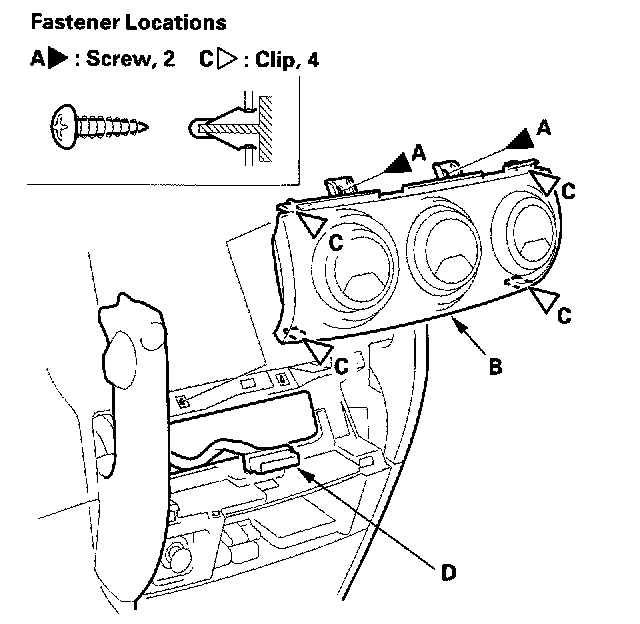

3. Remove the screws (A), and pull out the heater control panel (B) to release the clips (C). Disconnect the heater control unit connector (D), then remove the heater control panel.
4. Install the panel in the reverse order of removal, and make sure the heater control unit connector is plugged in properly.
