CMP Sensor B (TDC Sensor) Replacement

CMP Sensor B (TDC Sensor) Replacement

NOTE: CMP sensor B (TDC sensor) is on the exhaust side of the cylinder head.

1. Remove the air cleaner.

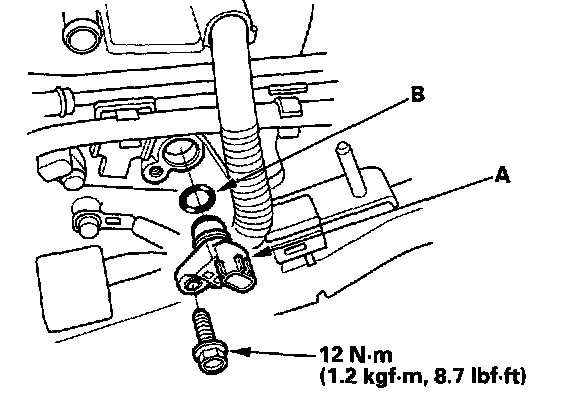

2. Disconnect the CMP sensor B (TDC sensor) (A) 3P connector.
3. Remove CMP sensor B (TDC sensor) (A) from the exhaust camshaft side of the cylinder head.
4. Install the sensor in the reverse order of removal with a new O-ring (B).
