Crankshaft Position Sensor: Service and Repair

CKP Sensor Replacement

1. Disconnect the CKP 3P connector.

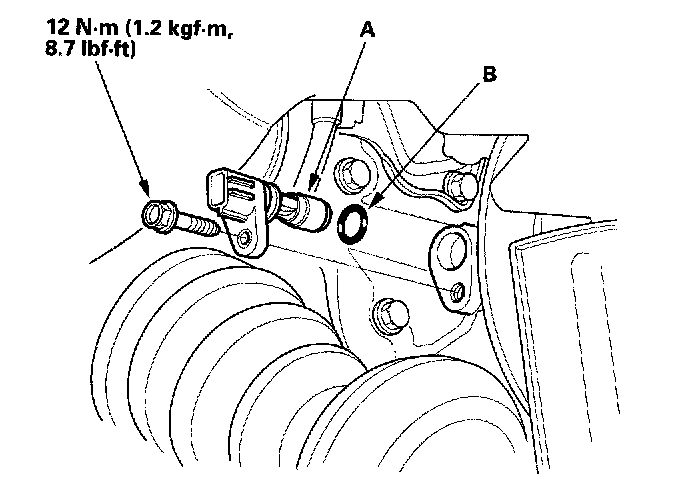

2. Remove the CKP sensor (A).
3. Install the sensor in the reverse order of removal with a new O-ring (B).
