CMP Sensor A Replacement

CMP Sensor A Replacement

NOTE: CMP sensor A is on the intake side of the cylinder head.

1. Remove the air cleaner.
2. Disconnect the CMP sensor A 3P connector.

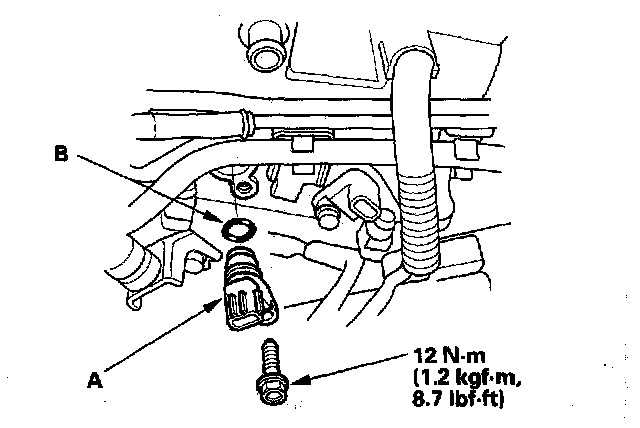

3. Remove CMP sensor A (A) from the intake camshaft side of the cylinder head.
4. Install the sensor in the reverse order of removal with a new O-ring (B).
