Motor Test

Remove the driver's door panel (see FRONT DOOR PANEL REMOVAL/INSTALLATION ).

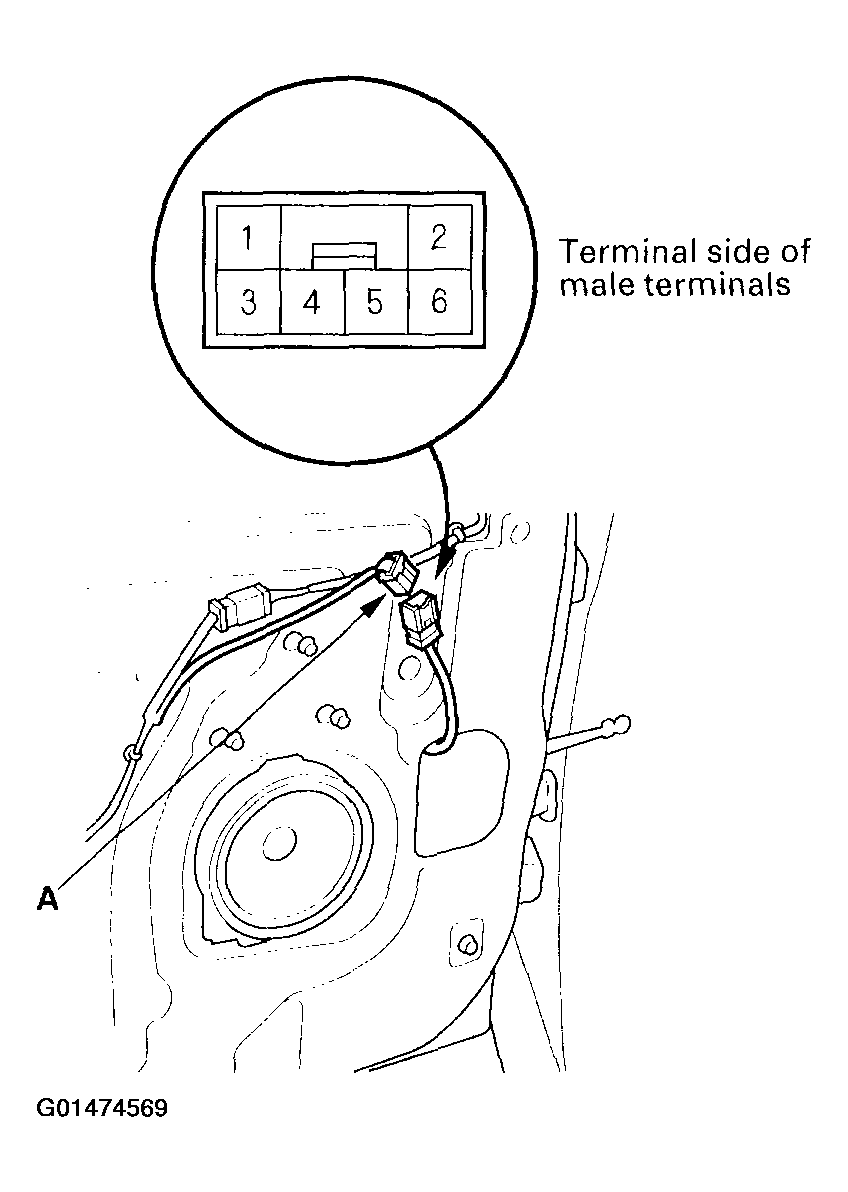

Disconnect the 6P connector (A) from the driver's window motor.

Fig 1: Disconnecting 6-Pin Connector From Driver's Window Motor
Courtesy of AMERICAN HONDA MOTOR CO., INC.

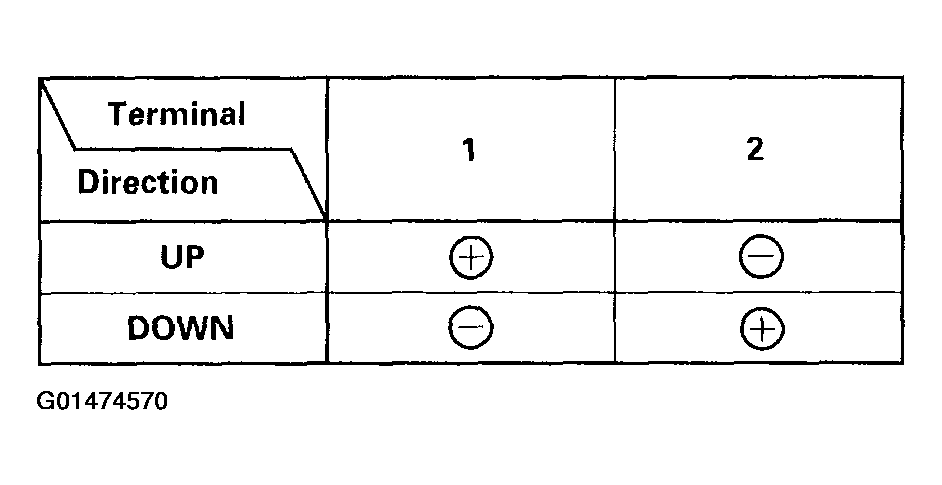

Test the motor in each direction by connecting battery power and ground according to the table.
NOTE: To prevent damage to the motor, disconnect one lead as soon as the motor stops running.

Fig 2: Testing Motor
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the motor does not run or fails to run smoothly, replace it.
