Passenger's Window Switch Test/Replacement

Remove the switch panel from the door panel (see FRONT DOOR PANEL REMOVAL/INSTALLATION ).
Disconnect the 5P connector (A) from the power window switch (B).

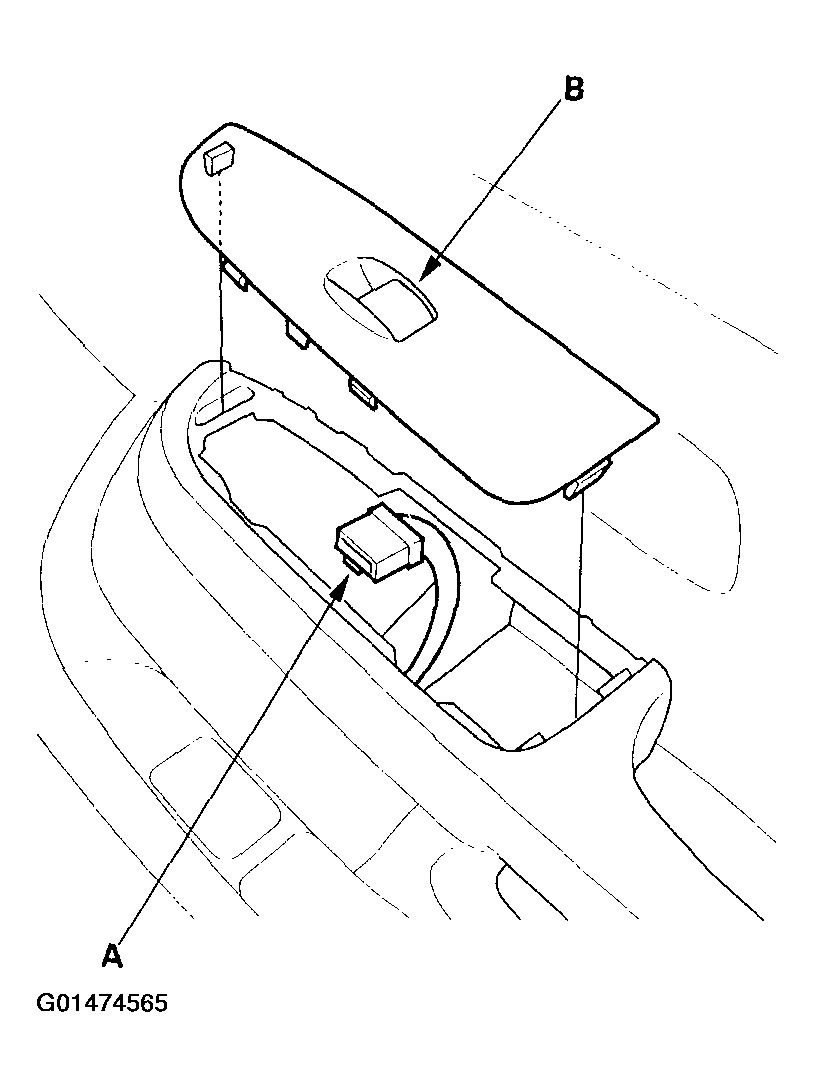

Fig 1: Disconnecting 5-Pin Connector From Power Window Switch
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the two screws and the passenger's power window switch.

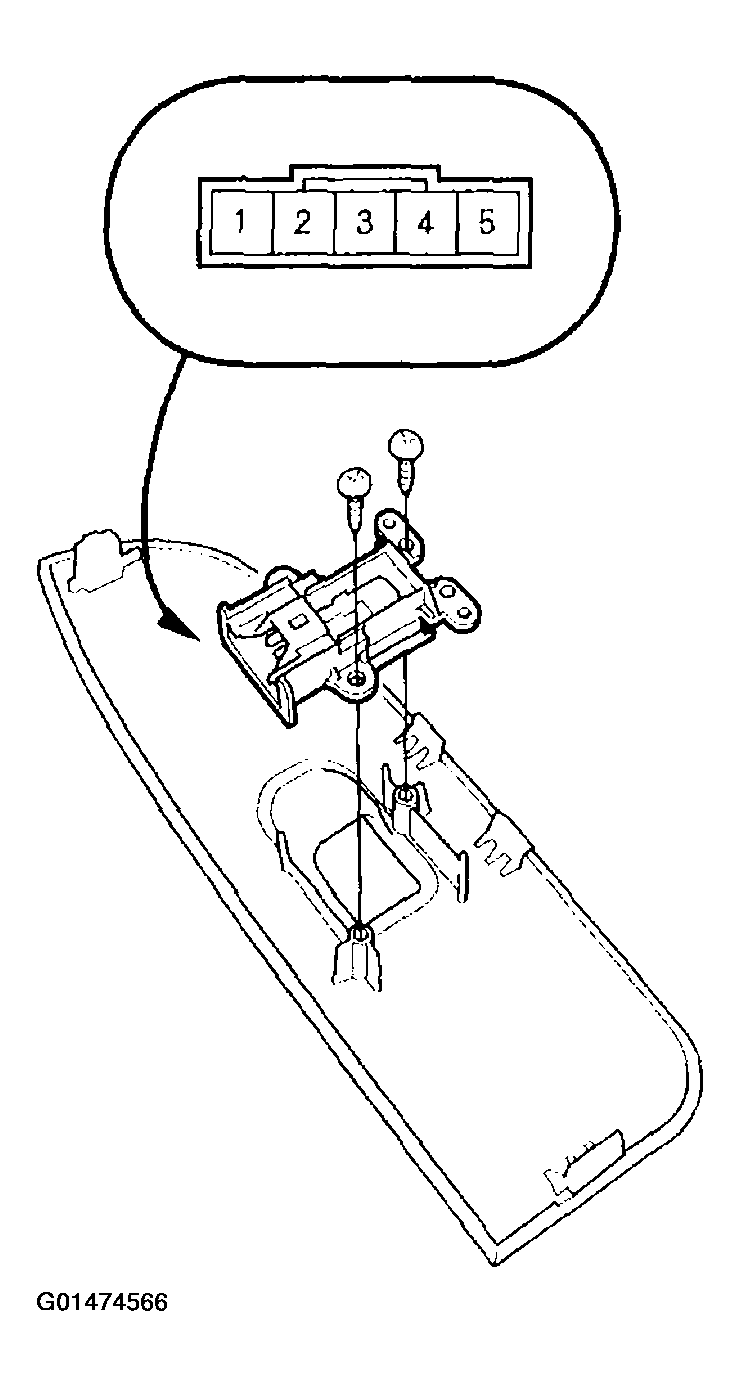

Fig 2: Removing Passenger's Power Window Switch
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check for continuity between the terminals in each switch position according to the table.

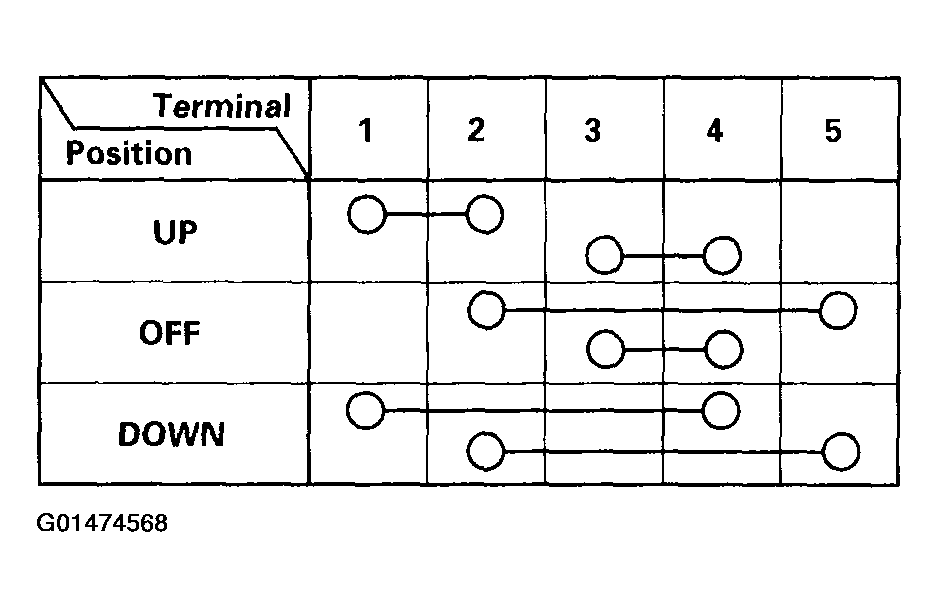

Fig 3: Checking Continuity Between Terminals (Left)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Front passenger's, Right

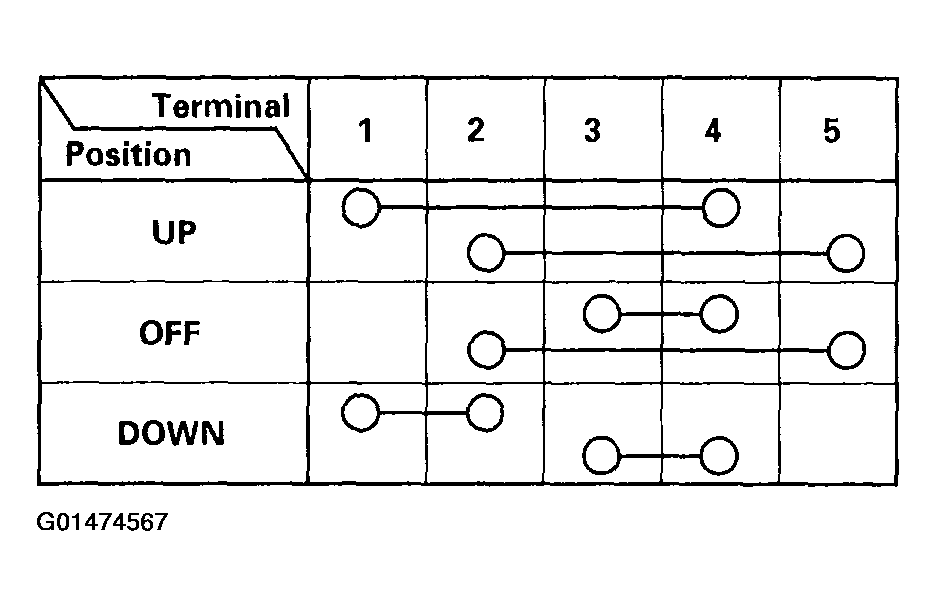

Fig 4: Checking Continuity Between Terminals (Front Passenger's, Right)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the continuity is not as specified, remove the two screws and replace the switch.
