Rack Guide Adjustment

Special Tools Required

Locknut wrench, 40 mm 07916-SA50001

1. Set the wheels in the straight ahead position.
2. Loosen the rack guide screw locknut (A) with the special tool, then remove the rack guide screw (B).

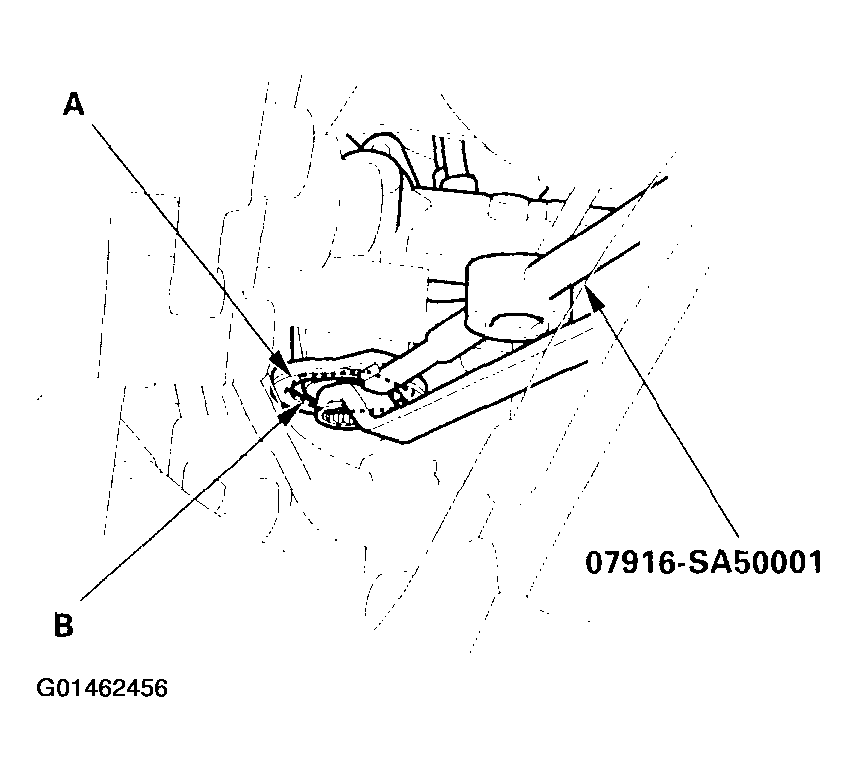

   Fig 1: Loosening Rack Guide Screw Locknut

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
3. Remove the old sealant from the rack guide screw, and apply new sealant to the middle of the threads (A). Loosely install the rack guide screw in the steering gearbox.

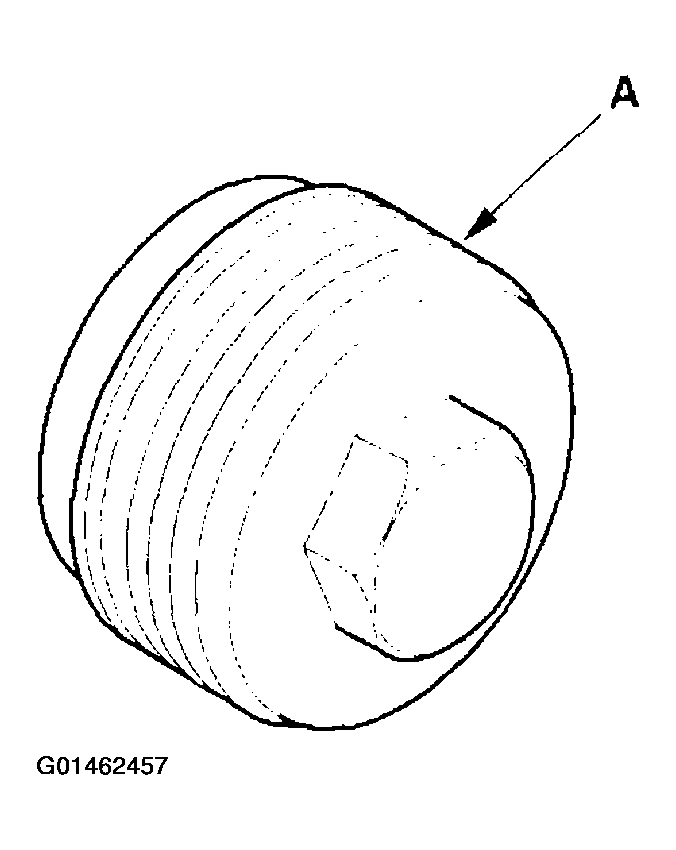

   Fig 2: Applying Sealant To Middle Of The Threads

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
4. Tighten the rack guide screw (A) to 25 N.m (2.5 kgf.m, 18 Ft.Lbs.), then loosen it.

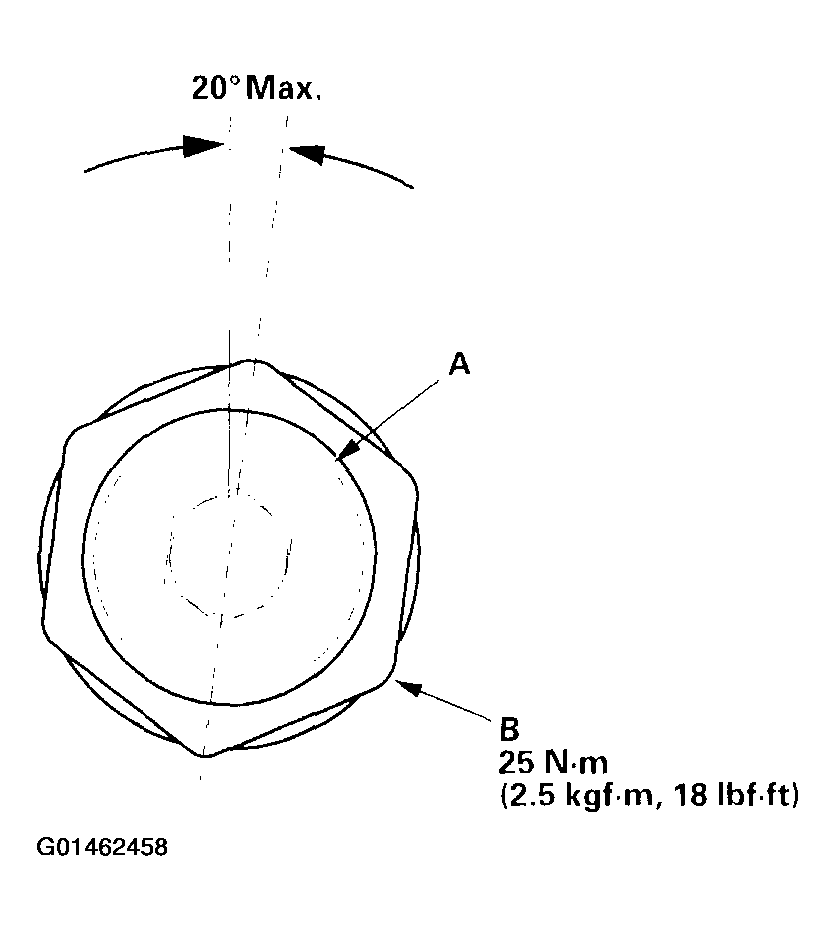

   Fig 3: Tightening Rack Guide Screw

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
5. Retighten the rack guide screw to 6 N.m (0.6 kgf.m, 4 Ft.Lbs.), then back it off to the specified angle.

   Specified return angle: 20°Max.

6. Hold the rack guide screw stationary with a wrench, and tighten the locknut by hand until it's fully seated.
7. Install the special tool on the locknut (B), and hold the rack guide screw stationary with a wrench. Tighten the locknut an additional 30° with the special tool.
8. Check for unusual steering effort through the complete turning travel.
9. Check the steering wheel rotation play (see Steering Wheel Rotational Play Check  ) and the power assist (see Power Assist Check  ).
