Recirc-A/C-Defogger Switch Assembly Connector End View

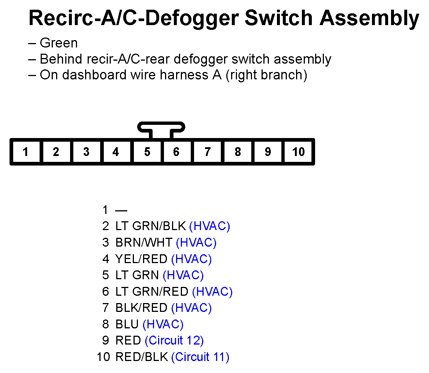

Fig 1: Recirc-A/C-Defogger Switch Assembly Connector End View
G11248691Courtesy of AMERICAN HONDA MOTOR CO., INC.
