Circuit Diagram
WARNING:
This page is about a different variant/trim than selected.

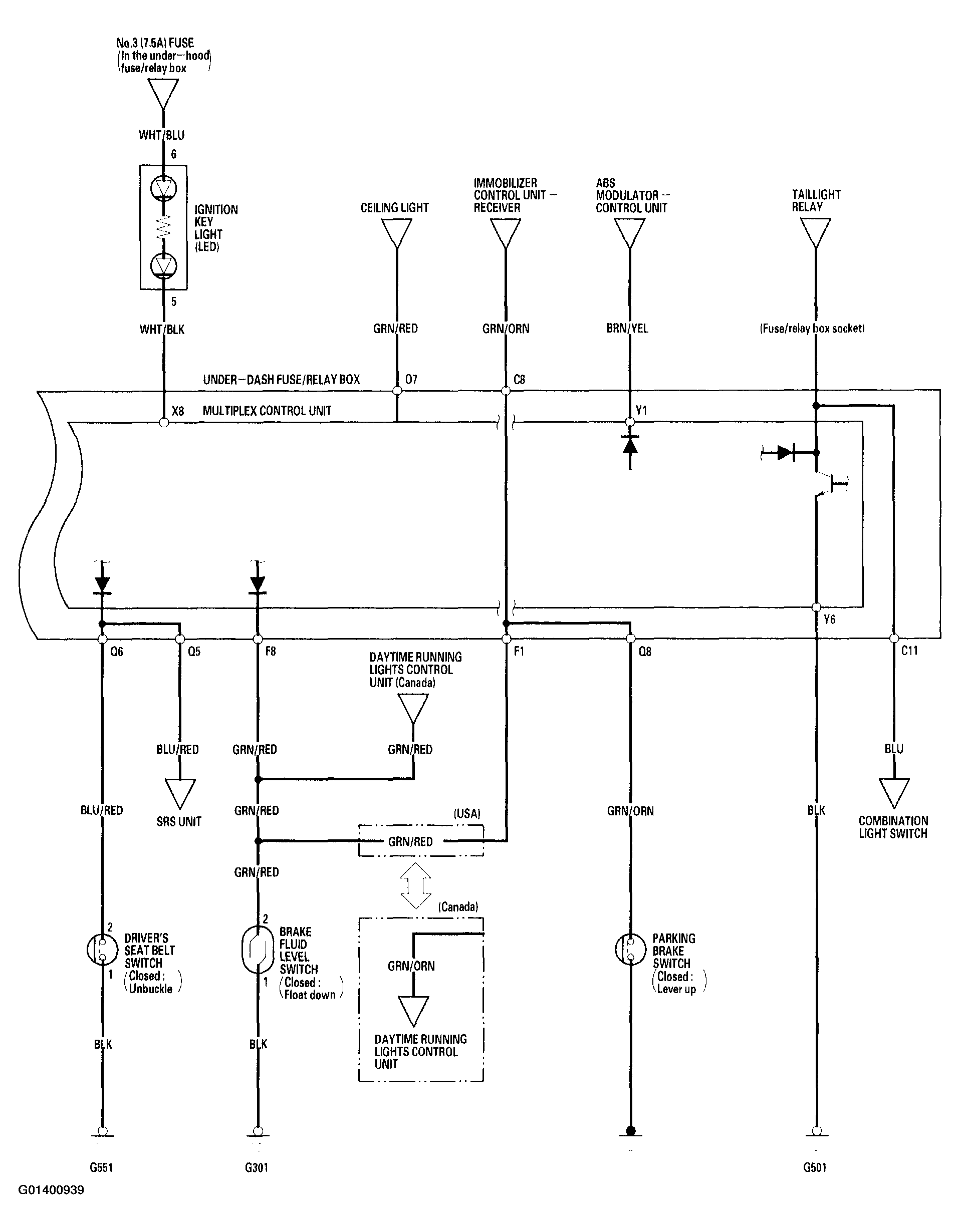

Fig 1: Multiplex Control System Wiring Diagrams (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

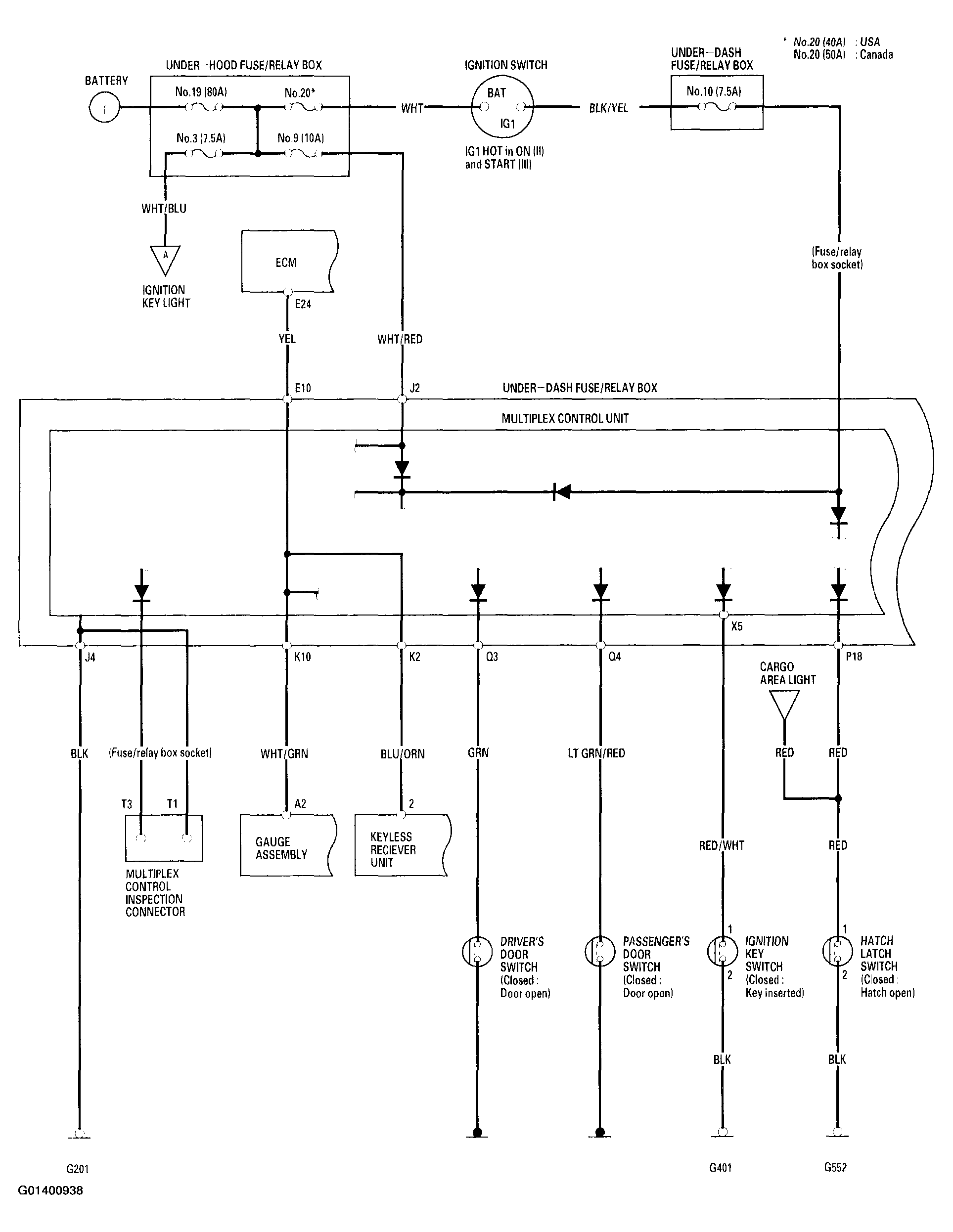

Fig 2: Multiplex Control System Wiring Diagrams (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
