PCM Inputs and Outputs at Connector C (22P)
NOTE:
Standard battery voltage is 12 V.

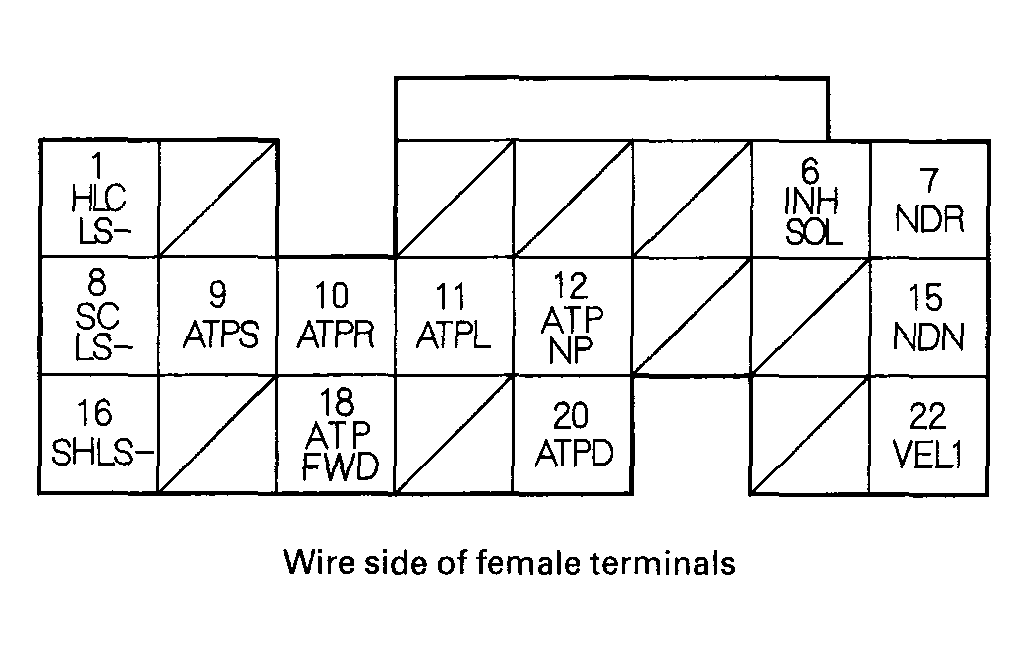

CONNECTOR C (22P) TERMINALS REFERENCE
| Terminal number | Wire color | Terminal name | Description | Signal |
|---|---|---|---|---|
| 1 | BLK/RED | HLCLS- (CVT PULLEY PRESSURE CONTROL VALVE-SIDE) | Ground for CVT pulley pressure control valve | |
| 6 | GRN/RED | INHSOL (INHIBITOR SOLENOID CONTROL) | Inhibitor solenoid control | With inhibitor solenoid ON: battery voltage With inhibitor solenoid OFF: about 0 V |
| 7 | RED/BLU | NDR (INPUT SHAFT (DRIVE PULLEY) SPEED SENSOR) | Detects input shaft (drive pulley) speed sensor signal | In other than Park or neutral: pulses |
| 8 | BLU/RED | SCLS-(CVT START CLUTCH PRESSURE CONTROL VALVE-SIDE) | Ground for CVT start clutch pressure control valve | |
| 9 | RED | ATPS (TRANSMISSION RANGE SWITCH S POSITION) | Detects transmission range switch S position signal | In S position: about 0 V In any other position: about 5 V or battery voltage |
| 10 | WHT | ATPR (TRANSMISSION RANGE SWITCH R POSITION) | Detects transmission range switch R position signal | In R position: about 0 V In any other position: about 5 V or battery voltage |
| 11 | BLU | ATPL (TRANSMISSION RANGE SWITCH L POSITION) | Detects transmission range switch L position signal | In L position: about 0 V In any other position: about 5 V or battery voltage |
| 12 | BLU/WHT | ATPNP (TRANSMISSION RANGE SWITCH NEUTRAL/PARK POSITION) | Detects transmission range switch Neutral/Park position signal | In Park or neutral: about 0 V In any other position: about 5 V or battery voltage |
| 15 | WHT/GRN | NDN (OUTPUT SHAFT (DRIVEN PULLY) SPEED SENSOR) | Detects output shaft (driven pully) speed sensor signal | In other than Park or neutral: pulses |
| 16 | GRN/YEL | SHLS- (CVT SPEED CHANGE CONTROL VALVE-SIDE) | Ground for CVT speed change control valve | With ignition switch ON (II): duty controlled negative electrode. |
| 18 | BLU/YEL | ATPFWD (TRANSMISSION RANGE SWITCH D/S POSITION) | Detects transmission range switch D/S position signal | In D or S position: about 0 V In any other position: about 5 V or battery voltage |
| 20 | YEL | ATPFWD (TRANSMISSION RANGE SWITCH D POSITION) | Detects transmission range switch D position signal | In D position: about 0 V In any other position: about 5 V or battery voltage |
| 22 | WHT/RED | VEL1 (CVT SPEED SENSOR 1) | Detects CVT speed sensor 1 | Depending on vehicle speed: pulses When vehicle is stopped: about 0 V or 5 V |
