Alarm Module, (Vehicle Antitheft)

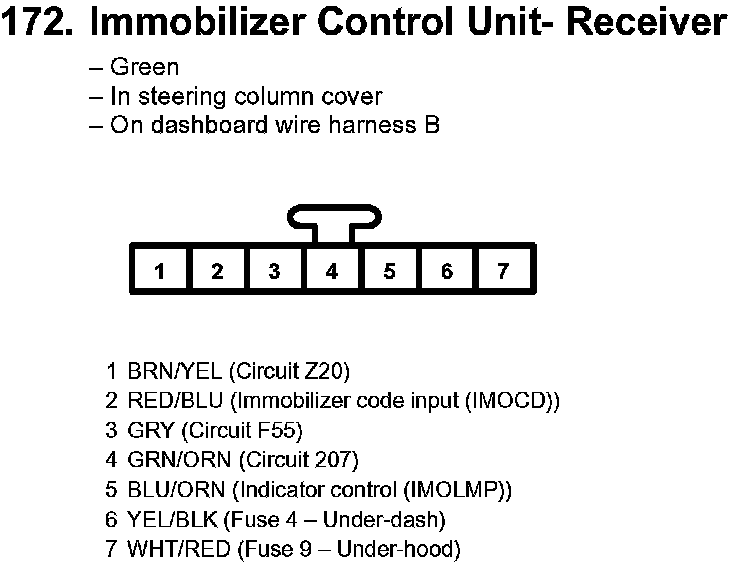

172. Immobilizer Control Unit-Receiver:

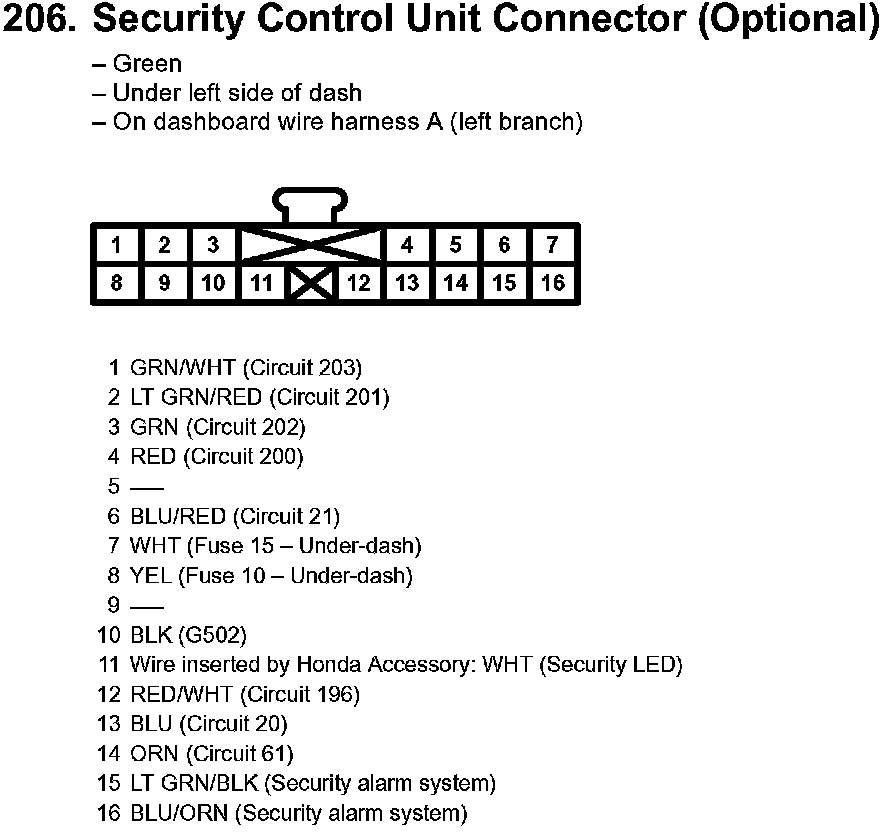

206. Security Control Unit Connector (Optional):
