Drive Motor Current Sensor: Service and Repair

Motor Commutation Sensor Replacement
1. M/T: Remove the transmission, and the clutch.
CVT: Remove the transmission.

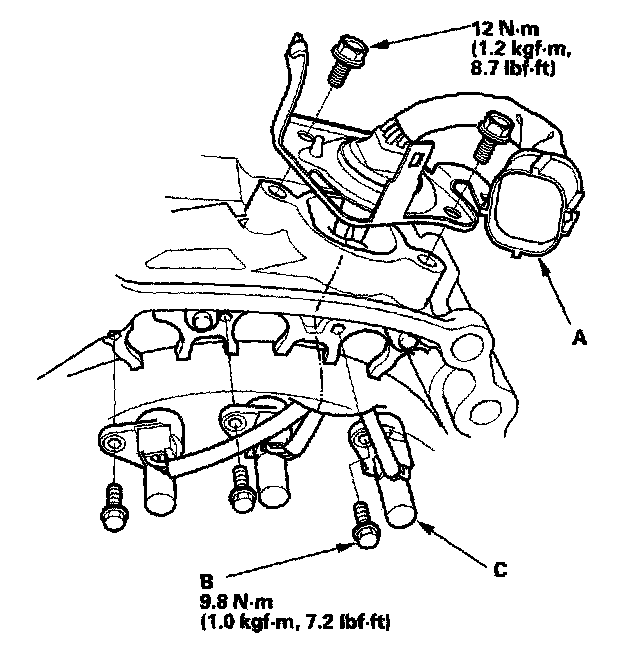

2. Disconnect the motor commutation sensor 10P connector (A).
3. Remove the bolts (B) and the motor commutation sensors (C).





4. Install the parts in the reverse order of removal.

NOTE: Make sure you install the sensor (A, B, and C) in their corresponding locations on the motor housing.
