Alarm Module, (Vehicle Antitheft)

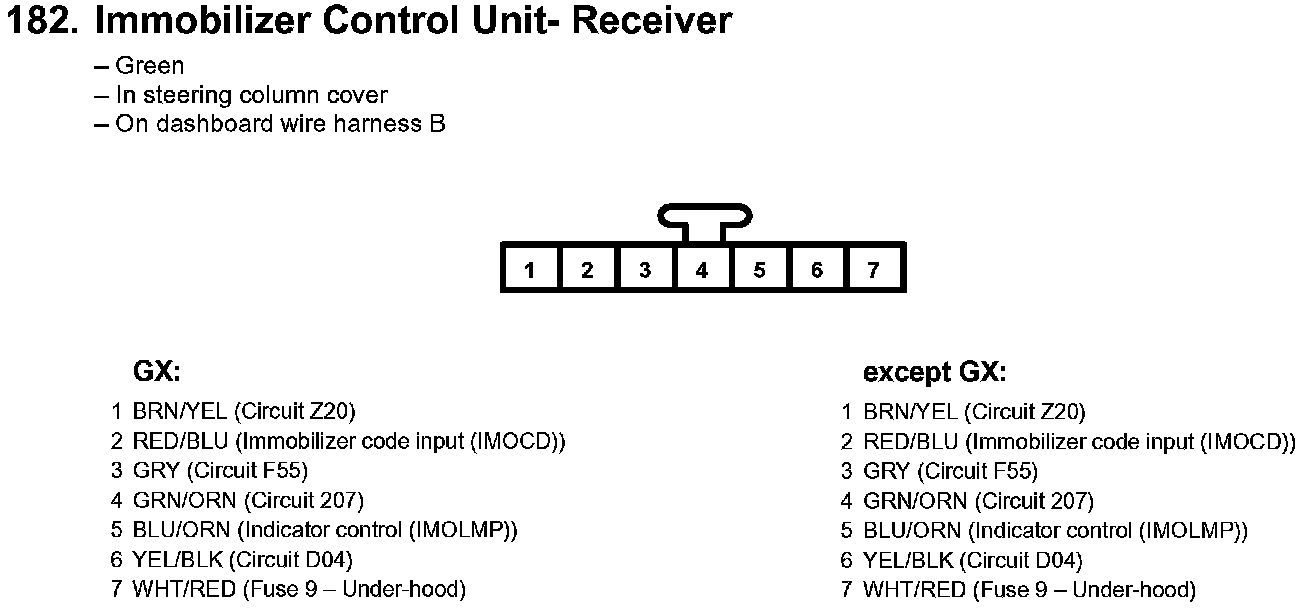

182. Immobilizer Control Unit - Receiver:

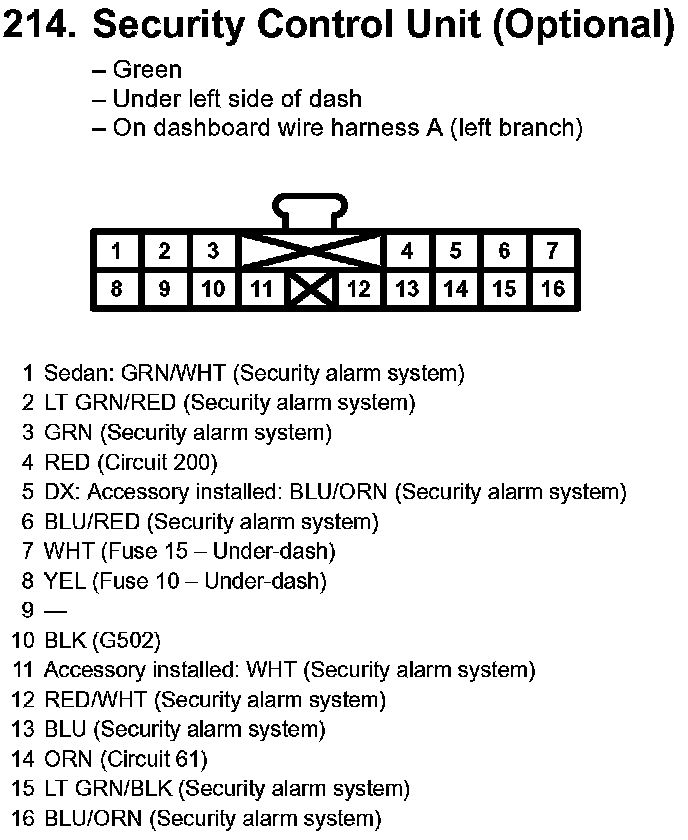

214. Security Control Unit (Optional):
