Keyless Entry Receiver

163. Keyless Receiver Unit (EX; '04-'05: LX, GX):

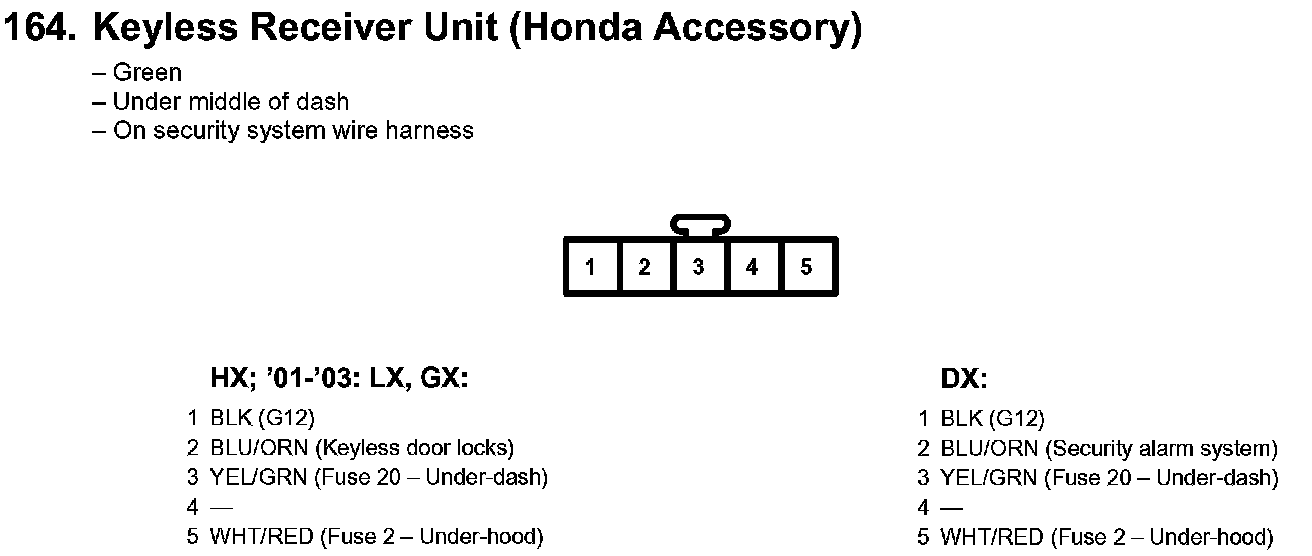

164. Keyless Receiver Unit (Honda Accessory):
