Coolant Temperature Sensor/Switch (For Computer): Service and Repair

ECT Sensor Replacement

1. Disconnect the ECT sensor 2P connector.

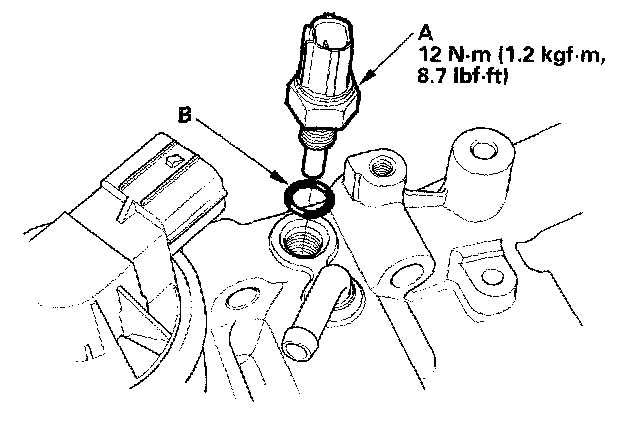

2. Remove the ECT sensor (A)
3. Install the sensor in the reverse order of removal with a new O-ring (B), then refill the radiator with engine coolant.
