Main Bearings

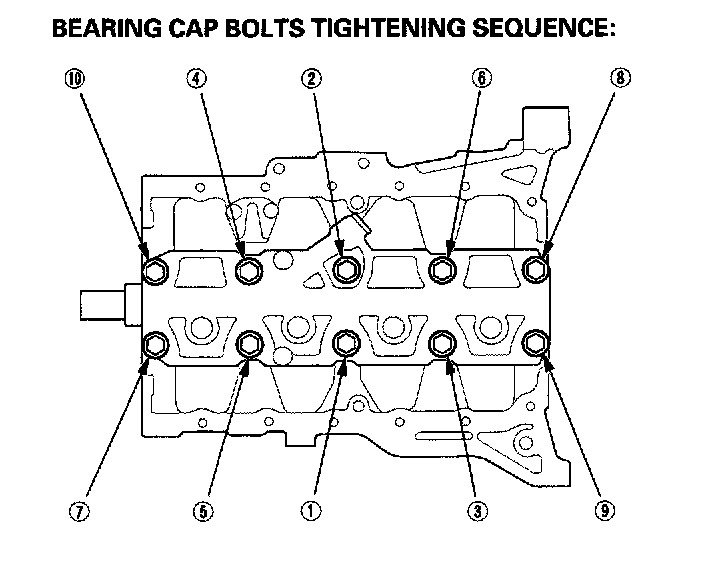

Torque the bearing cap bolts sequentially in two steps.
1st step torque:
25 Nm (2.5 kgf-m, 18 ft. lbs.)
2nd step torque:
51 Nm (5.2 kgf-m, 38 ft. lbs.)
