Fuse Block

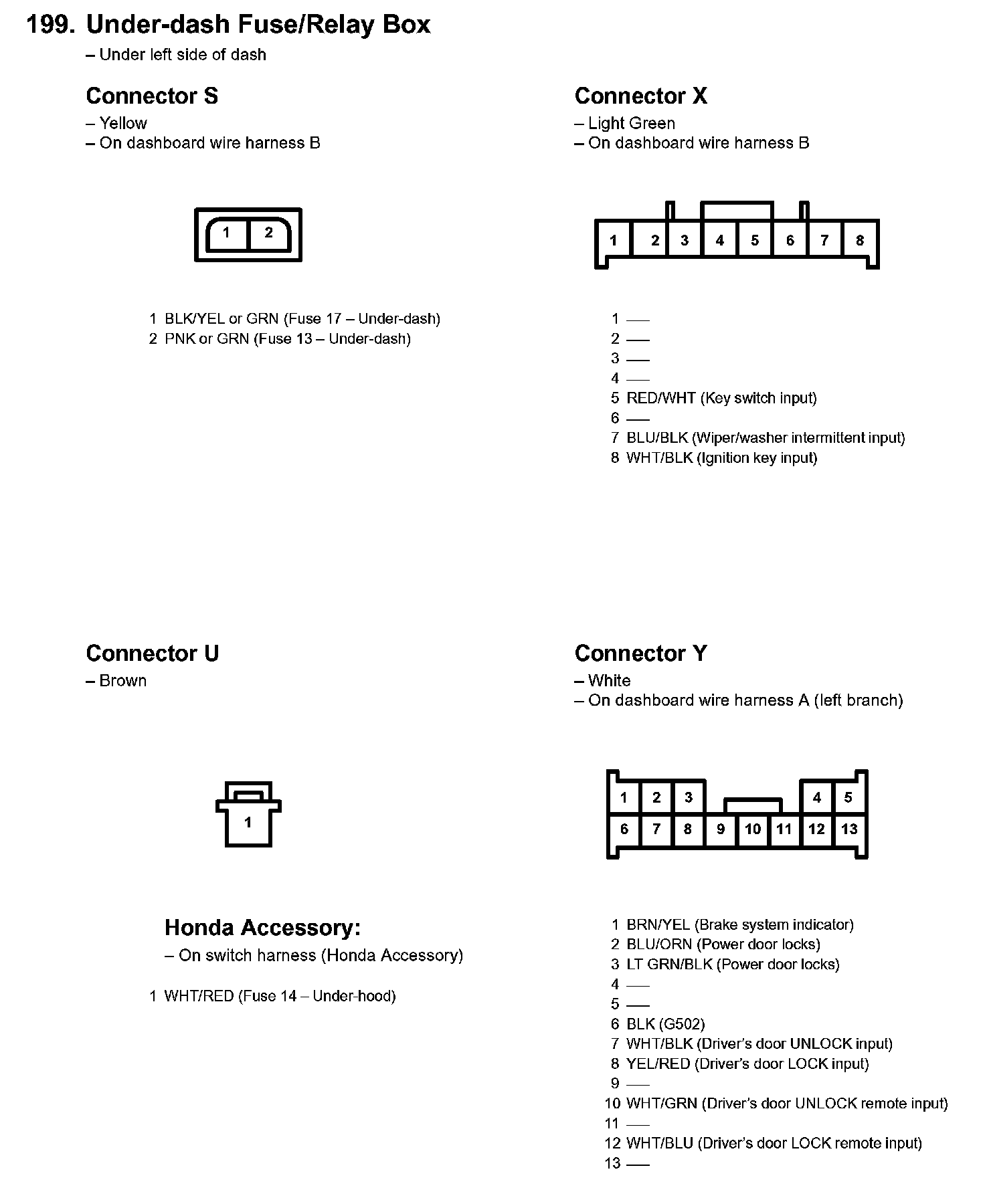

199. Under-dash Fuse/Relay Box Part 1:

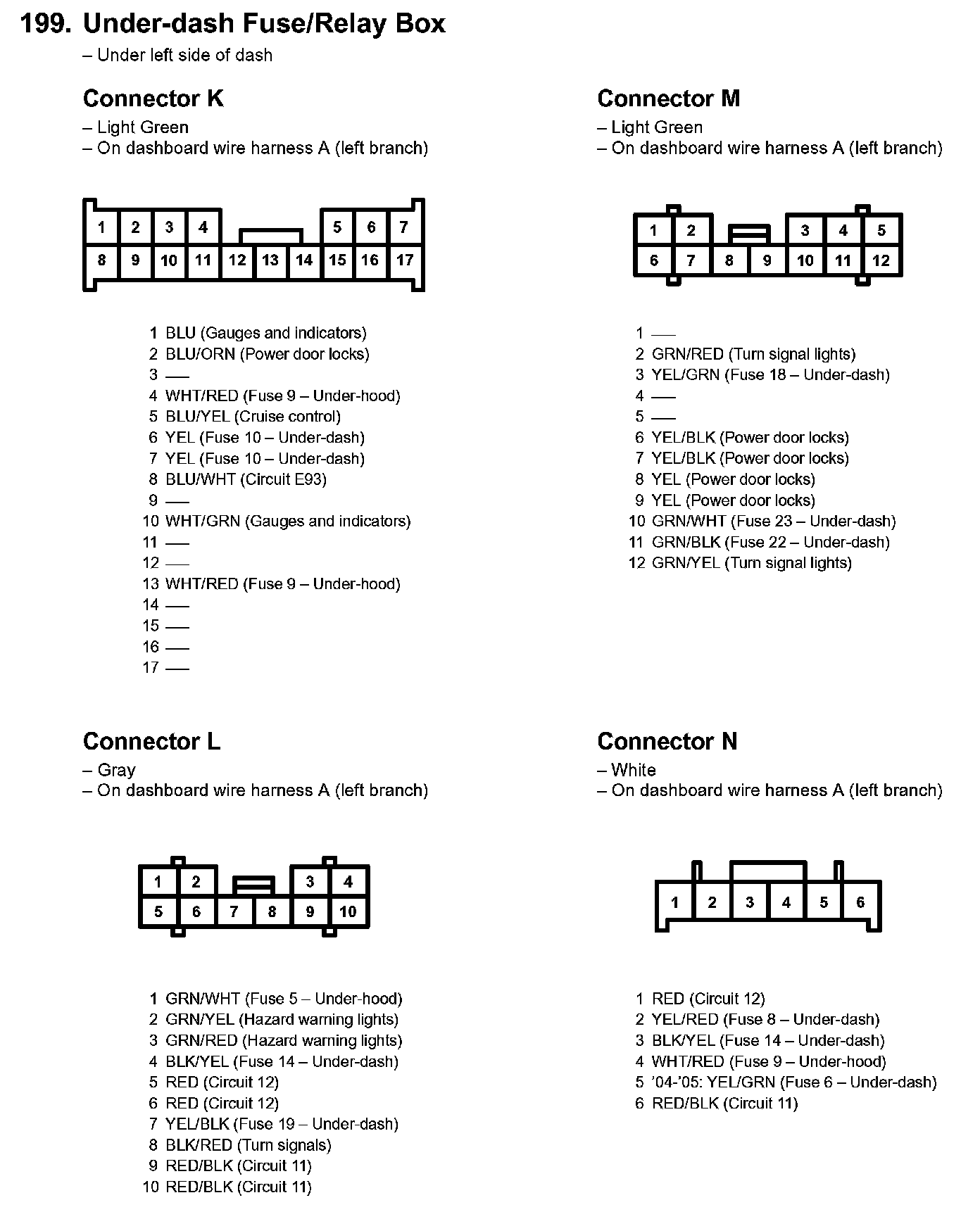

199. Under-dash Fuse/Relay Box Part 2:

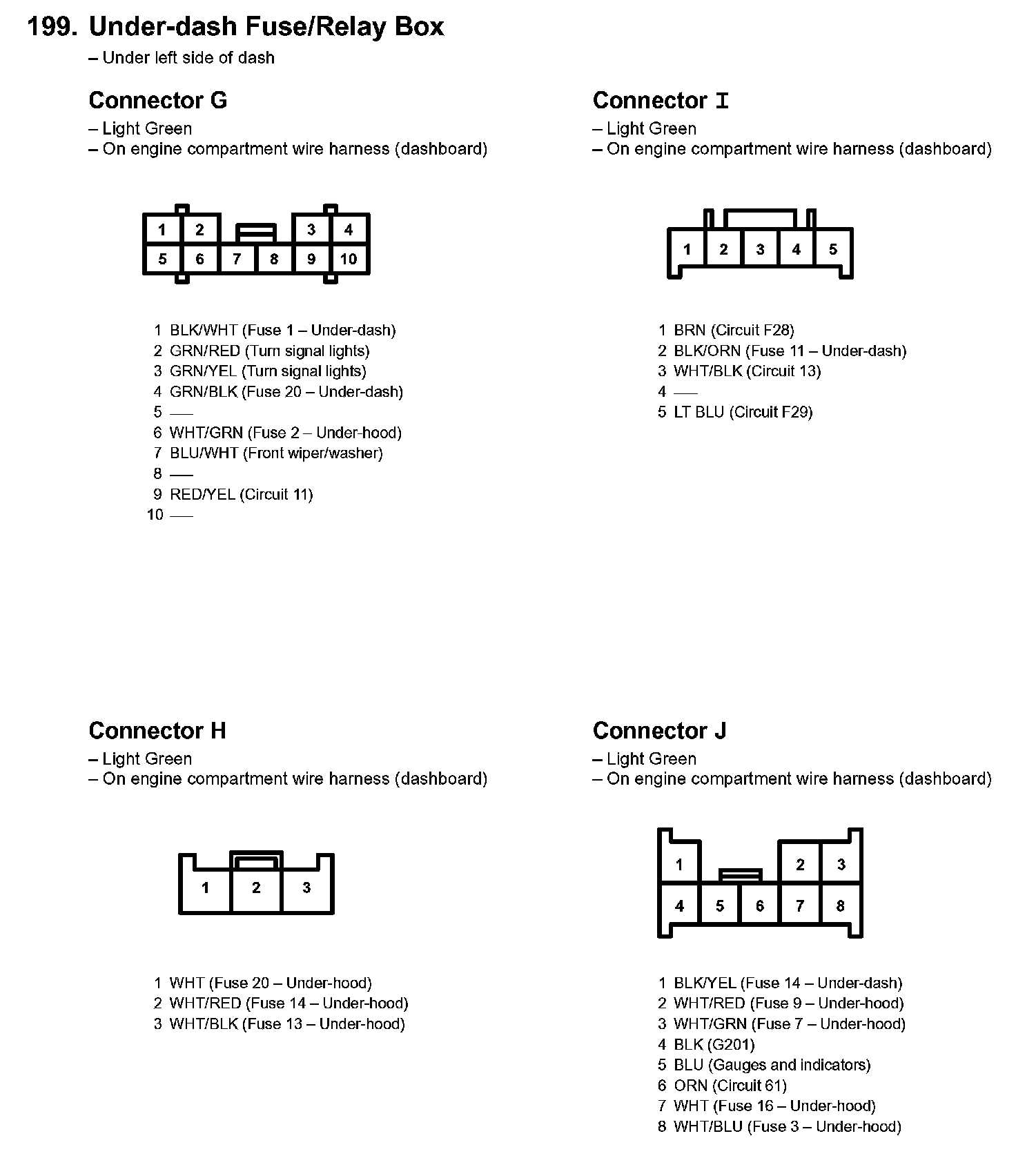

199. Under-dash Fuse/Relay Box Part 3:

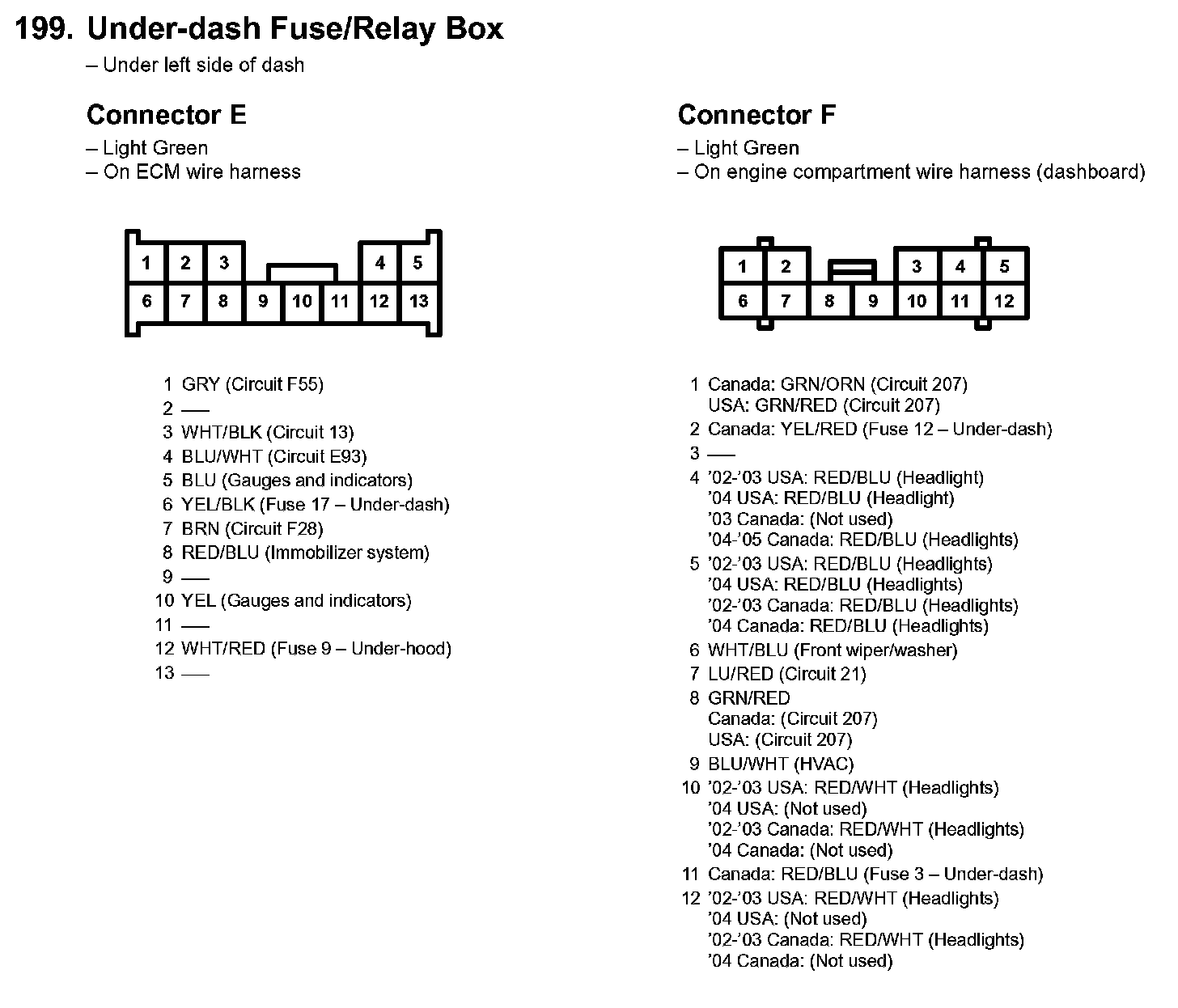

199. Under-dash Fuse/Relay Box Part 4:

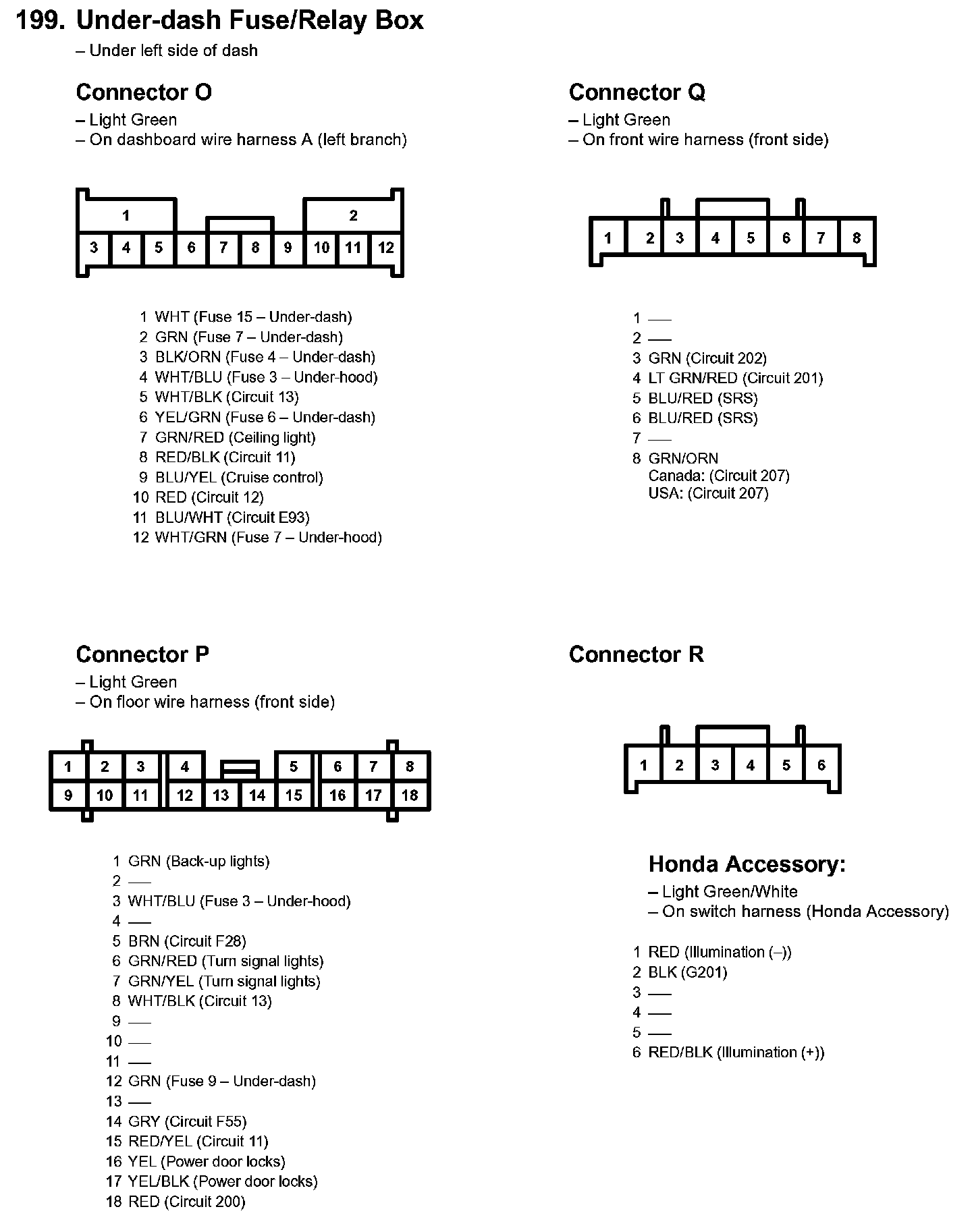

199. Under-dash Fuse/Relay Box Part 5:

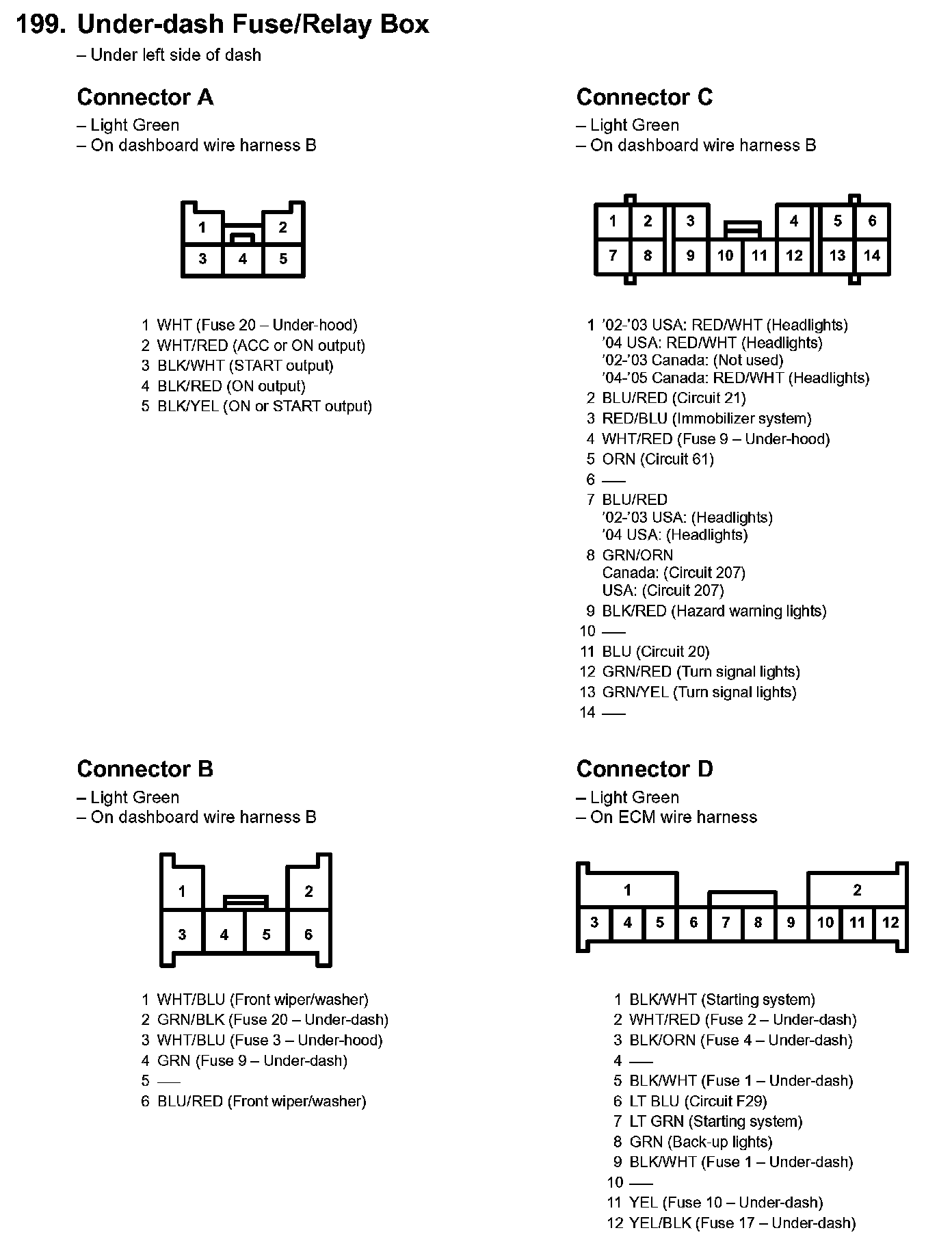

199. Under-dash Fuse/Relay Box Part 6:

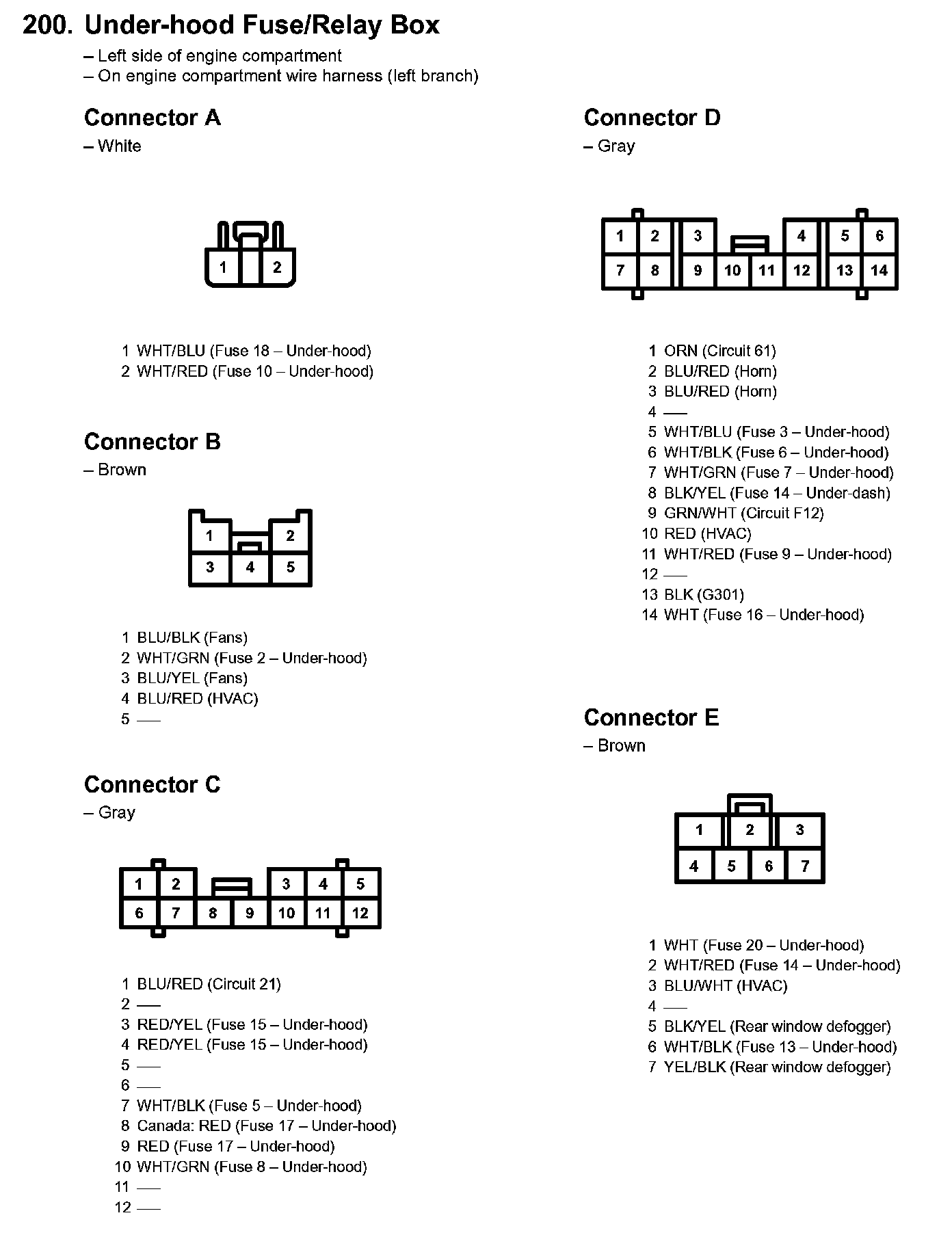

200. Under-hood Fuse/Relay Box:
