Data Link Connector: Locations

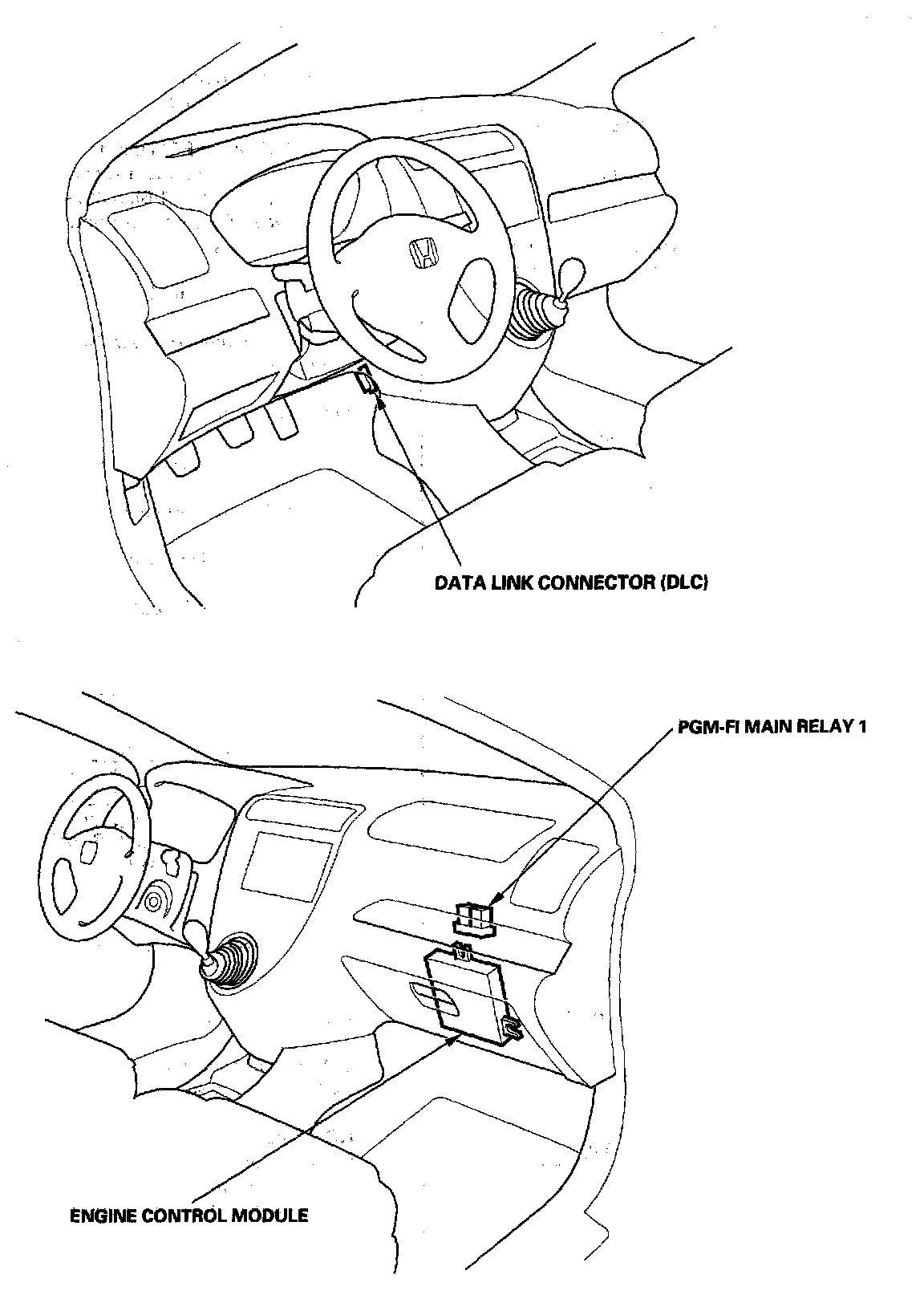

PGM-FI System - Component Location Index:

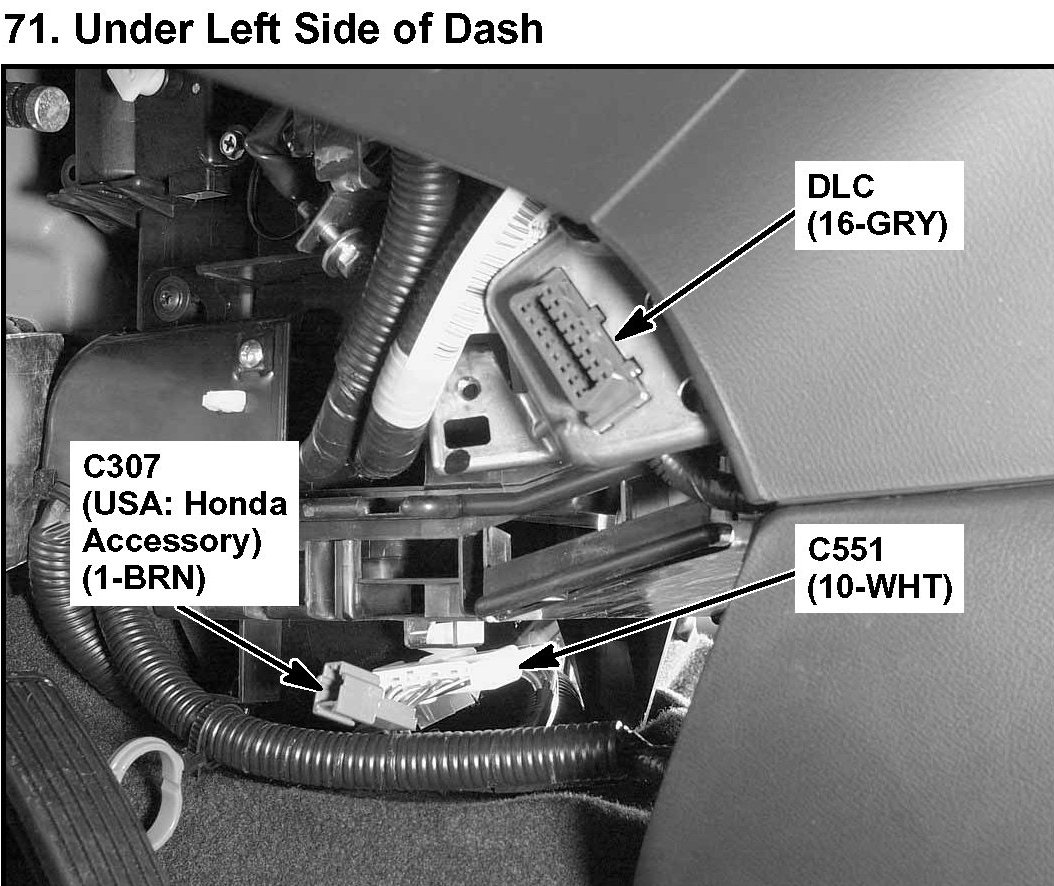

71. Under Left Side of Dash:

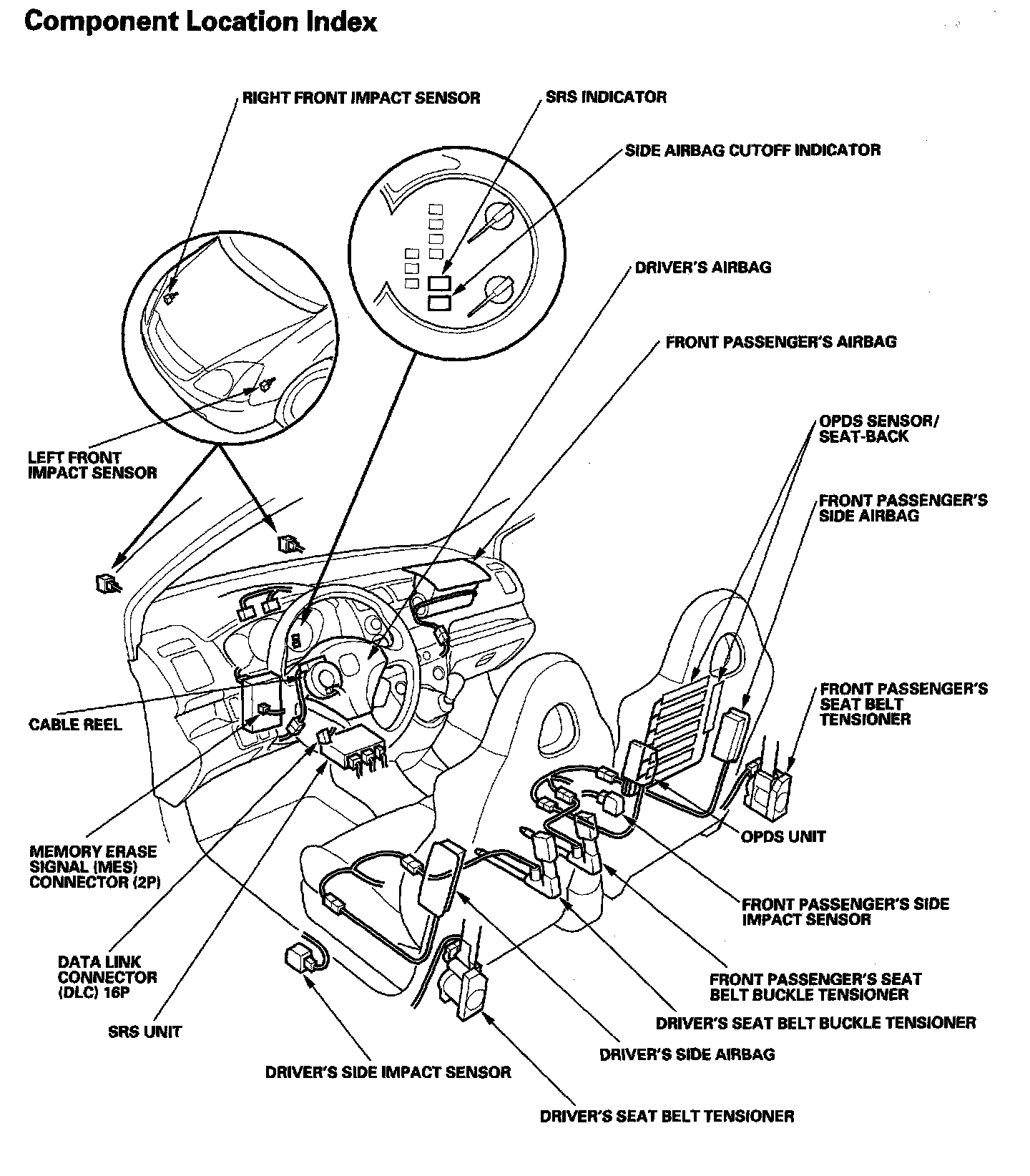

SRS - Component Location Index:
