Master Switch Replacement

Master Switch Replacement

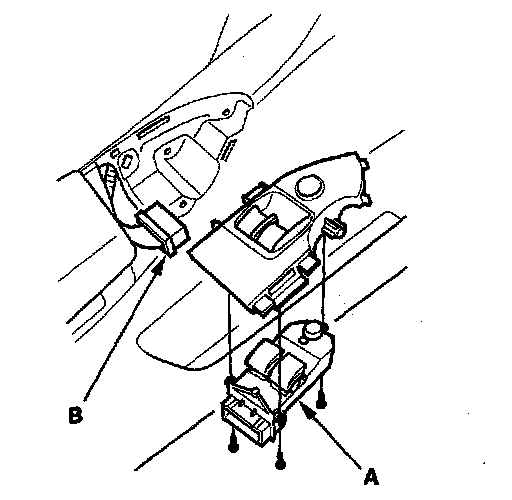

1. Remove the door grip.




2. Remove the power window master switch (A) from the door panel.
3. Disconnect the 14P connector (B) from the switch.
4. Remove the three screws and the switch from the switch panel.
