Cruise Control Set/Resume/Cancel Switch Test/Replacement

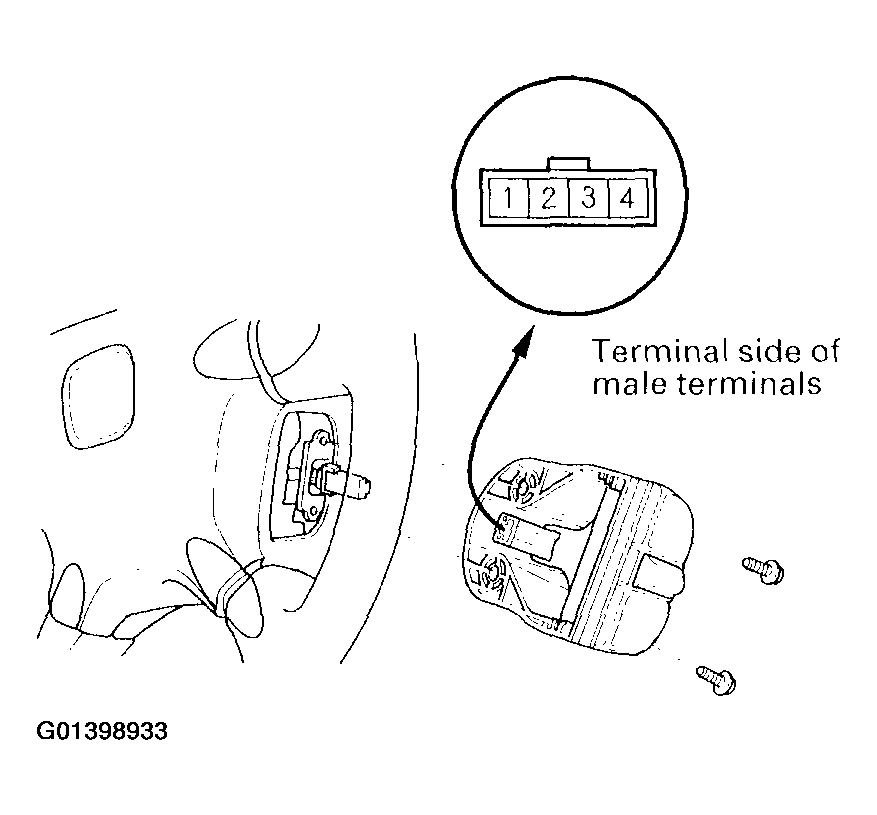

- Remove the two screws, then remove the switch.
Courtesy of AMERICAN HONDA MOTOR CO., INC.

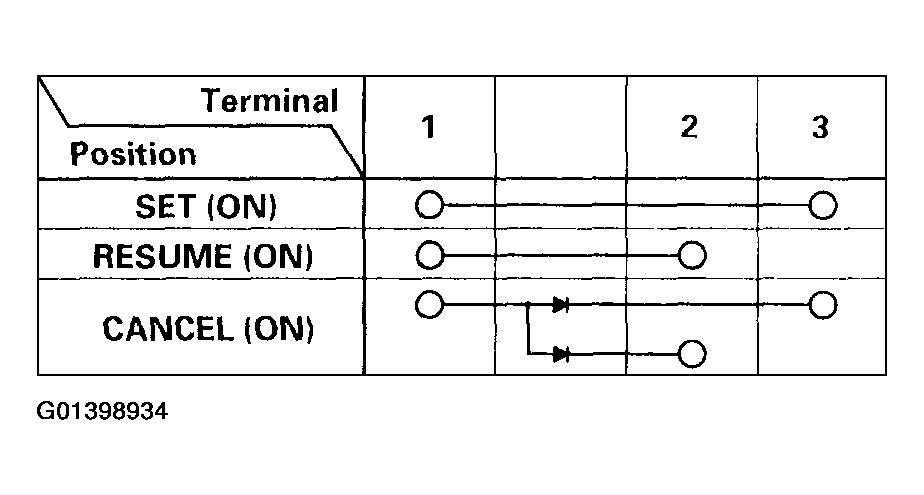

- Check for continuity between the terminals in each switch position according to the table.
- If there is continuity, and it matches the table, but switch failure has occured during the cruise control unit input test, check and repair the switch circuit.
- If there is no continuity in one or both positions, replace the switch.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
