CMP Sensor A Replacement

  1. Remove the air cleaner (see AIR CLEANER REMOVAL/INSTALLATION ).
  2. Disconnect CMP sensor (A) 3P connector.

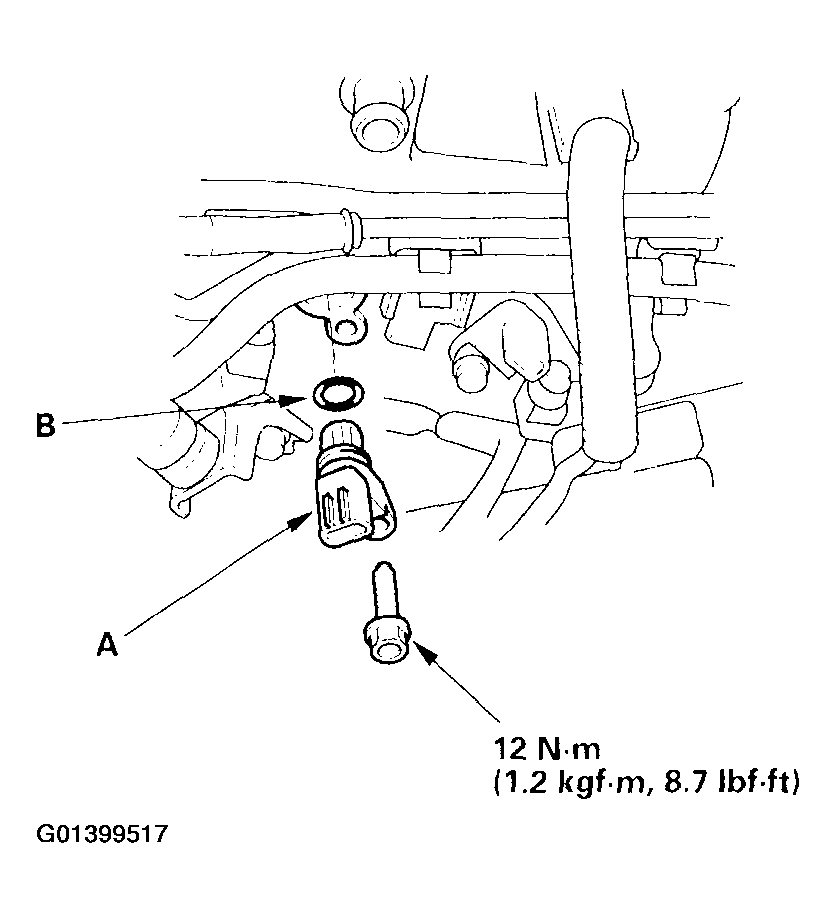

    Fig 1: Disconnect CMP Sensor 3P Connector
    G01399517Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove CMP sensor from the intake camshaft side of the cylinder head.
  4. Install the sensor (A) in the reverse order of removal with a new O-ring (B).
