EPS Control Unit Inputs and Outputs at Connector A (2P)

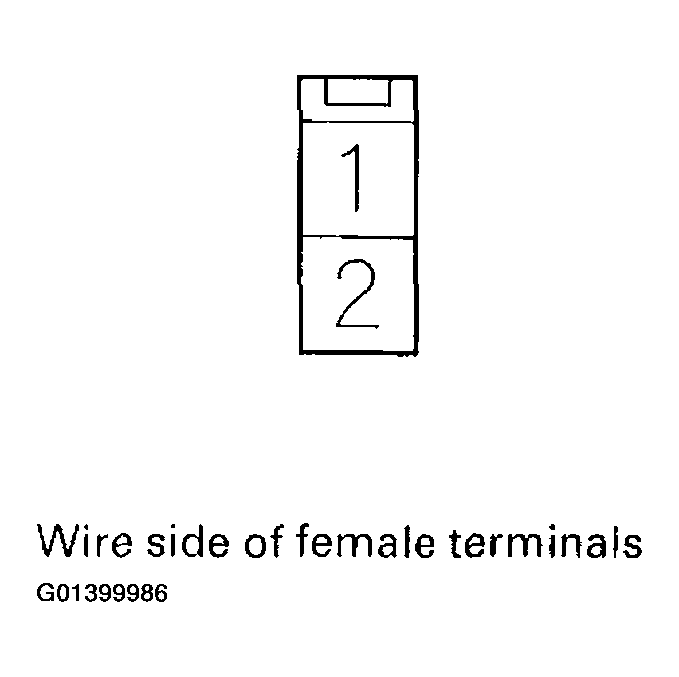

Fig 1: Identifying EPS Control Unit Connector A (2P) Terminals

Courtesy of AMERICAN HONDA MOTOR CO., INC.

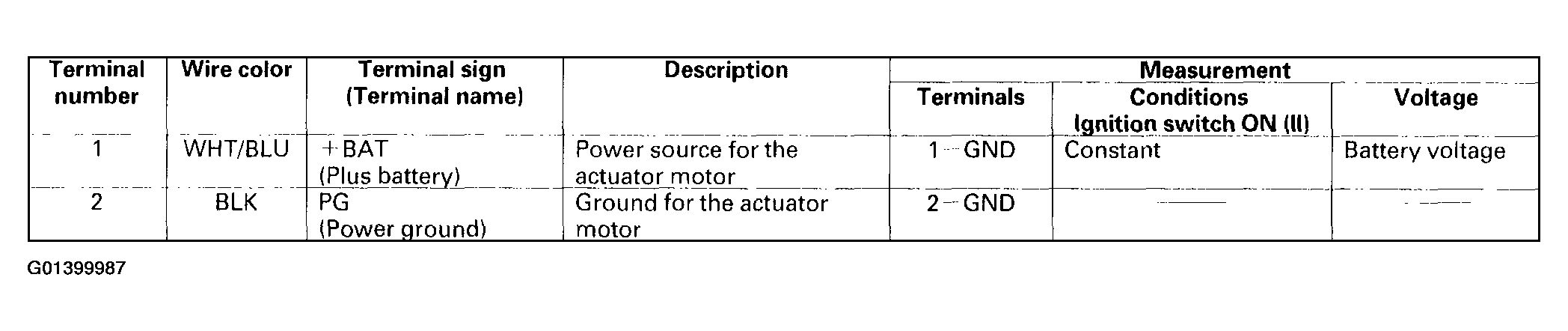

Fig 2: EPS Control Unit Connector A (2P) Pin Voltage Chart

Courtesy of AMERICAN HONDA MOTOR CO., INC.
