Master Switch Replacement

  1. Remove the door grip (see DOOR PANEL REMOVAL/INSTALLATION ).
  2. Remove the power window master switch (A) from the door panel.

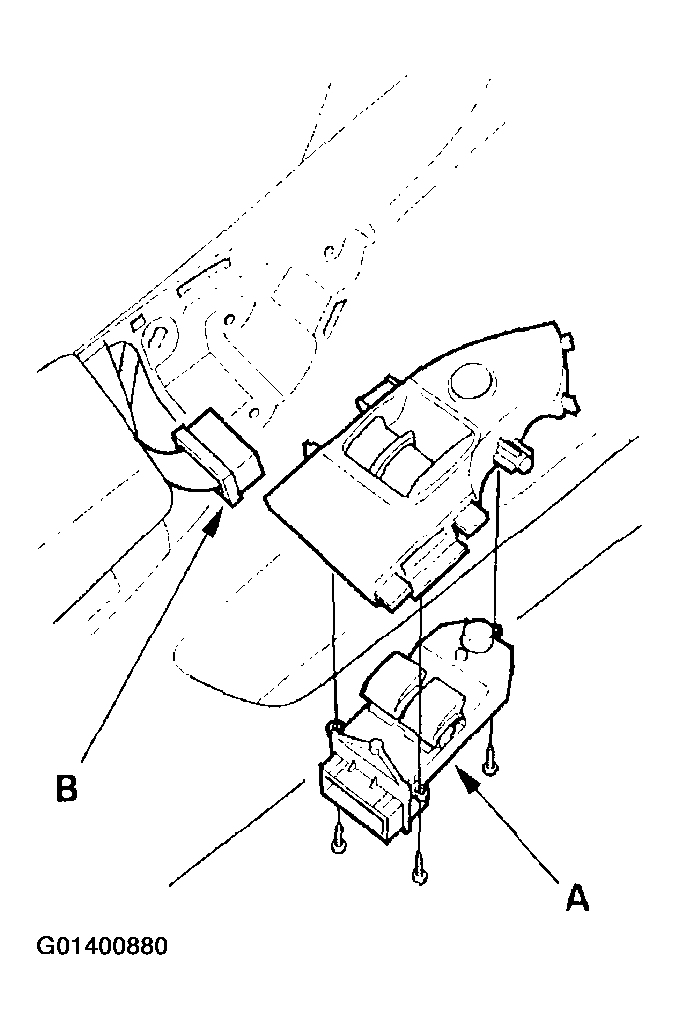

    Fig 1: Removing The Power Window Master Switch From The Door Panel
    G01400880Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Disconnect the 14P connector (B) from the switch.
  4. Remove the three screws and the switch from the switch panel.
