Head Bolt Reuse/Replace

Head Bolt reuse/replace limits

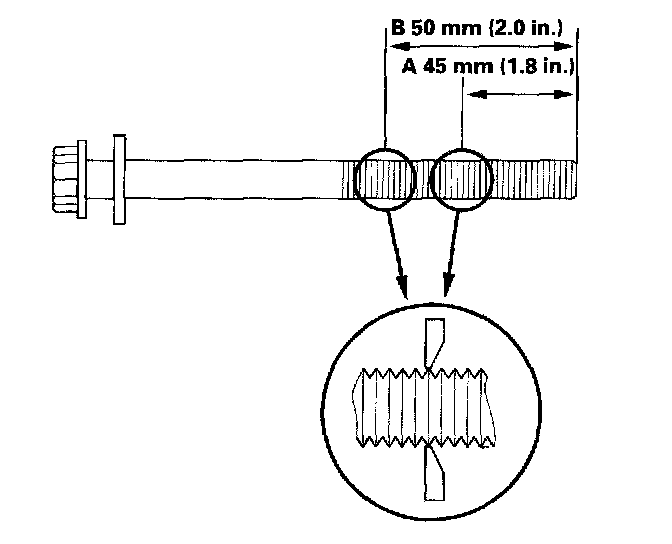

Cylinder Head Bolt Measurement Locations:




If either diameter is less then 10.6 mm (0.42 in) replace the cylinder head bolt
