Fuel Line Inspection

Check the fuel system lines and hoses for damage, leaks, and deterioration. Replace any damaged parts.

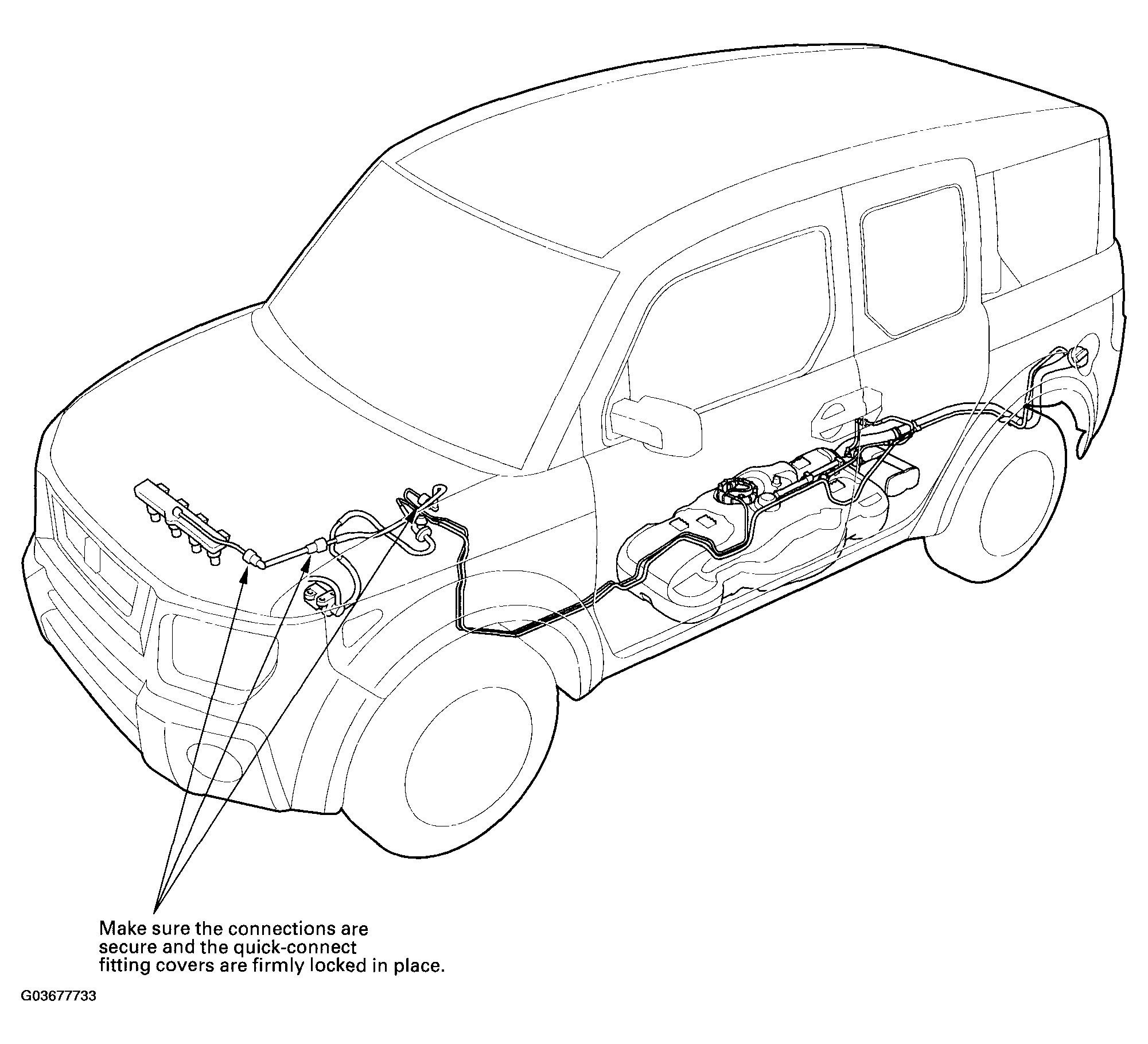

Fig 1: Checking Fuel System Lines And Hoses Damage, Leaks, And Deterioration

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Check all clamps, and retighten any if necessary.

Fig 2: Checking All Clamps, And Retighten

Courtesy of AMERICAN HONDA MOTOR CO., INC.
