IAT Sensor Replacement

  1. Disconnect the IAT sensor connector (A).

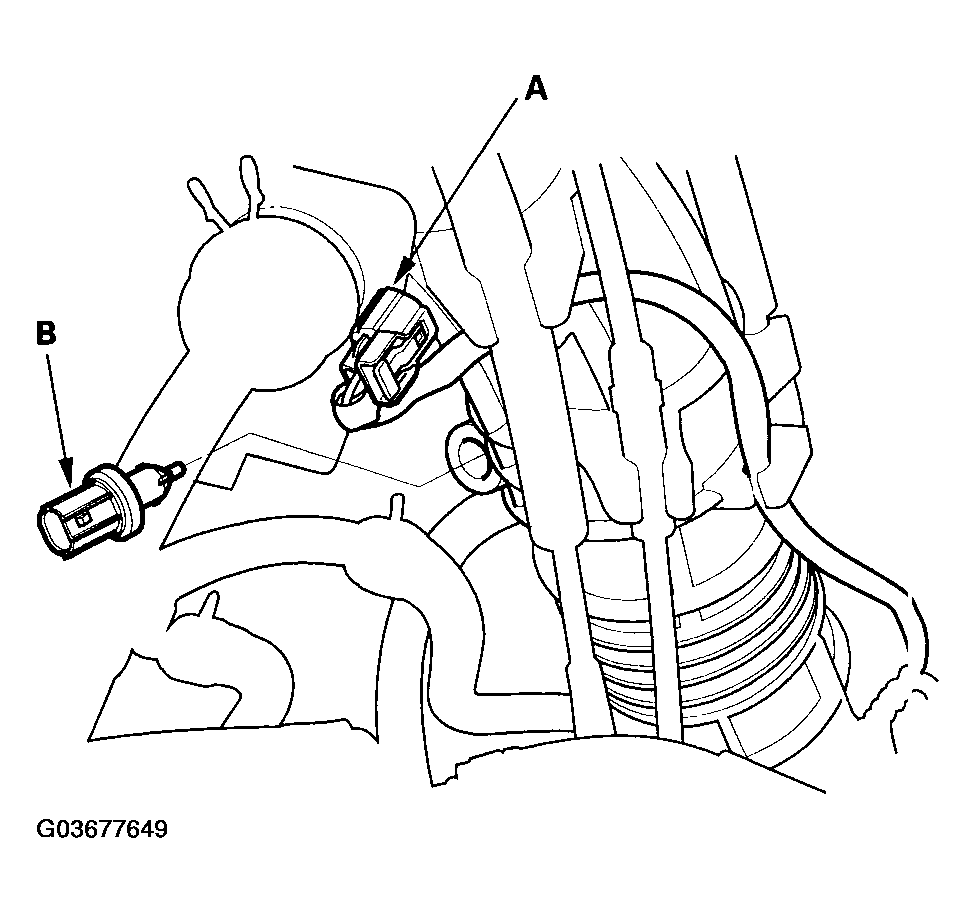

    Fig 1: Disconnecting IAT Sensor Connector
    G03677649Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the IAT sensor (B).
  3. Install the sensor in the reverse order of removal.
