Insight Automatic CVT
>>
Repair and Diagnosis (Single Page)
>>
Transmission
>>
Automatic Trans
>>
Continuously Variable Automatic Transmission (CVT)
>>
CVT
>>
System Description
>>
Electronic Control System
>>
TCM Electrical Connection
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
TCM Electrical Connection

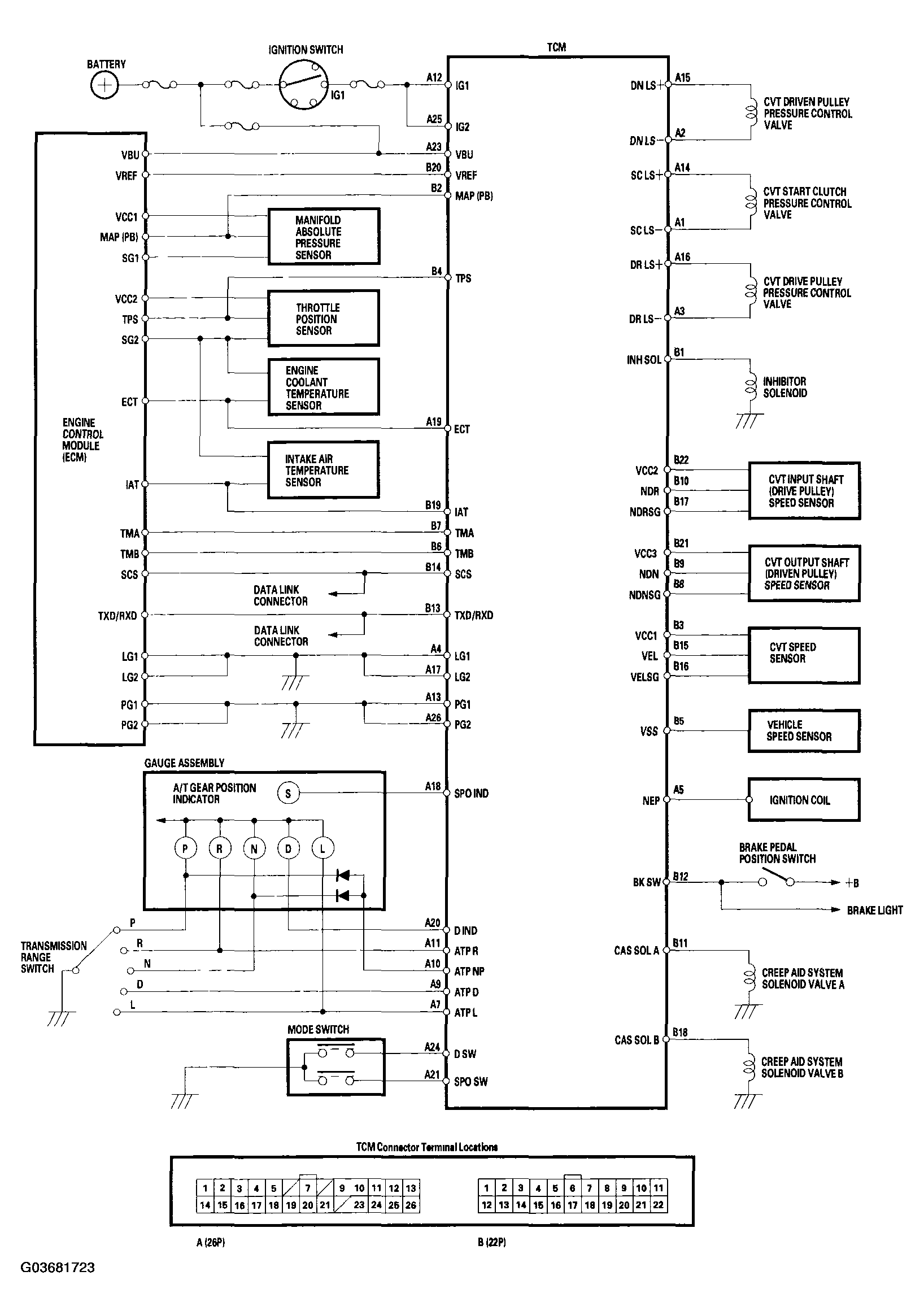

Fig 1: TCM Electrical Connection Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
