Power Seat Control Module: Locations

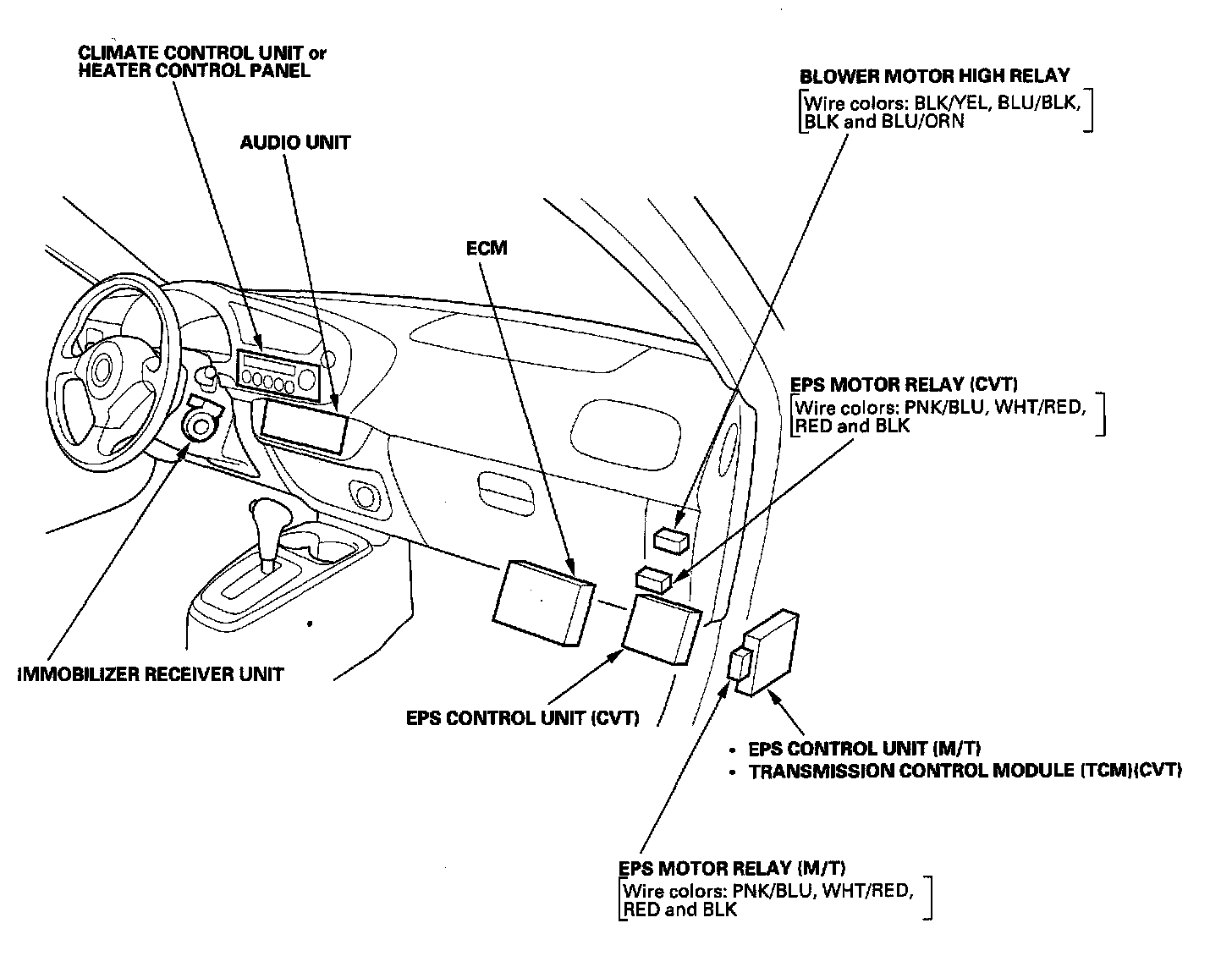

Relay And Control Unit Locations - Dashboard:

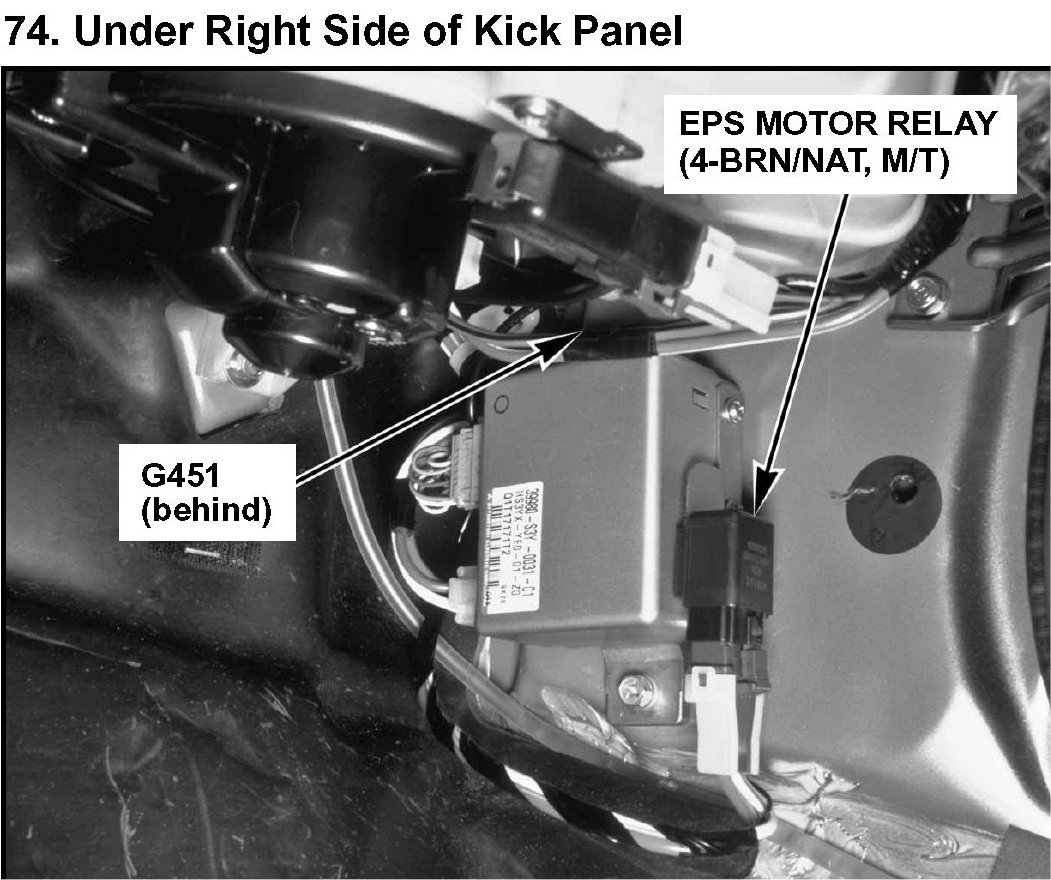

74. Under Right Side of Kick Panel:

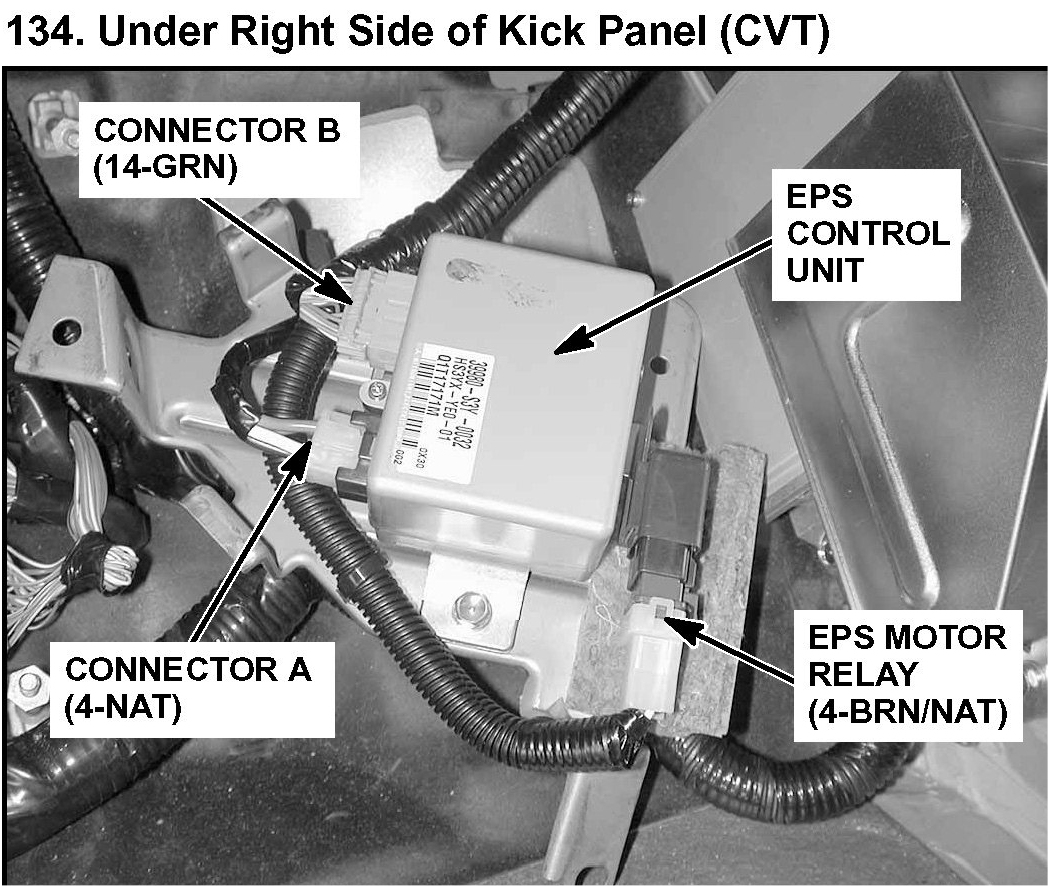

134. Under Right Side of Kick Panel (CVT):
