Audio Unit Connector Inputs and Outputs

When replacing an audio unit connector, match the wires to the cavities listed in the following table. Cavity 1 is not used.

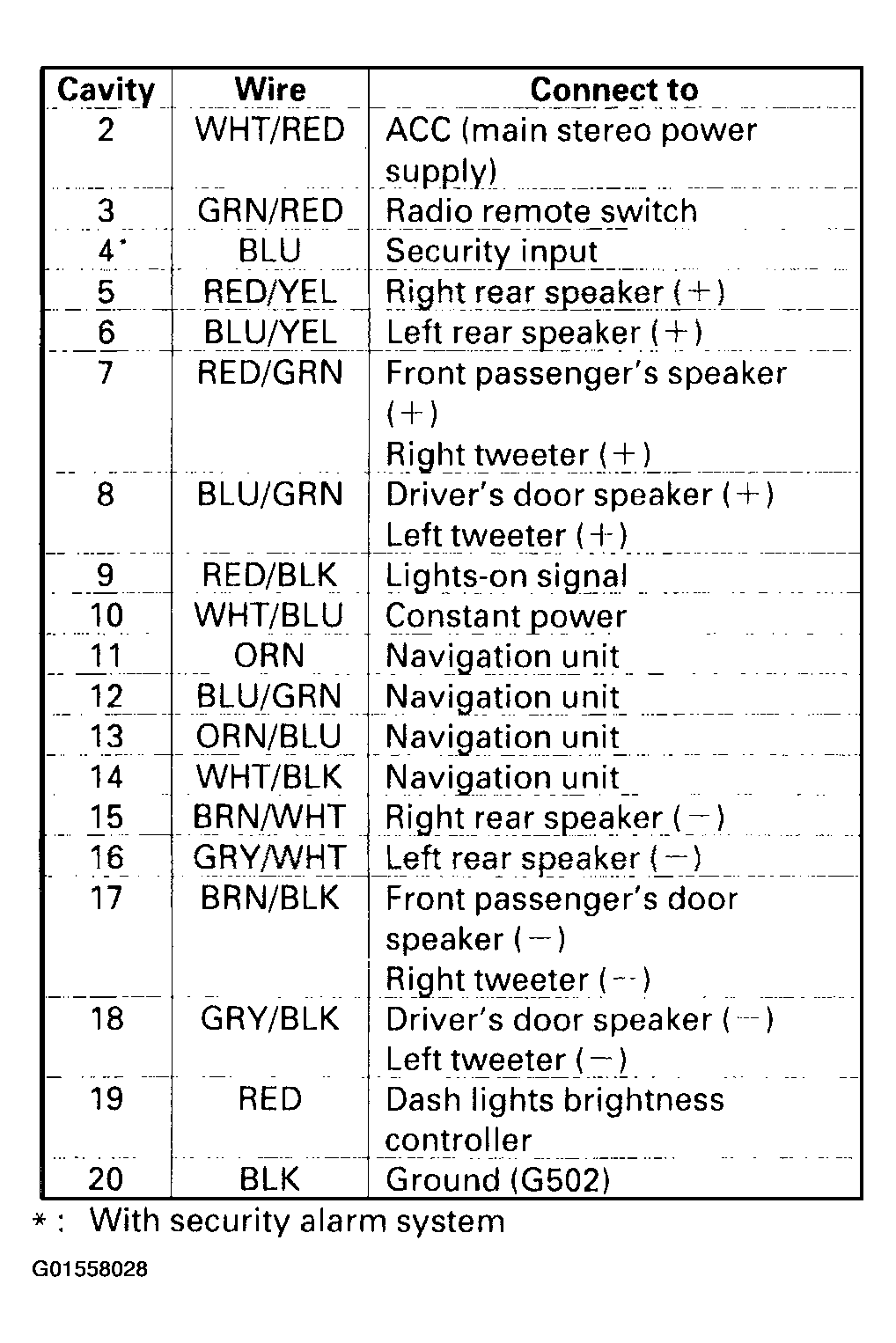

Fig 1: Audio Unit Connector Inputs & Outputs Table

Courtesy of AMERICAN HONDA MOTOR CO., INC.

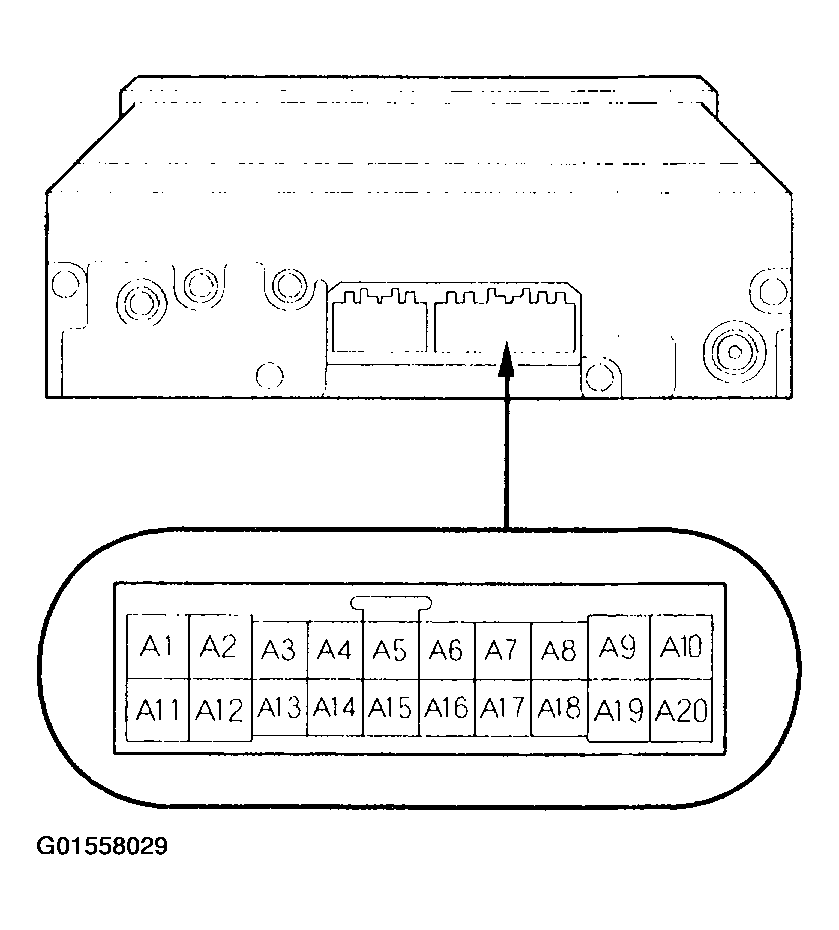

Fig 2: Identifying Audio Unit Connector Terminals

Courtesy of AMERICAN HONDA MOTOR CO., INC.
