Removal and Installation

Heater Control Panel Removal and Installation

1. Remove the center panel with the heater control panel.

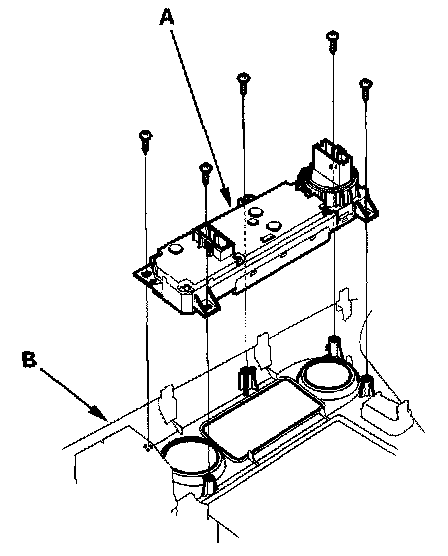

2. Remove the self-tapping screws and the heater control panel (A) from the center panel (B).
3. Install the control panel in the reverse order of removal. After installation, operate the control panel controls to see whether it works properly.
4. Run the self-diagnosis function to confirm that there are no problems in the system.
