Crankshaft Position Sensor: Service and Repair

CKP Sensor Replacement

1. Remove the alternator-compressor belt.
2. Loosen the adjusting nut, locknut and mounting bolt, then remove the Power Steering (P/S) pump belt (see step 6).
3. Remove the dipstick and tube (see step 9).
4. Remove the crankshaft pulley.
5. Remove the upper and lower covers (see step 12).

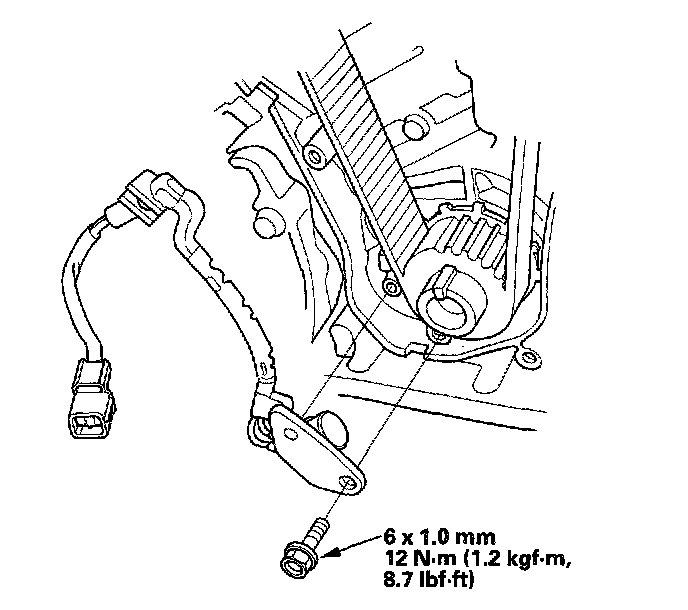

6. Remove the Crankshaft Position (CKP) sensor from the oil pump.
7. Install the CKP sensor in the reverse order of removal.
