Radiator Cooling Fan Control Module: Locations

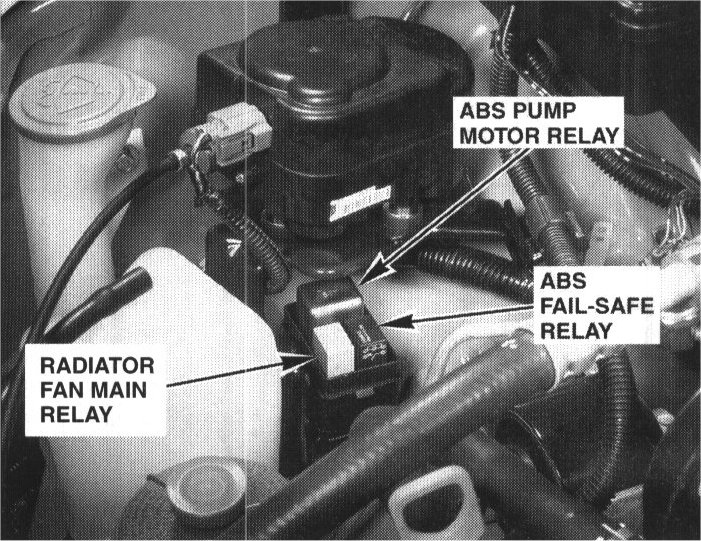

21. Right Side Of Engine Compartment:

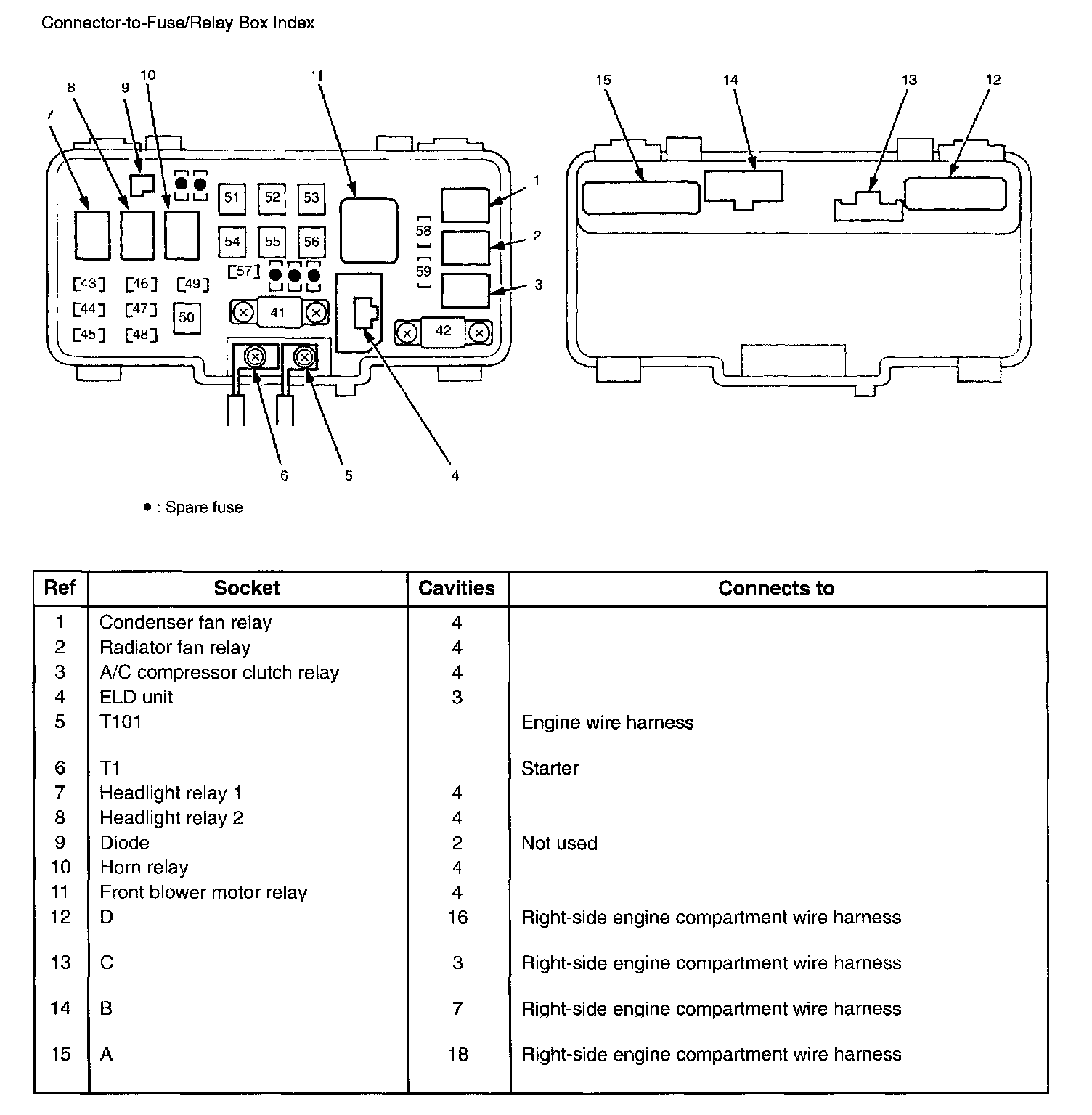

Under-hood Fuse/Relay Box:

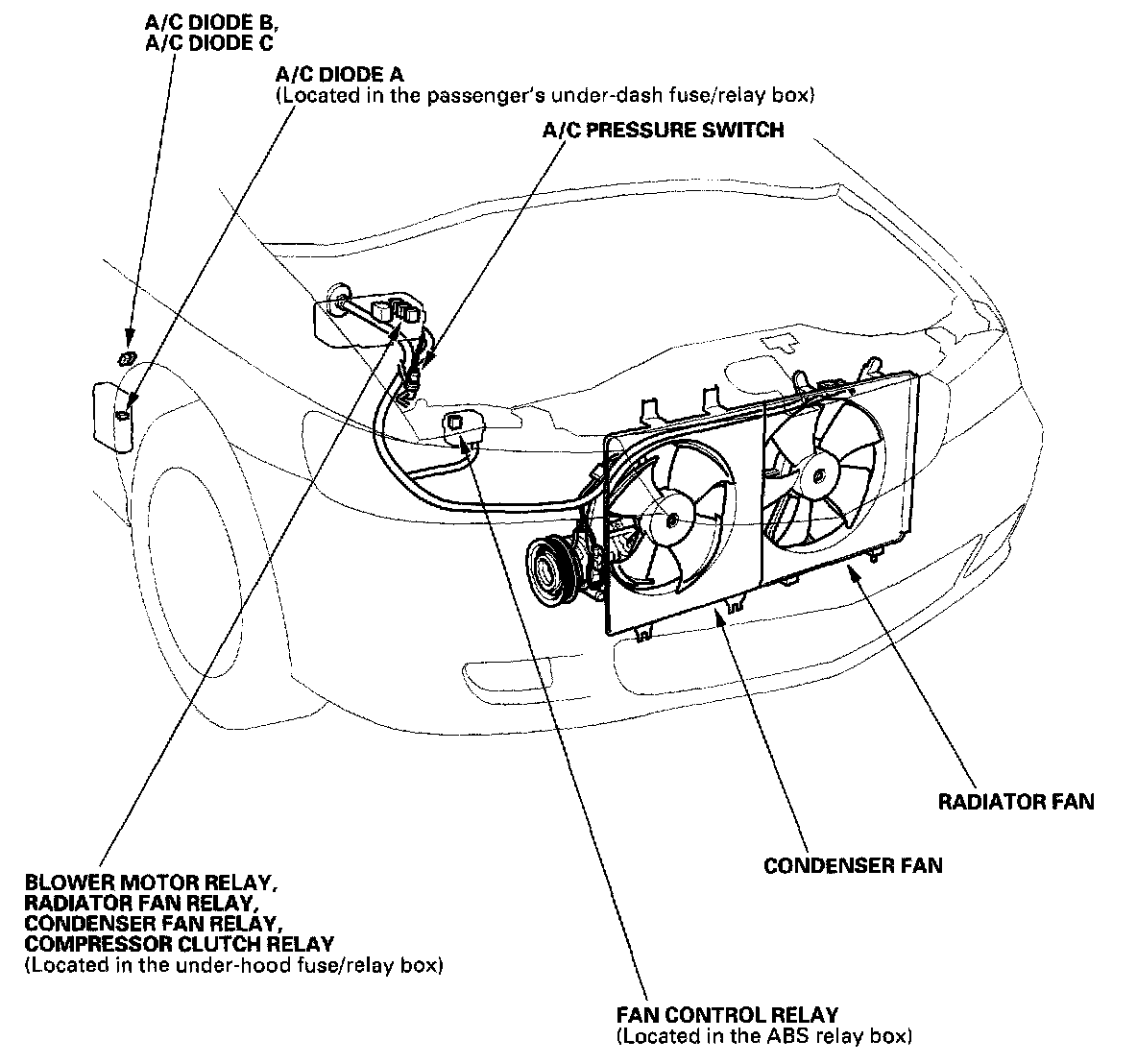

Heating And Air Conditioning Component Location Index:

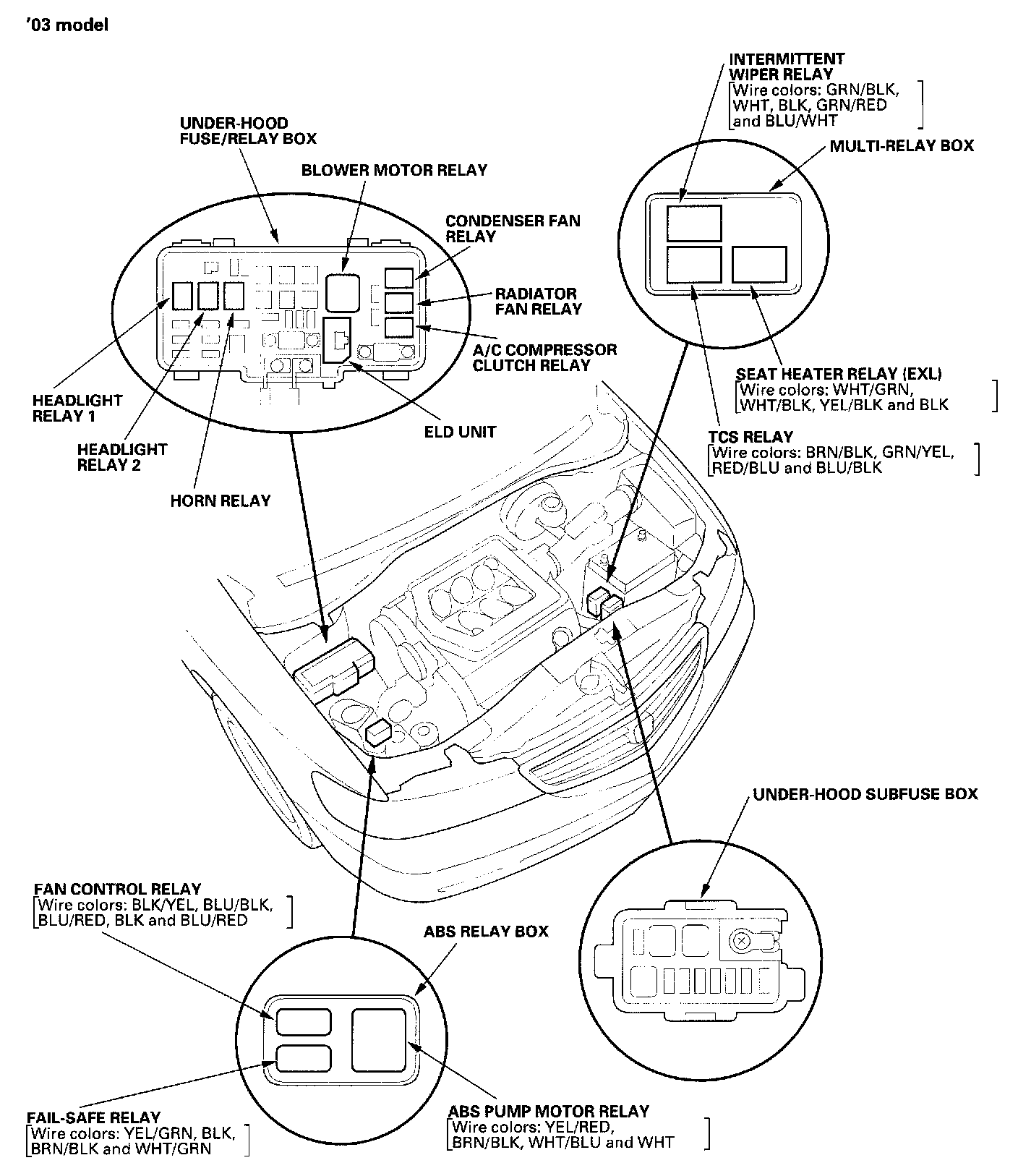

Relay And Control Unit Locations - Engine Compartment:



Relay And Control Unit Locations - Engine Compartment:
