Audio Unit Connector Inputs & Outputs (LX model)

When replacing an audio unit connector, match the wires to the cavities listed in the following table.

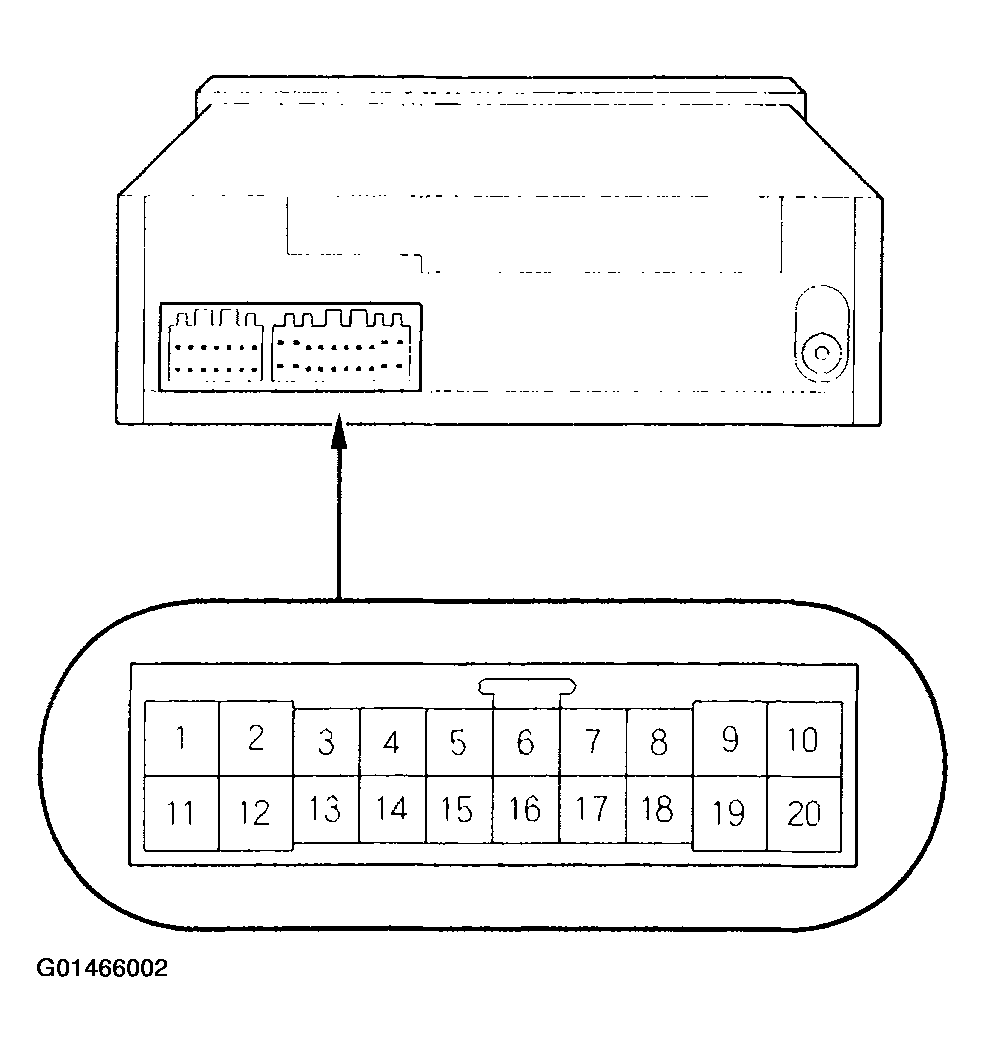

Fig 1: Identifying Audio Connector A

Courtesy of AMERICAN HONDA MOTOR CO., INC.

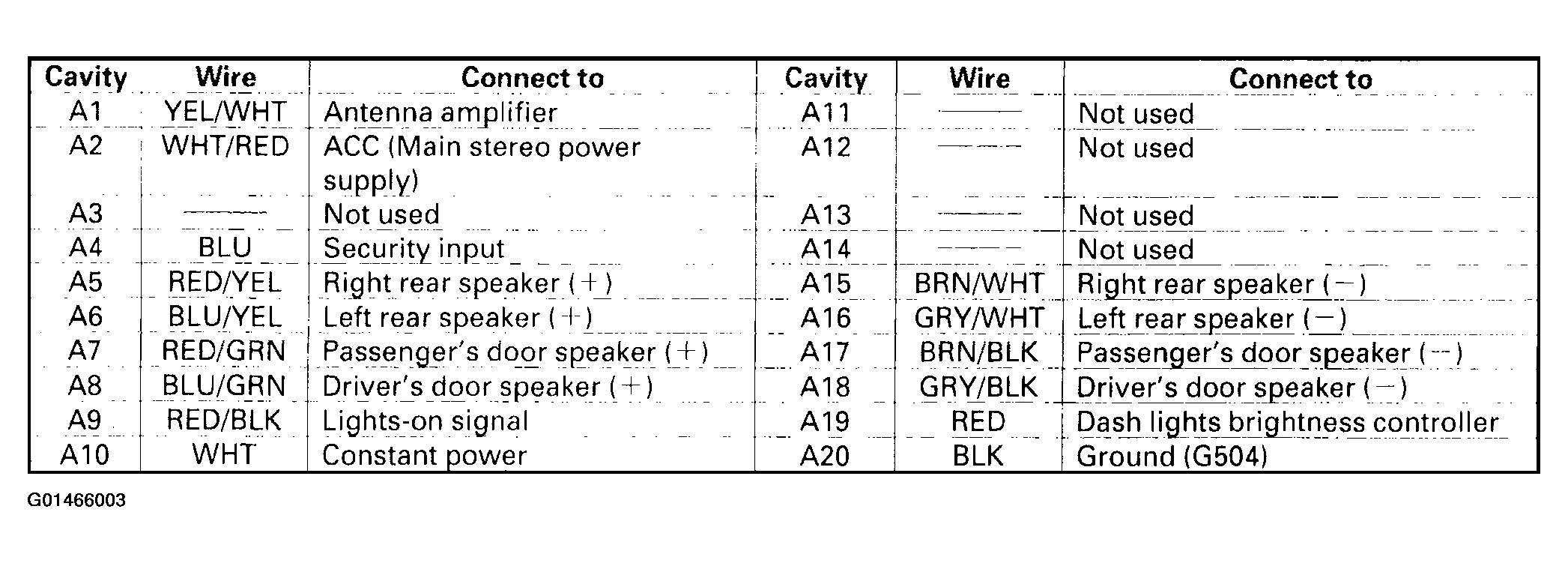

Fig 2: Audio Connector A Inputs & Outputs Table

Courtesy of AMERICAN HONDA MOTOR CO., INC.
