Circuit Diagram (Entry Light Control System)

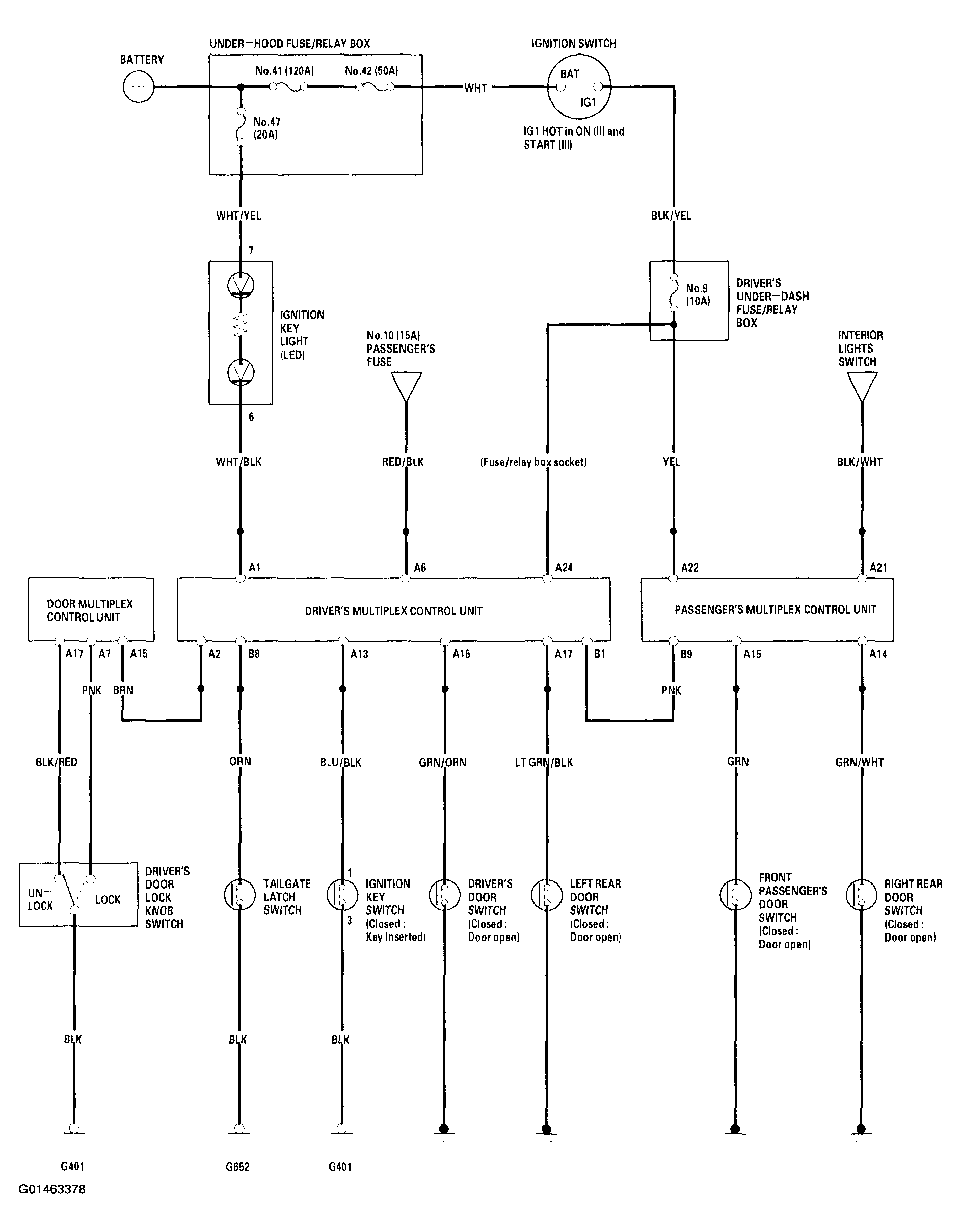

Fig 1: Entry Light Control System Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
